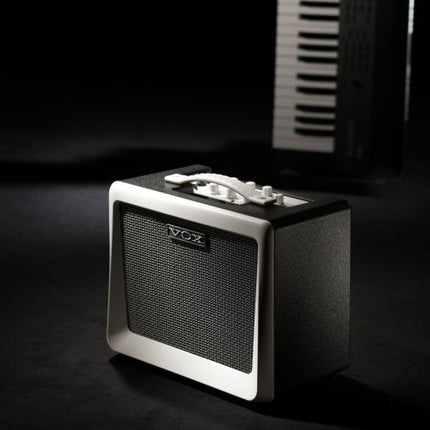

The compact and lightweight VX series amplifiers are combined with the new vacuum tube Nutube in a 50-watt model for keyboards. With a coaxial speaker that provides clear sound output even in the high frequency range and a bass reflex structure that produces a very powerful, rich low-frequency sound, these amplifiers deliver high-quality sound from a compact and lightweight unit. The three-channel design provides independent volume control for each channel, and the CH3 also supports microphone input. This amplifier can also be used as a simple and easily portable PA system. A full range of input/output jacks are provided, including an AUX IN input, a headphone input and a LINE OUT output for connection to a PA system. This amplifier is also ideal for on-stage use as a monitor amplifier.


Revolutionary light weight and high 50W output power from a compact unit.
The sound of Nutube's hot vacuum tube.
The eight-inch coaxial speaker offers a high degree of freedom of expression.
The bass reflex structure produces rich low frequency sounds.
Three-channel design with independent volume controls.
Three-band master EQ for flexible control of sound.
The CH3 input is switchable between LINE/MIC and has a PHASE switch.
A rich selection of input/output including AUX input, PHONES output and LINE output.

Technical Specifications

Login/login:

Input CH1: 1/4" phone jack (unbalanced)

Input CH2: 1/4" phone jack (unbalanced)

Input CH3: 1/4" phone jack (unbalanced) can be used as mic/line

AUX IN: 1/8" stereo mini phone jack

LINE OUT: 1/4 "phone jack (unbalanced)

Headphone: 1/8" stereo mini phone jack


Lamp: Nutube 6P1

Equalizer:


BASS: ±10dB@100Hz

MIDDLE: ±10dB@700Hz

TREBLE: ±10dB@10kHz


Output power: Maximum average 50Watts RMS



Speaker: VOX Original 8” tweeter speaker (2-way coaxial)



Power Source: AC adapter (DC 19V)



Power consumption: 3.42A



Dimensions (W x D x H): 354mm × 208mm × 313mm / 13.94" × 8.19" × 12.32"



Weight: 4.1kg / 9.04lbs.

Included items: AC adapter (DC 19V), power cord
