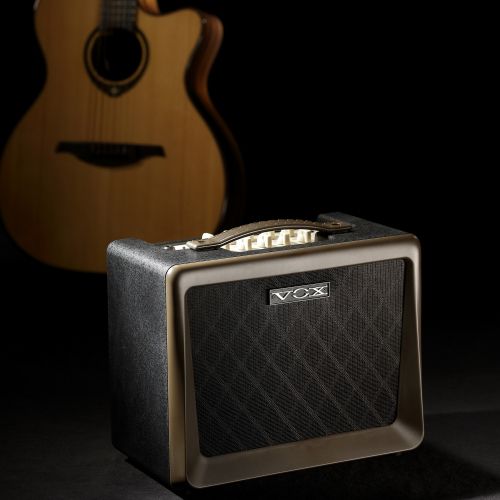

The compact and lightweight VX series amplifiers have been combined with the new vacuum tube Nutube in a 50-watt model for acoustic guitar. It delivers a beautiful, rich sound that covers everything from detailed nuances to powerful impacts, with an uncolored, honest and flat sound. It also provides a microphone input, so it can be easily transported to a live event for solo use. It is also useful as an on-stage monitor. The color options include organic earth.
Revolutionary light weight and high 50W output power from a compact unit. The sound of Nutube's hot vacuum tube. The eight-inch coaxial speaker offers a high degree of freedom of expression. The bass reflex structure produces rich low frequency sounds. Its dual-channel design with Instrument and Microphone channels is equipped with independent volume controls. Independent EQ and high-quality effects allow for detailed shaping of the sound. Microphone input provides phantom power, ideal for vocalists The PHASE switch minimizes acoustic feedback. A rich selection of input/output including AUX input, PHONES output and LINE output.
Technical Specifications
Login/Logout:
INSTRUMENT: 1/4” phone jack (unbalanced)
MICROPHONE: XLR jack (balanced)
AUX IN: 1/8” stereo mini phone jack
LINE OUT: 1/4” phone jack (unbalanced)
HEADPHONE: 1/8” stereo mini phone jack
Phantom power: +15V
Lamp: Nutube 6P1
Effects:
Instrument channel: CHORUS, REVERB, CHORUS+REVERB
Microphone channel: REVERB
Equalizer:
Instrument channel:
BASS: ±10dB@100Hz
MIDDLE: ±12dB@700Hz
TREBLE: ±10dB@10kH
Microphone channel:
BASS: ±10dB@170Hz
TREBLE: ±10dB@7kHz
Output power: Maximum average 50Watts RMS
Speaker: VOX Original 8” tweeter speaker (2-way coaxial)
Power Source: AC adapter (DC 19V)
Power consumption: 3.42A
Dimensions (W x D x H): 354mm × 208mm × 313mm / 13.94" × 8.19" × 12.32"
