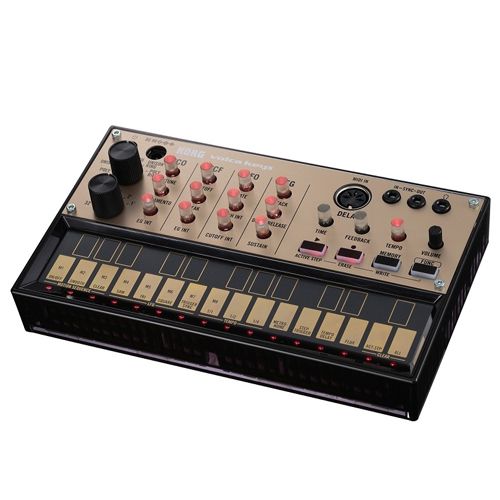

Volca Keys - Analog Loop Synthesizer

Enough – simple, powerful – loop sequencer with polyphonic analog sound engine.

The long-awaited polyphonic synthesizer.

• Three-note true analog synthesis
• With the vibration function, everyone can produce sound.
• Even more sonic possibilities with the delay effect

Simple loop sequencer

• The loop sequencer allows you to record loops as you play them, allowing you to play over them as they play.
• Motion Sequencer allows you to record button movements live (real time)
• Active Step and Flux functions allow you to add dynamic changes to loops

Easy-to-use functions

• Self-tuning function for continuous and stable tone
• Sync In and Out allow you to connect another KORG product to the Volca, providing clock sync, e.g. Monotribe.
• Portable size, battery operation and built-in speaker allow you to work anywhere you want

With the long-awaited Volca Keys, KORG has added a new chapter to the analog synthesizer story. This 27-key analog lead synthesizer is capable of producing incredibly powerful sounds. First, let's talk about the circuitry used in the legendary mini KORG700S (1974) in the filter section, and the astonishing sounds it produces give us a sense of KORG's more than half a century of circuit design expertise.
With its delay effect and the simple structure of the sequencer, it is also the ideal choice for the first (starting) analog synthesizer. Thanks to its rich and expressive sounds, the recommended analog approach allows you to produce deep sounds in a pleasant way. The possibilities are endless: you can play chords using the three oscillators, or use these chords in unison and detune them at the same time to produce the main line of the piece, or use the ring mode to obtain unusual metallic tones.

FEATURES

Keyboard
Multi-touch Keyboard

Synthesizer
Medicine :
Analogue

Maximum Polyphony:
3 voices

Structure:
3VCO, 1VCF, 1VCA, 1LFO, 1EG

VCO:
Octave, Ring Modulation, De-tuning, Portamento, EG Intensity

VCO Waves:
Sawtooth, Square

VCF:
Cutoff, Peak, EG Intensity

VCF Type:
Low Pass Filter, 12dB/oct

LFO:
Rate, Pitch Int, Cutoff Int, Wave (Sawtooth, Triangle, Square)

EG:
Attack, Decay/Release, Sustain

Effects:
Delay: Time, Feedback, Temp Sync

Sequencer
Number of Parties:
1

Number of steps:
16

Number of Saved Patterns:
8

Connectors
Audio Output:
Headphone (1/8” stereo mini jack)

Sync:
Sync input (1/8” mono mini jack, Maximum input level: 20V)
Sync output (1/8” mono mini jack, Maximum output level: 5V)

MIDI:
Entrance

Strength
Power supply:
6 AA alkaline or AA nickel-metal hydride batteries
or KA-350 AC adapter (optional)

Battery Life:
Approx. 10 hours (alkaline battery)

Dimensions (L x W x H)
193×115×46mm
Weight
377g (excluding batteries)

Other
Options:
KA-350 AC adapter

Accessory:
AA alkaline battery ×6 (for testing)


* Specifications and appearance are subject to change without notice
