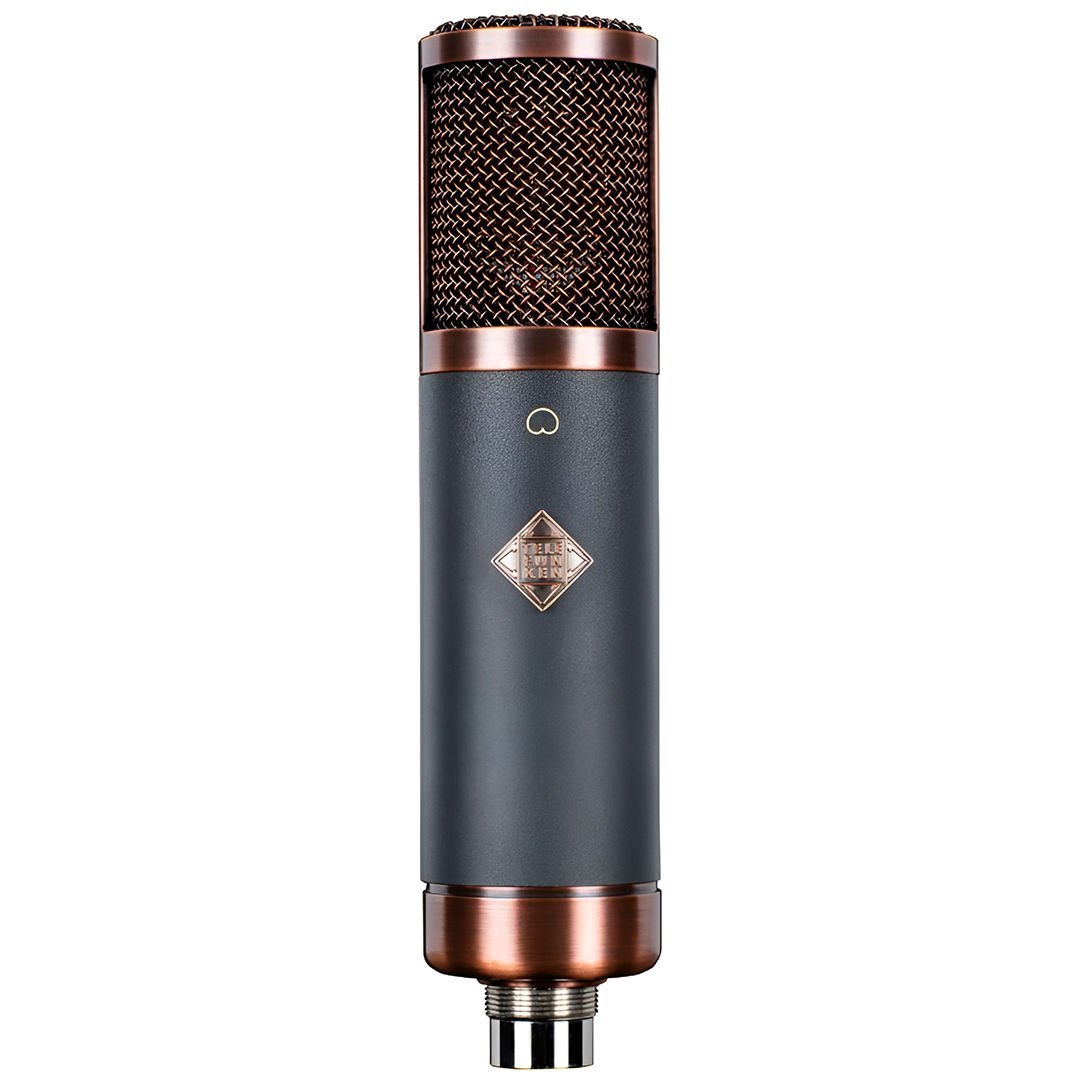

Telefunken TF29 Copperhead Large-Diaphragm Tube Condenser Microphone ( Cardioid) The TF29 Copperhead is the evolution of the CU-29 Copperhead, an...
Devamını okuDevamını oku
The TF29 Copperhead is the evolution of the CU-29 Copperhead, an original TELEFUNKEN Elektroakustik design that has garnered fans for its natural, understated tonality, unparalleled price and performance. A powerful microphone that accurately and honestly captures vocals, acoustic and electric guitars, drums and almost any source put in front of it!
Circuit design The TF29 features a new old-stock American-made 5654W vacuum tube, a K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF29 a reliable choice.
Main Features •Hand-designed and assembled in the USA • A pleasant and natural mid range • Extended low frequency response • Antique copper plating • First class EU made Lundahl transformer
Areas of use • Natural vocals, bluegrass, folk and Americana styles • Electric guitar • Drums: Kick Out, Overheads and Room • Saxophone • Upright piano • Banjo
Sound Comparison
Hear the different sounds of the Alchemy Microphone Series; the "Copperhead" sound of the TF29 and TF39, the "German" TF47 and the "Austrian" TF51. Compare the sonic characteristics of each sound in classic studio uses such as overheads, guitar cabinets and vocals.

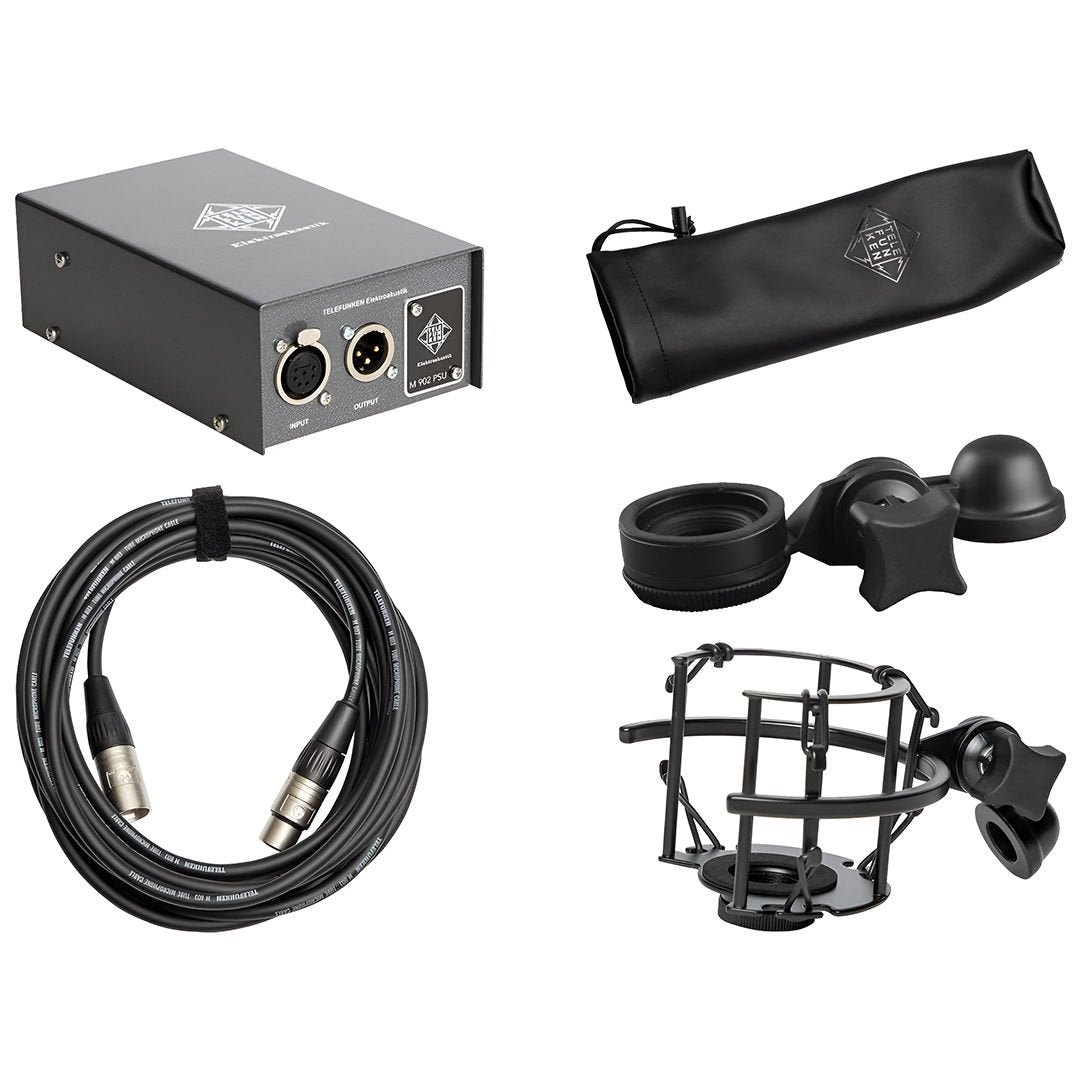

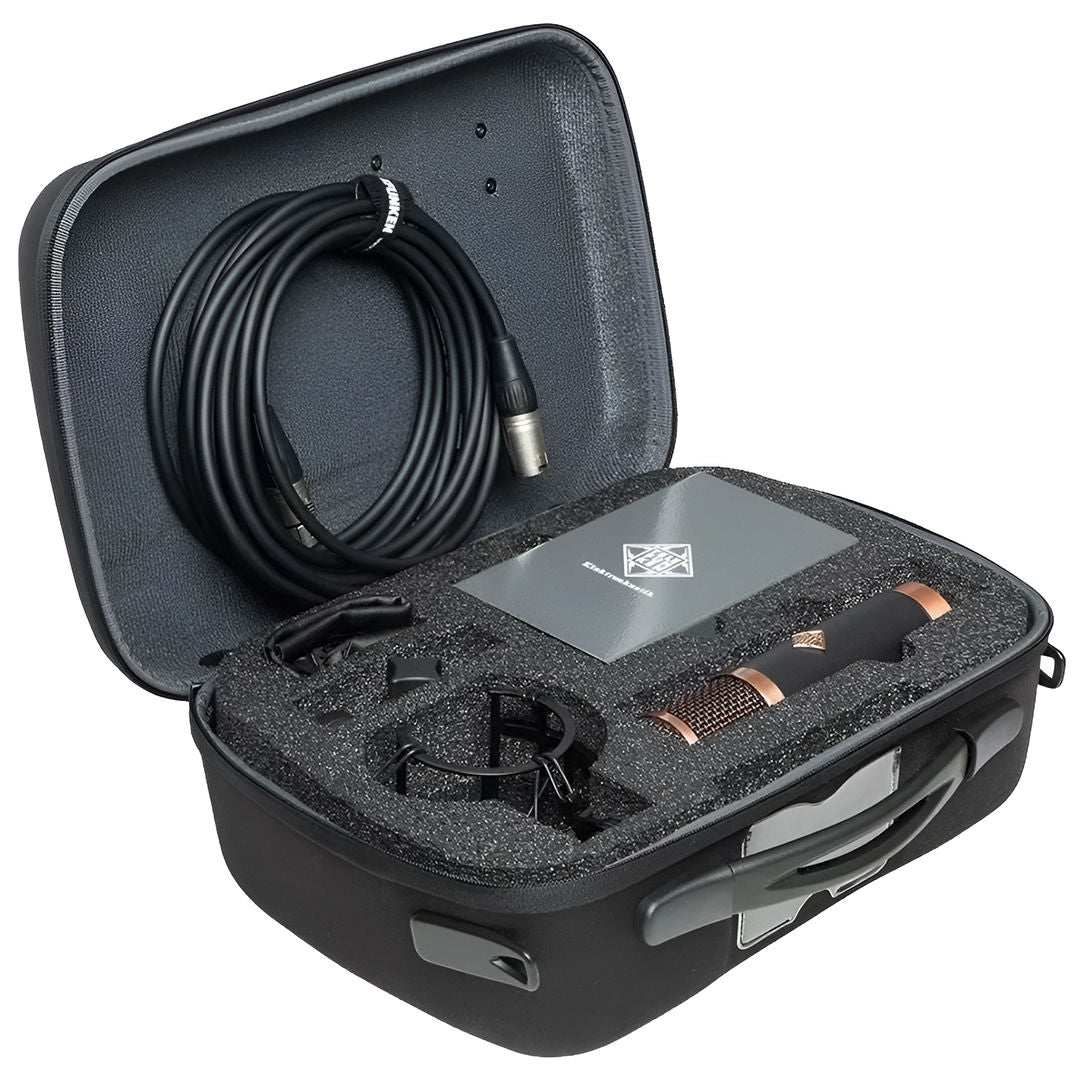

Accessories Each TF29 Copperhead microphone system comes with a fixed pattern M 902 Power Supply, M 803 Tube Microphone Cable, ZC03 Case, M 703 Shock Mount, M 782 Stand Bracket and Microphone Case.
Technical specifications •Type:Vacuum Tube Condenser • Polar Pattern: Cardioid • Frequency Range: 20 Hz - 20 kHz, ± 3 dB • Power Supply: External Power Supply • Capsule: TK67S Center End Large Diaphragm, Single Membrane • Tube: NOS GE 5654W • Transformer: Lundahl LL1935 • Sensitivity: 17 mV / Pa, ± 1 dB • THD at 1 kHZ at 1Pa (Amplifier): <0.3% • Output Impedance: <300 Ω • Maximum SPL (for 1% THD): 130dB • S / N Ratio: 87 dBA • Noise (Amplifier): 7 dBA • Dimensions: 200 mm L x 46 mm Dia • Weight: 650 g • Included Accessories: Tube Microphone Cable, Power Supply, Shock Mount, Stand, Microphone Case, Carrying Bag
Accessories Each TF29 Copperhead microphone system comes with a fixed pattern M 902 Power Supply, M 803 Tube Microphone Cable, ZC03 Case, M 703 Shock Mount, M 782 Stand Bracket and Microphone Case.
