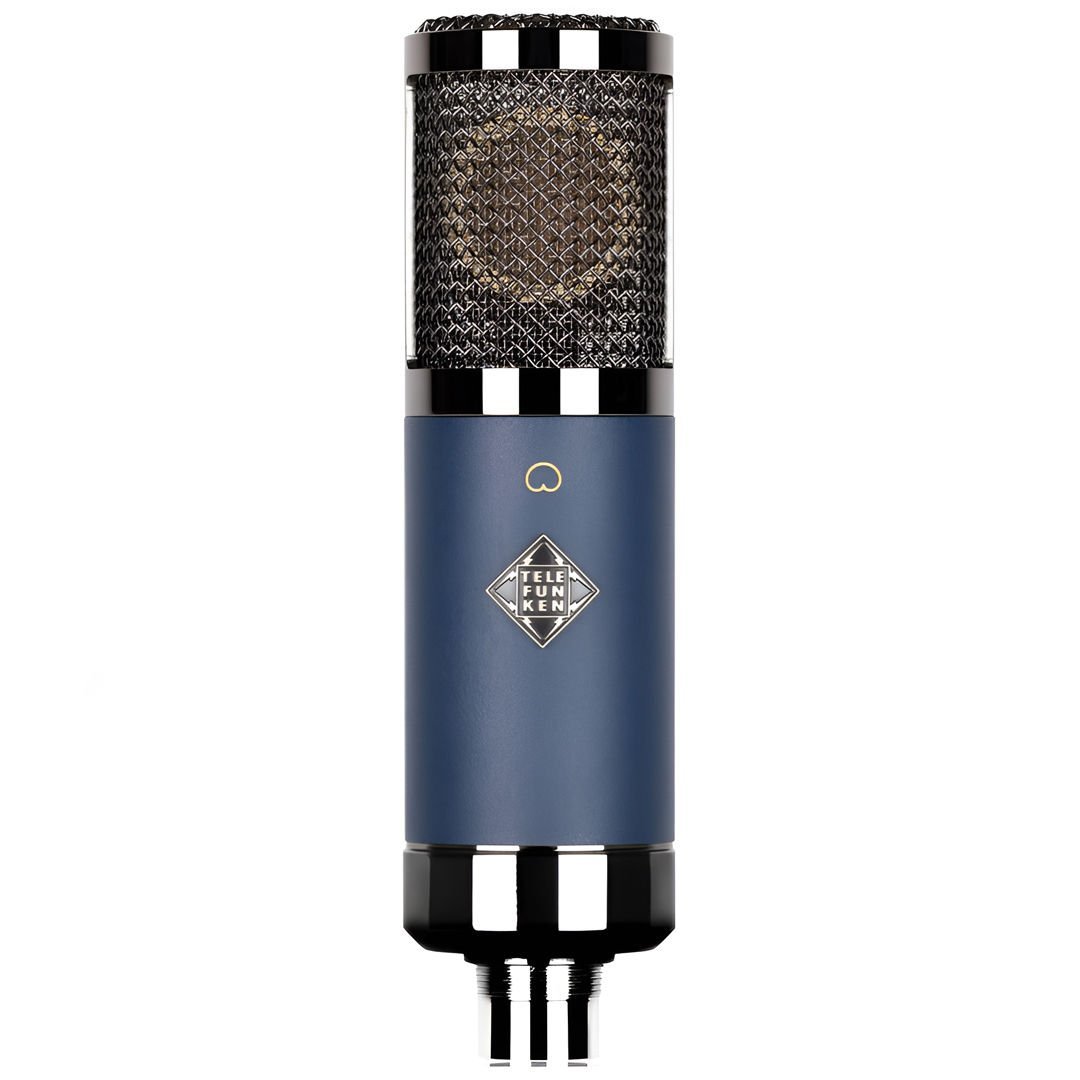

Large-Diaphragm FET Condenser Microphone ( Cardioid)
Blending the legendary C12-like sound with modern FET high performance, the Austrian-inspired phantom-powered TF11 exhibits a beautifully open and detailed frequency response with exceptionally fast transient response, high SPL handling and very low noise. The compact TF11 is versatile and portable and reliable for all recording environments, from the home to the studio.
Circuit design The TF11 features a unique combination of circuit elements shared with other TELEFUNKEN Elektroakustik designs. The CK12-style edge-terminated capsule is a single membrane version of the capsule found in the TF51. The amplifier is a unique take on the classic FET microphone amplifier, similar to the M60, combined with a custom large-format nickel-iron core transformer made by OEP/Carnhill in the UK. Premium through-hole components include UK-made polystyrene film capacitors, Nichicon Fine Gold electrolytic capacitors and a high-performance, ultra-low-noise JFET amplifier.
Main Features • Cardioid polar pattern • Compact design, easy to carry and budget friendly • Clear and detailed tone with fast transient response • Hand-designed and assembled in the USA • High SPL handling, low noise phantom powered FET amplifier • CK12 style capsule and UK made OEP/Carnhill transformer
Areas of Use • Live Sound: Drums, Piano, Acoustic Instruments • Vocals: Pop, Rock • Drums: Overhead • Acoustic guitar • Cello • Percussion

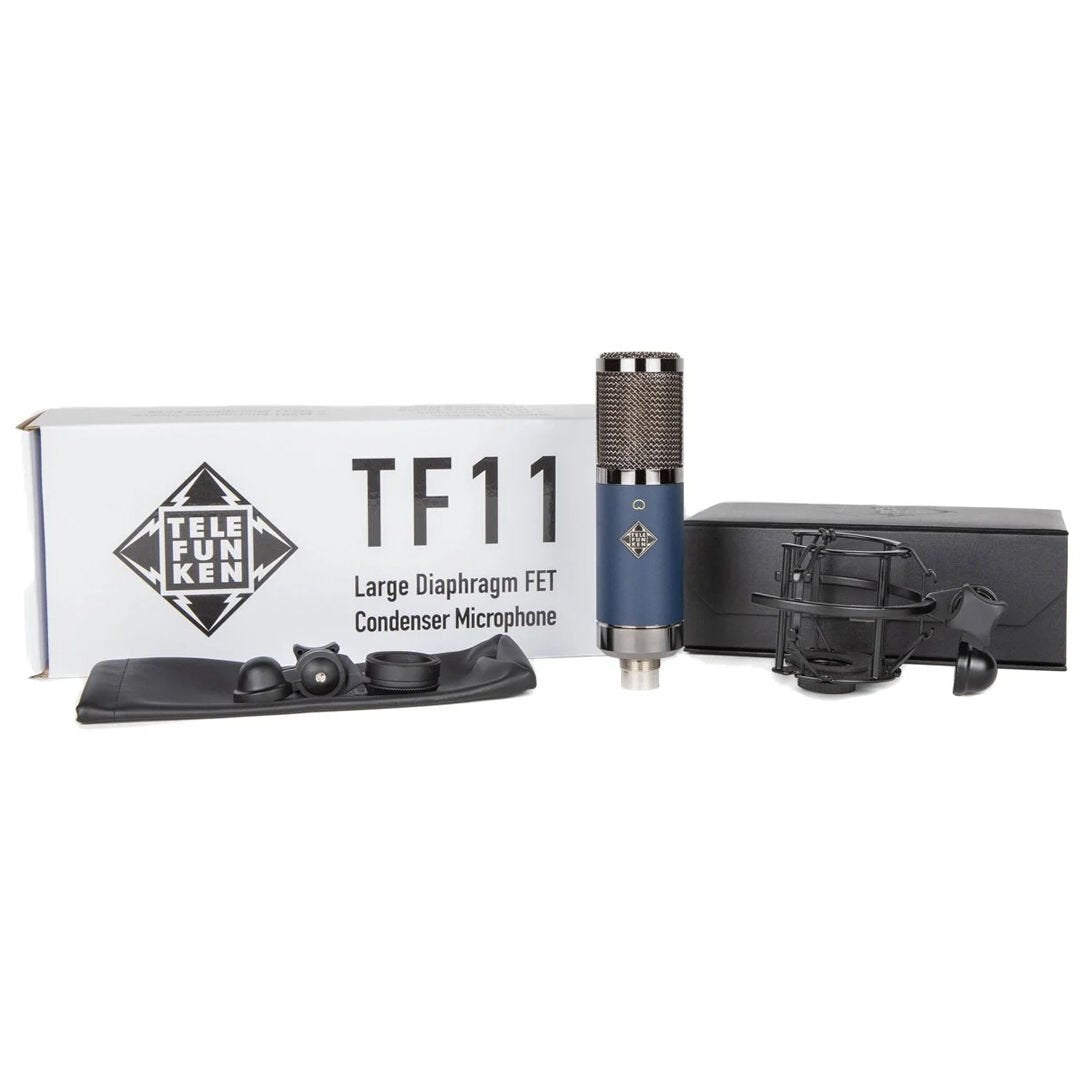

Accessories Each TF11 FET microphone system comes with an MC11 microphone box, M 703 shock mount, M 782 stand mount, and microphone case.
Technical specifications • Type: FET Condenser • Polar Pattern: Cardioid • Frequency Range: 20 Hz - 20 kHz, ± 3 dB • Power Supply: + 48V Phantom Power • Capsule: TK51S • Transformer: OEP / Carnhill T218 • Sensitivity: 14 mV / Pa, ± 1 dB • THD at 1Pa 1 kHZ (Amplifier): <0.01% • Output Impedance: 110 Ω • Maximum SPL (for 1% THD): > 135 dB • S / N Ratio: 90 dBA • Self Noise (Amplifier): 4 dBA • Dimensions: 175 mm L x 46 mm • Weight: 545g • Included Accessories: Shock mount, stand bracket, microphone case, microphone box.
