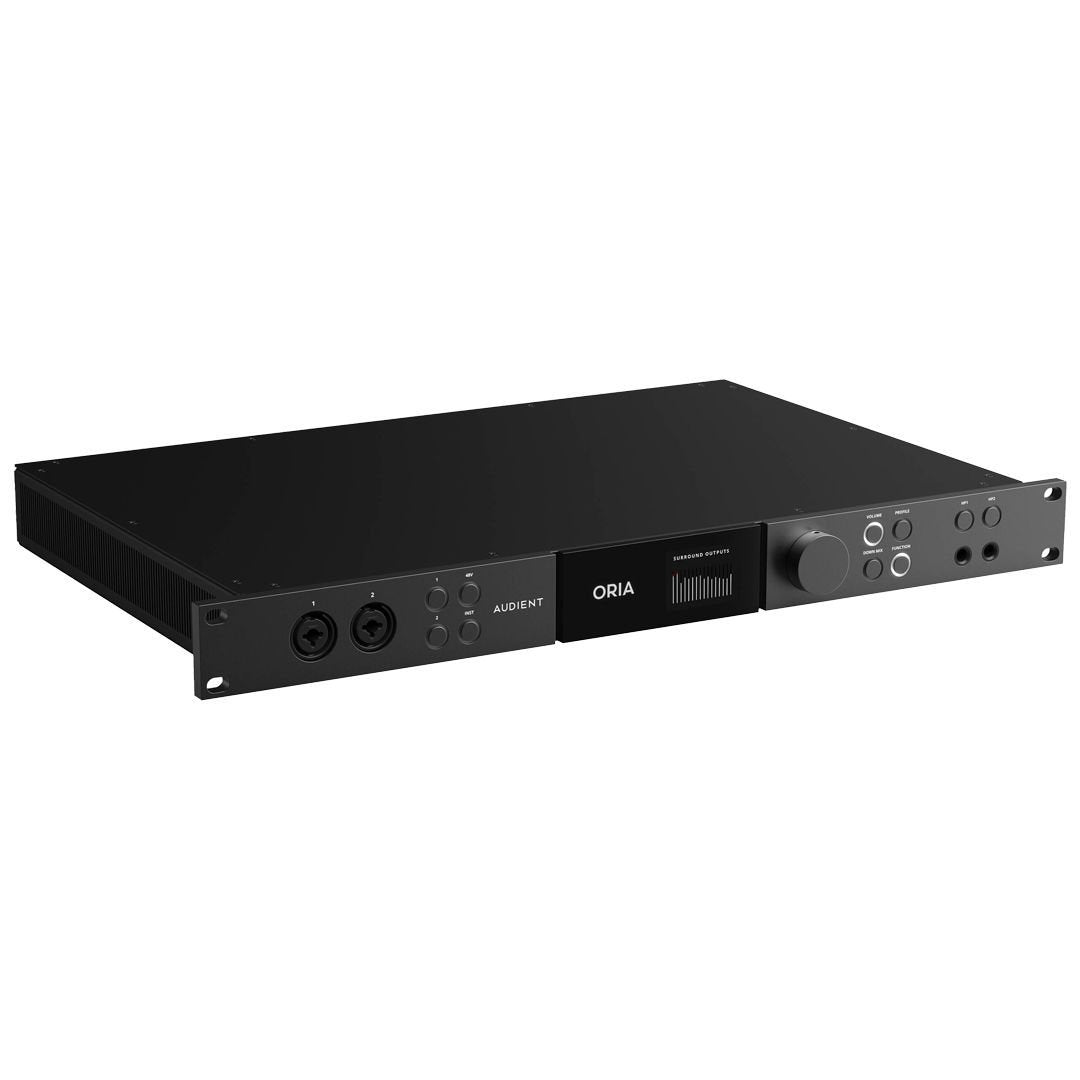

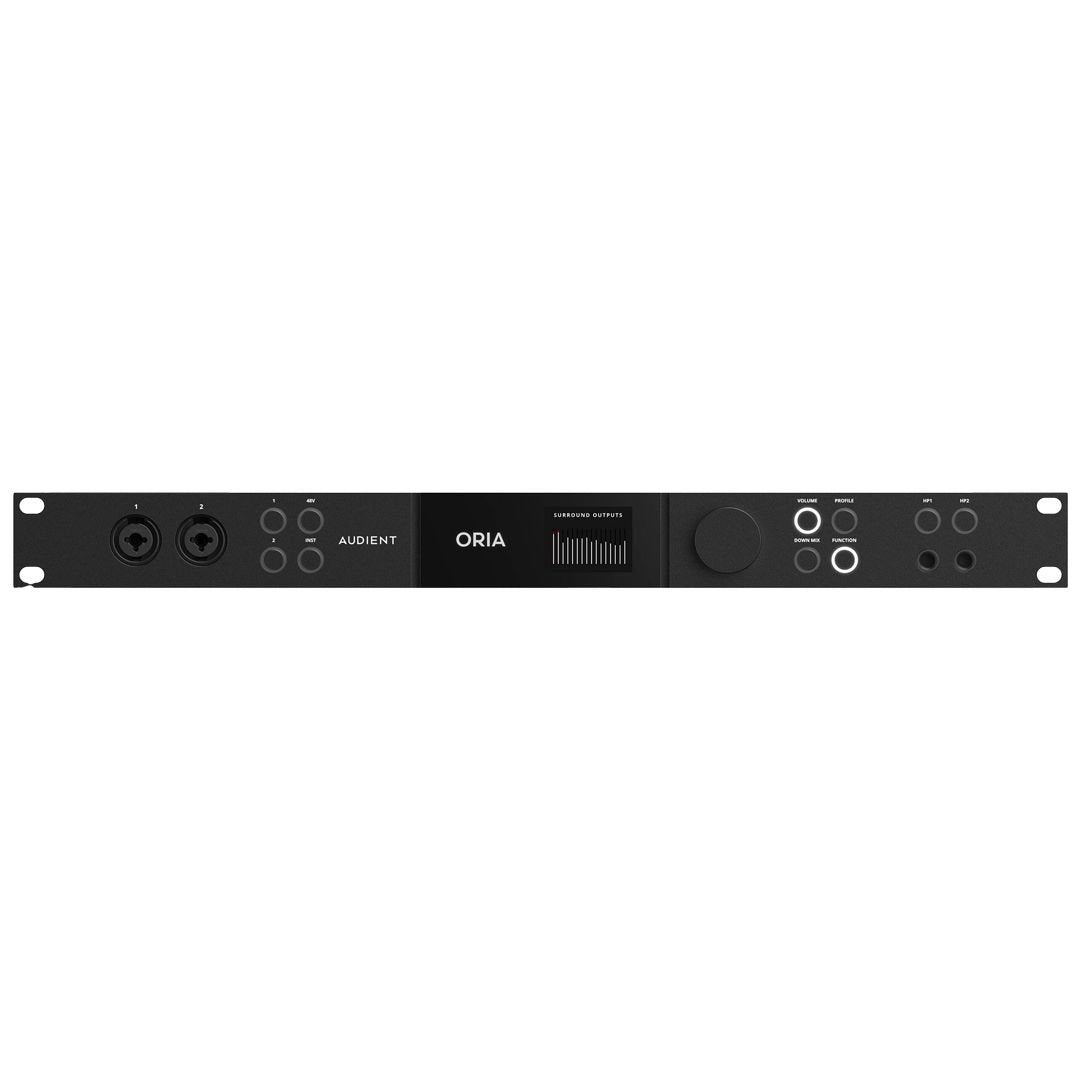

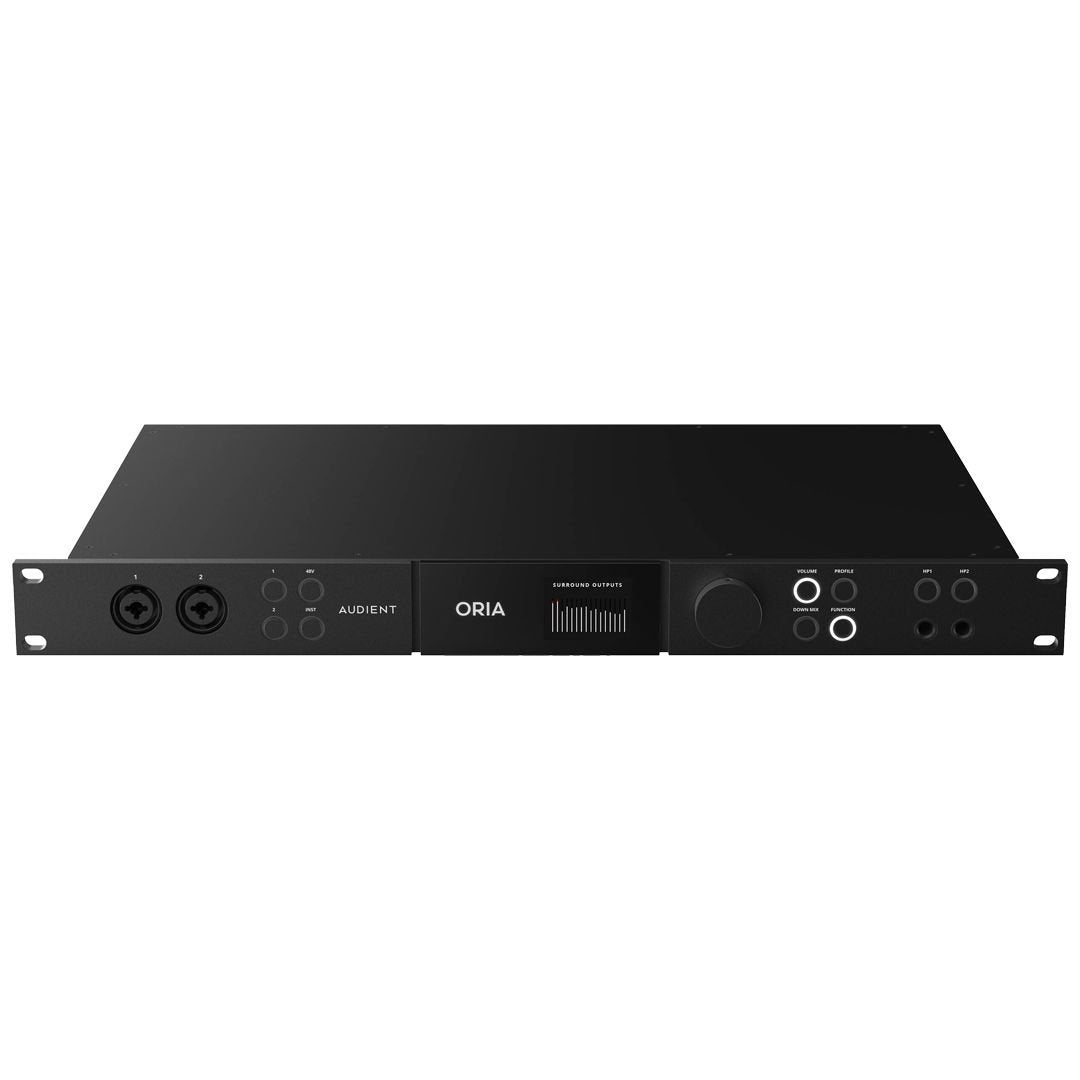

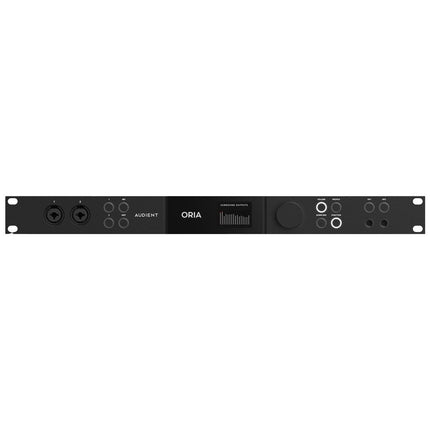

Audient ORIA
16-in/16-out USB-C Sound Card with 2 Mic Preamps, 24-bit/96kHz Conversion, 9.1.6 Dolby Atmos Support and Room Calibration DSP and Monitor Controls




Revolutionize your immersive audio workflow with ORIA, a comprehensive audio interface and monitor controller from Audient that supports up to 9.1.6 surround. With onboard DSP processing, native Atmos processing, and a wealth of analog and digital I/O, ORIA supports a wide range of production scenarios.

Ideal for professional music, TV, film, video game, and VR production, ORIA offers up to 24-bit/96 kHz sampling and an impressive 126 dB dynamic range with its proprietary converters. Advanced metering and monitor controls are provided via the bright LCD display and companion software. I/O is comprehensive, supporting up to 16 channels of audio for analog or digital monitor systems. ORIA includes a calibration microphone and a USB-C cable, along with free Sonarworks SoundID Reference calibration software to match your speaker system to your environment.



Key Features

Advanced Speaker Processing
ORIA's Advanced Speaker Processing feature allows you to calibrate your room and create custom onboard calibration Profiles (presets) for all monitoring formats, from stereo to surround to 9.1.6 immersive setups, making it easy to reference check your mix across different formats.

Trim: adjust the level of each speaker individually to ensure a balanced sound field
Speaker delay: make sure the sound from each speaker arrives at the mix position at exactly the same time
Bass management: hear all the bass and low-end frequencies in your mix accurately and use a configurable crossover filter per channel
8-band EQ: Removes unwanted acoustical artifacts and colorations to ensure your sound is delivered smoothly and consistently



SoundID Reference

Audient has teamed up with room calibration heavyweights Sonarworks to seamlessly integrate with SoundID Reference, allowing you to accurately measure and calibrate multichannel setups in under an hour. Including the SoundID Reference Microphone and a 60-day free trial of SoundID Reference for Multichannel software, ORIA lets you create custom SoundID Profiles for different monitoring formats and target modes, upload them to ORIA, and enjoy consistently accurate, low-latency immersive audio.



How It Works
Here's a quick rundown of how calibration with SoundID works:

Measure your speakers: an automatic and user-friendly guide helps you measure and calibrate your studio speakers using the included microphone
Select your Target Mode: Select your Calibration Profile and correct for Dolby Atmos Music curve, flat frequency response or create custom Profiles
Export your Profile: Export up to 32 unique Profiles directly to ORIA's internal memory, watch your settings automatically adjust
Now you're ready to mix: sit back and enjoy consistent translation of your audio, no matter what format you're working in



Take the Burden Off of You

All of ORIA’s Advanced Speaker Processing, whether using manual or SoundID calibrations, runs directly from the lightning-fast onboard DSP Dual Processor Architecture. Delivering low-latency audio and freeing up your computer’s CPU for larger, more demanding sessions, the onboard DSP helps you be more productive and experience better performance.



Advanced Immersive Monitor Control
Fast Profile Recall
Use Profiles to quickly switch between speakers, listening levels, and target curves. Imagine instantly switching from your perfectly calibrated stereo nearfield speakers to a 9.1.6 immersive setup with Dolby X-Curve. Now you can do it with the touch of a button.



Speaker Control
Fly through your session at high speeds with truly immersive monitor control. It features color-coded speaker groups, individual and group speaker mute/solo, global volume control, cut and fade, and global delay (lip-sync) for post-production workflows.



Measurement
Track your measurement from multiple locations, including ORIA’s front-panel LCD display, desktop software, or iPad remote control. Still need more detail? Extend ORIA’s desktop measurement via a standalone window and unlock additional visual feedback.



Dolby Atmos Support
ORIA integrates with Dolby Renderer, allowing you to control the down mix function directly from ORIA's user interface. Ideal for quickly checking your mix in different monitoring setups such as 7.1, 5.1, stereo and more.



iPad Control App
Remote control
Never miss a thing with ORIA's iPad Control app. The power of touch gives you remote access to all of ORIA's control features from one central control hub. Adjust levels, listen to speakers, change profiles, and monitor your meters right from your desktop. Precise control without the complexity.



Connectivity

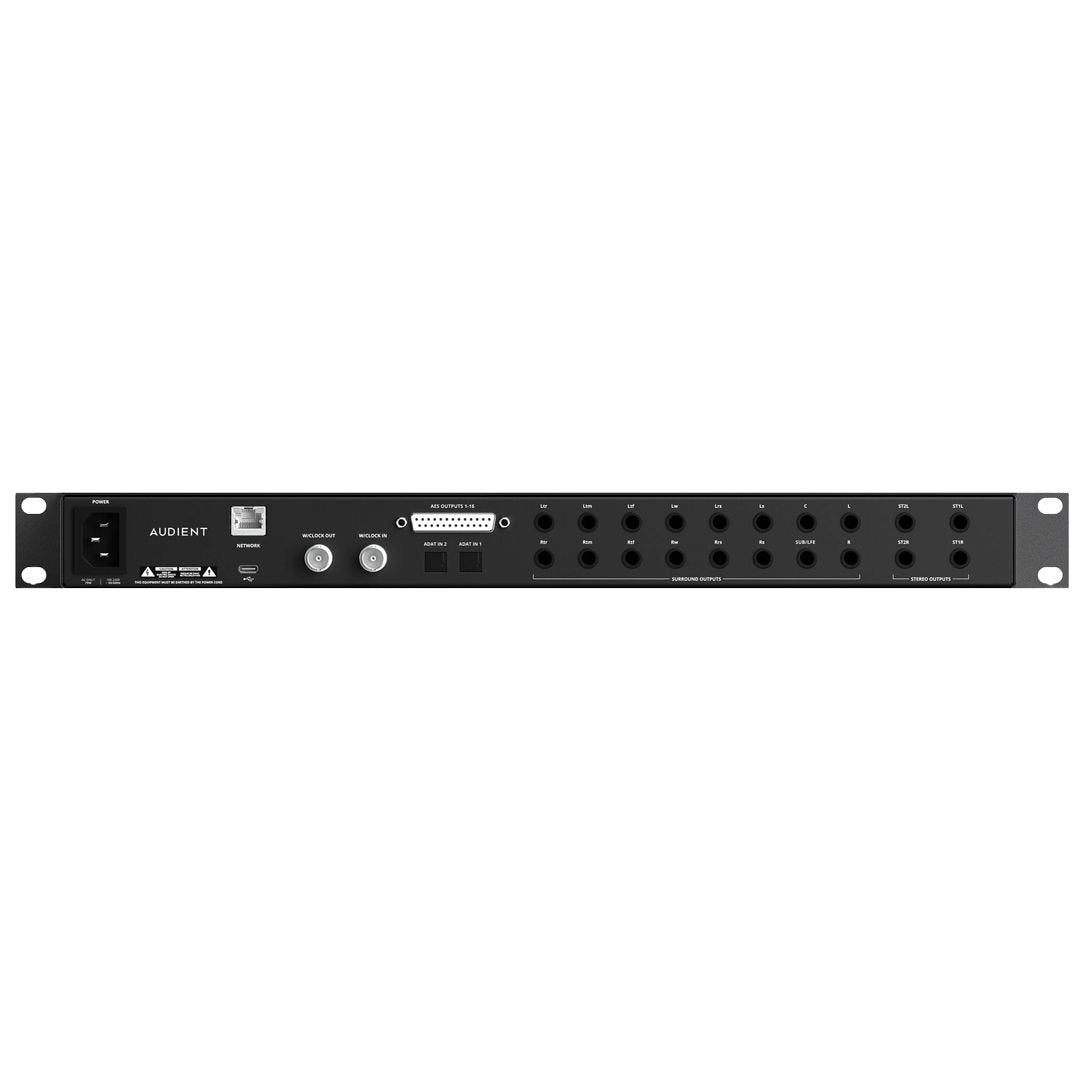

Featuring a wide range of connectivity options, ORIA provides more than enough I/O to handle professional multi-channel installations.
Two XLR-1/4" combo inputs with balanced microphone and line level inputs and unbalanced Hi-Z instrument input
Both combo inputs feature high-quality Audient preamps with up to 60dB of clean gain
2 x 16 1/4" line outputs to support surround sound speaker setups up to 9.1.6
Eight pairs of AES digital outputs (up to 16 channels) for interfacing with digital speakers
Two ADAT optical inputs for use as an external 9.1.6 monitor controller or traditional multi-track recording, up to 16 channels at 48 kHz and 8 channels at 96 kHz
Two dedicated 1/4" stereo line outputs (two stereo pairs) for close-field applications
BNC wordclock input and output connectors for integration into larger installations



USB Supported
Connected via a high-speed USB-C connection, ORIA delivers ultra-low latency monitoring and robust driver performance for both macOS and Windows.



Optional Dante Card
Providing up to 16 input channels over AoIP, ORIA's optional Dante Card lets you quickly integrate with new or existing AoIP networks, making your transition to immersive a seamless one. Ideal for large studio complexes and educational institutions.



Audio Performance
High Performance Converters
With a massive 126dB of dynamic range, your mixes will be heard in more detail than ever with ORIA’s high-performance AD/DA converters. These converters are built to deliver the most honest translation of your sound, helping you hear subtle details, identify problematic issues, and make better mixing decisions. Get total clarity and take your mixes to the next level.



Audient Console Microphone Preamps
Designed to deliver ultra-low noise and low distortion with a touch of classic analog warmth, ORIA's two Audient Console Mic Preamps provide 60dB of gain and operate as mic, line, or Hi-Z instrument inputs. Get your sound clean, accurate, and true to its source.



Smart Analog Preamps
For the first time, Audient Console mic preamps are remotely controllable. They are optimized to provide precise digital control while still providing the sonic benefits of their all-analog design.



Long Lasting
Ready to Face the World
The 8mm thick front panel and solid steel design mean ORIA is ready to withstand studio wear and tear, while ORIA's fanless design means it's whisper-quiet and ready to sit front and centre in your studio.



Technical Specifications

Microphone Inputs
Gain: 60dB
Max Input Level: +18dBu
Crosstalk: <105dB
THD+N: 0.0015%/-96dB
EIN: -129dB
CMRR: -85dB
SNR: 100dB
Frequency Range : ±0.5dB 20Hz to 40kHz
Input Impedance: 1.5kΩ Balanced

Line Entries
Gain: -10dB to +50dB
Max Input Level: +18dBu
THD+N: 0.0015% / -96dB
Input Impedance: 4.7kΩ Balanced

DI Inputs
Gain: 60dB
Max Input Level: +18dBu
THD+N: 0.16%
SNR: 100dB
Frequency Range : ±0.5dB 20Hz to 40kHz
Input Impedance: 370kΩ Unbalanced

Line Outputs
Lineup Level: +18dBu
THD+N: 0.0006%, -105dB
Dynamic Range: 126.5dB
Crosstalk: -123dB
Frequency Range : ±0.3dB 10Hz to 40kHz
Output Impedance: <100Ω Balanced

Headphone Outputs
Lineup Level: +18dBu
THD+N: 0.0007% (-103dB)
Dynamic Range: 124dB
Crosstalk: -115dB
Frequency Range: ±0.25dB 10Hz to 40kHz
Output Impedance: <50 Ω unbalanced
Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW
Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW
Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW

USB-C
Connector: USB Type C
Cable Included: USB Type-C to Type-C
Number of Input Channels: 34 (2x Analog, 16 Digital, 16 AOIP*)
Output Channel Count: 38 (20 Line Outs, 2x Stereo Headphone Outputs, 16x AES)

*With AOIP card inserted

Digital Inputs
ADAT 16 Channels : 44.1kHz to 48kHz
ADAT 8 Channel (SMUX): 88.2kHz to 96kHz

Digital Outputs
AES Outputs: 16 Audio Channels (8x AES Data Streams)

Word Clock Login & Login
Word Clock: 44.1kHz to 96kHz

DSP Latency
Round Trip:
44.1kHz - 6.5ms
48kHz - 6.3ms
88.2kHz - 5.5ms
96kHz - 5.4ms

AOIP (Optional Dante Expansion Card)
AOIP Inputs: 16 (44.1kHz to 96kHz)

Power supply
Input Voltage: 85 - 264 VAC, 50 / 60 Hz
Input Frequency: 47 - 63Hz

Operating System Compatibility
  Windows
  macOS

Mobile App Compatible
Yes: iOS only
App Name: iPad Control
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup

Physically
Rack Mount Size: 1 RU
Dimensions: 19" / 48.3 cm
