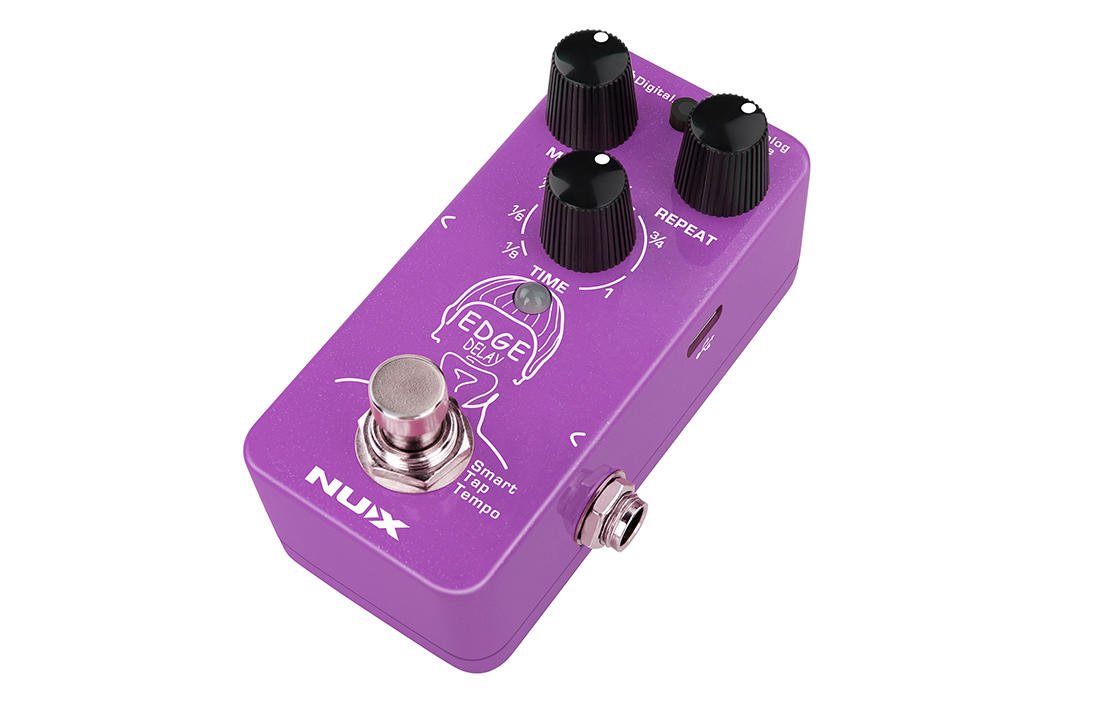

Nux NDD-3 Edge Delay Pedal

A new dimension in delay pedals

ΦPhi Digital delay is a digital delay with golden ratio 2nd repeat logic. It makes your guitar sound more musical in nature. Simply change the knobs, set the subdivision you want, engage the smart beat tempo and you are ready to go.

Analog delay is based on the old BBD (Bucket Brigade Device) delay. It produces a very warm sound with natural treble decay. It is very suitable for scorching ballad solos with romantic atmosphere. Our unique algorithm replicates the physical infinite oscillation feedback as you quickly adjust the time knob from max to min.

Tape Echo is based on the legendary Space Echo machine. We've digitally recreated the retro feel of a real tape and capstan configuration. Tape reverb mimics the high-frequency saturation and low-end distortion of magnetic tape. It's slightly modulated for added richness and color. Quickly adjust the time knob from maximum to minimum and you'll get endless feedback.

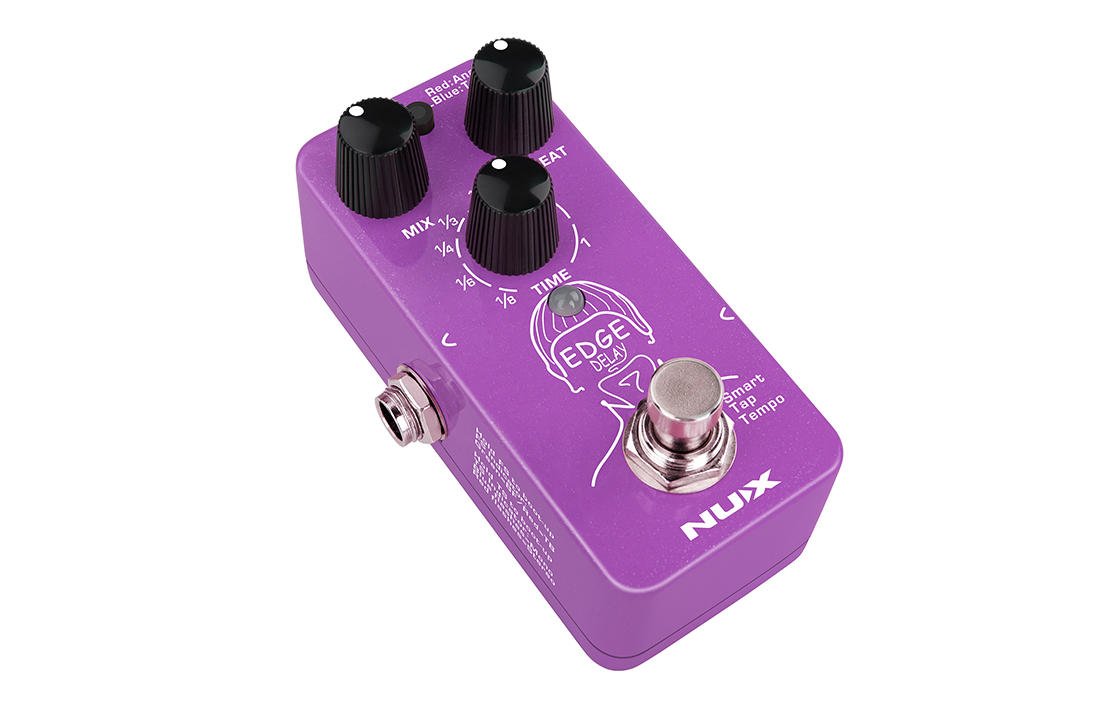

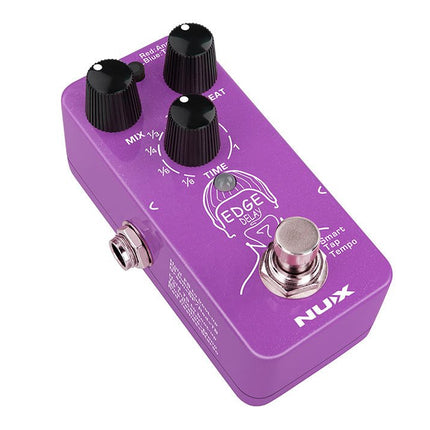

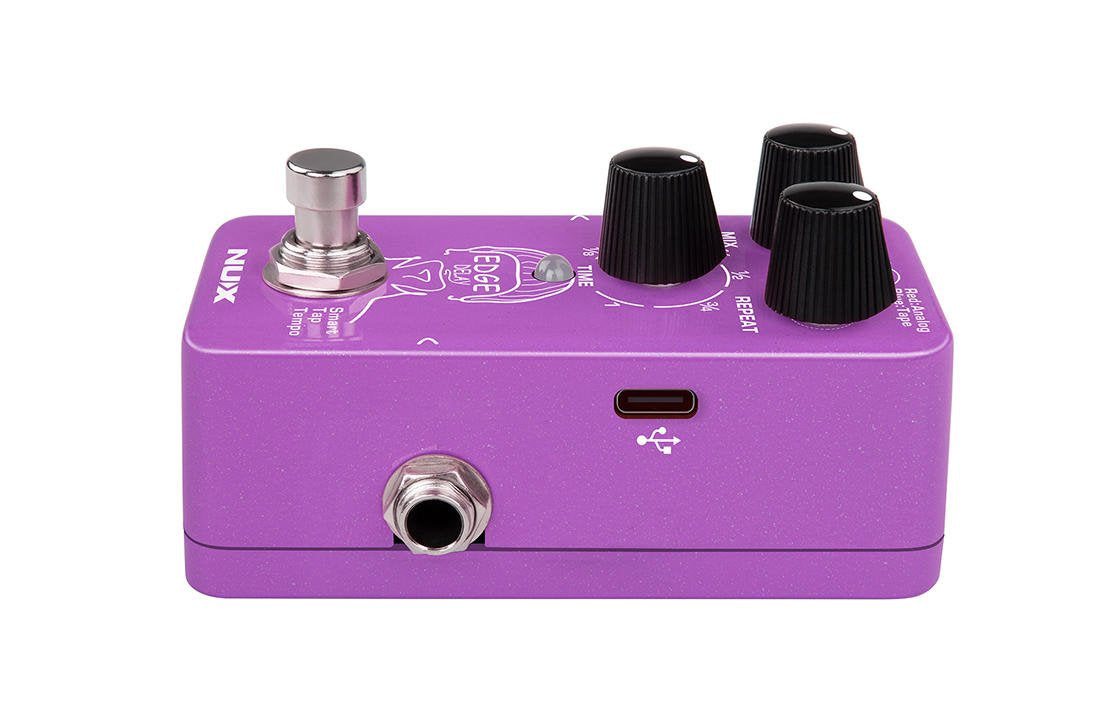

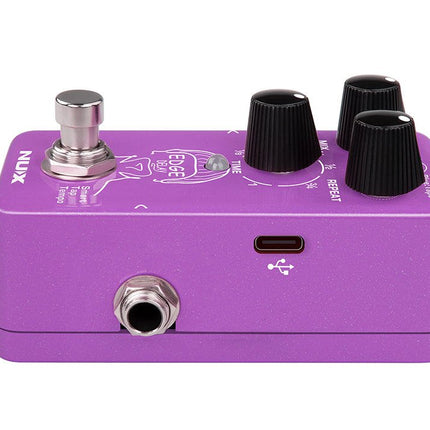

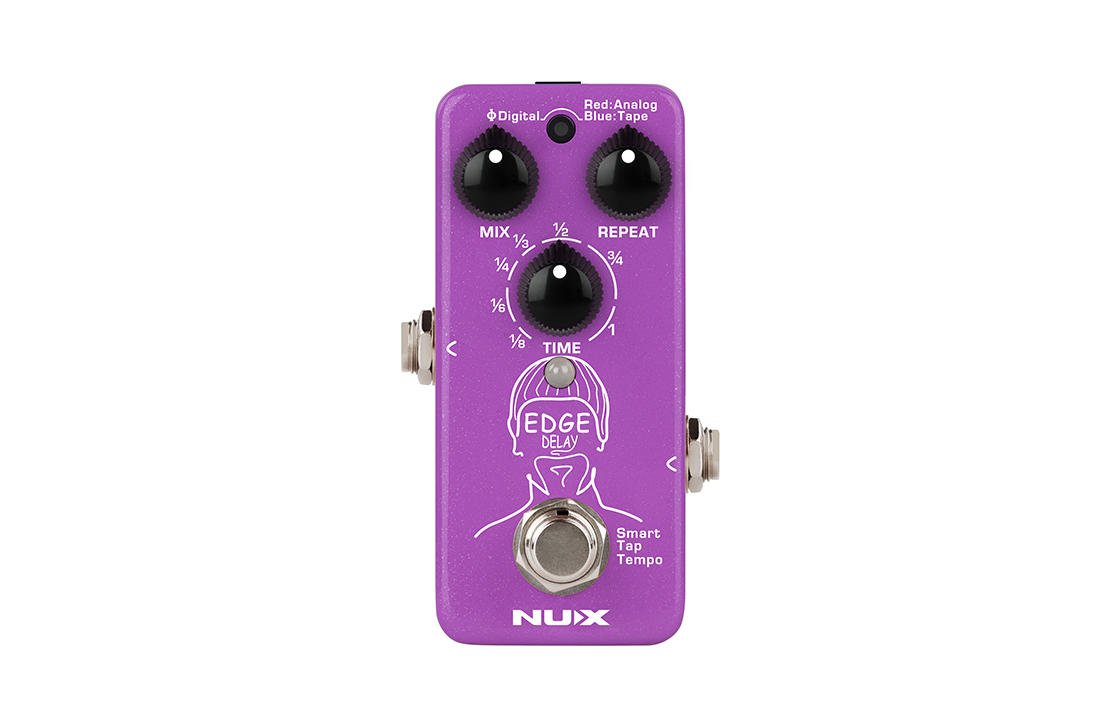

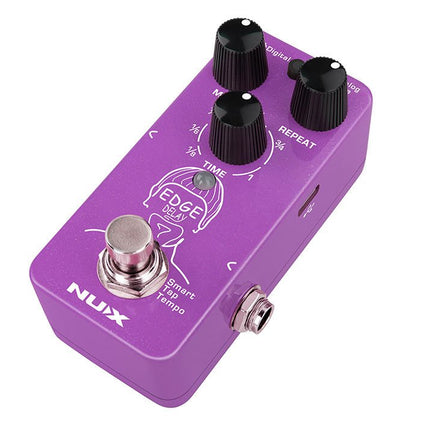

Edge Delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay and Tape Echo. You can change delay types by pressing and holding the footswitch.

Set the Smart Tap Tempo Time knob parameter to the subdivision you want, then you can activate smart tap tempo by pressing the footswitch twice to get a dynamic subdivision tap tempo delay.

Press the footswitch once to enable/disable the effect. Press twice to access Smart Tap Tempo. Meanwhile, the delay time is related to the tap tempo and current subdivision parameter. (FS indicator will flash as current BPM.)

Technical Specifications

• 3 delay types in a mini chassis.
• ΦPhi Digital delay: Musical digital delay with golden ratio 2nd repeat logic.
• Analog delay: BBD Warm sound with natural treble roll-off.
• Tape reverb: High-frequency saturation and low-level distortion.
• Subdivision with Smart Tap Tempo. (Maximum: 1500ms)
• True-bypass or Buffer-bypass(Trails).
• Supports Stereo I/O via TRS Cable.
• Low power consumption.(less than 100mA)
• Analog dry signal for low noise and zero delay.
• Features
• Input Impedance: 1MΩ
• Output Impedance: 10kΩ
• Dynamic Range: 103dB
• DSP Processing: 48KHz / 32-bit
• A/DD/A Sampling Rate: 48KHz / 24-bit

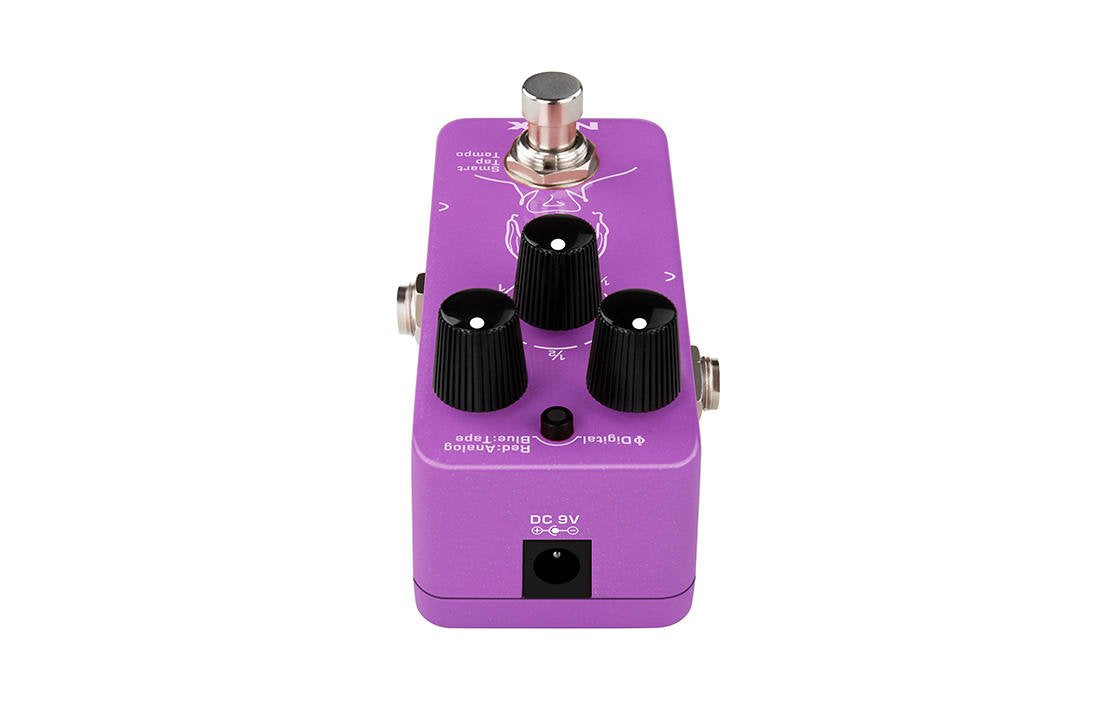

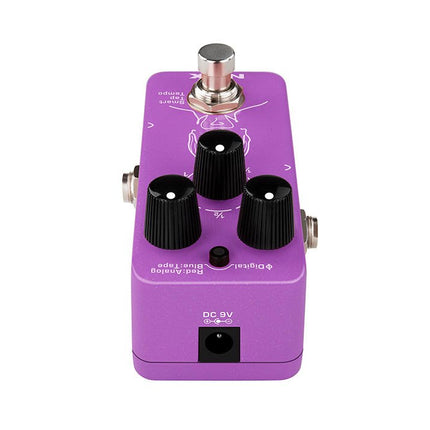

• Power：9V DC(Negative terminal, Optional ACD-006A adapter)
• Current Draw: Less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
• Weight: 175g
