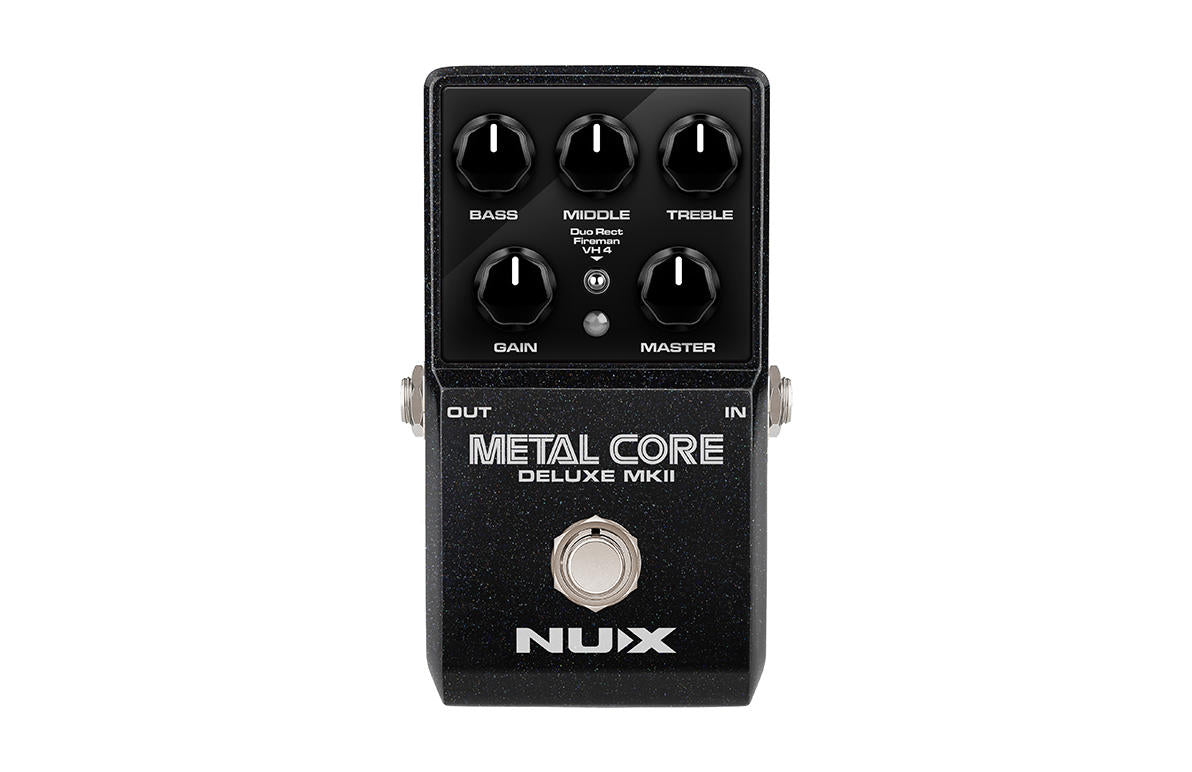

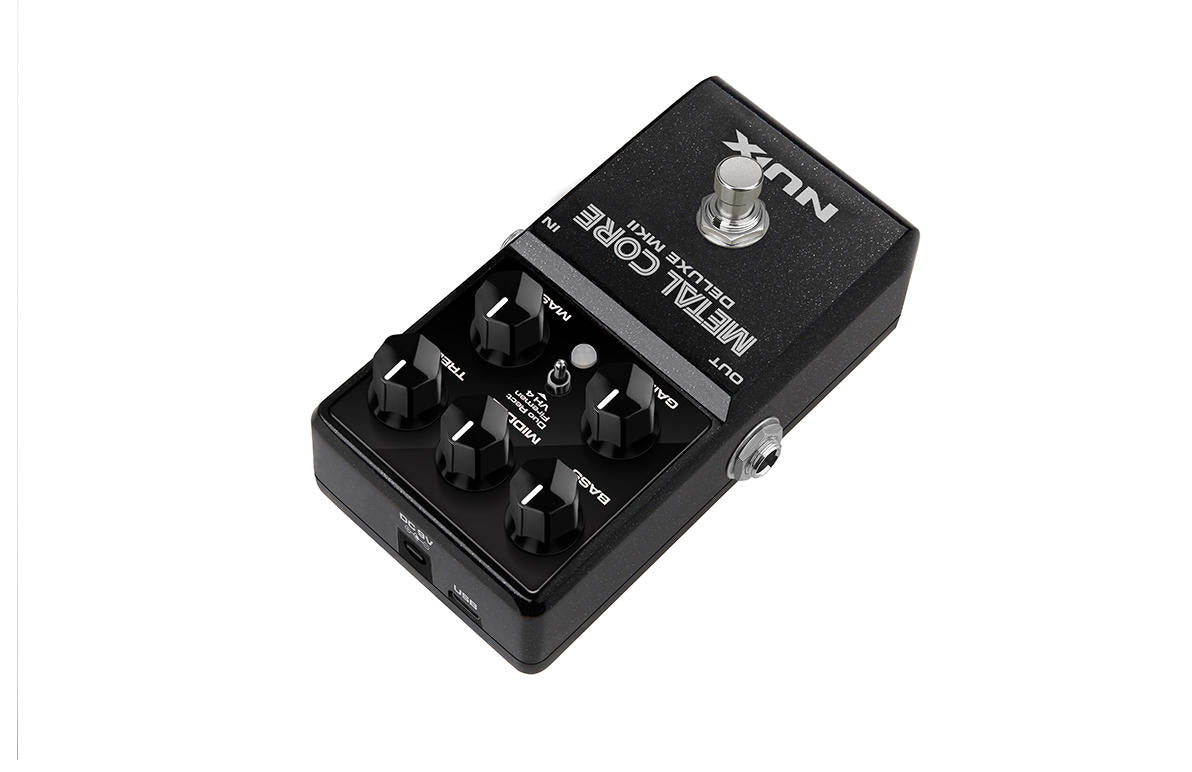

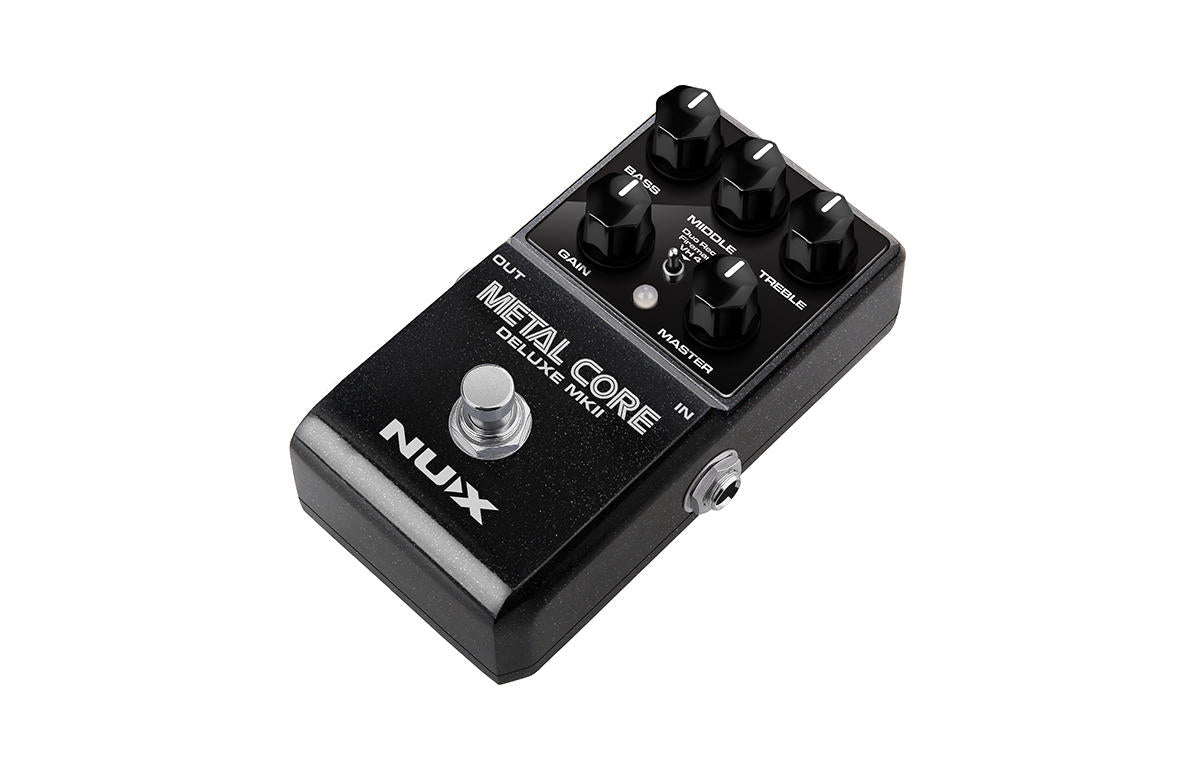

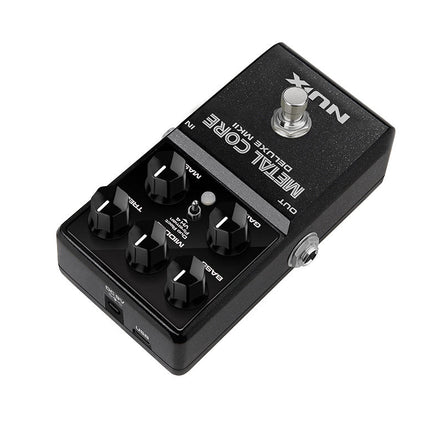

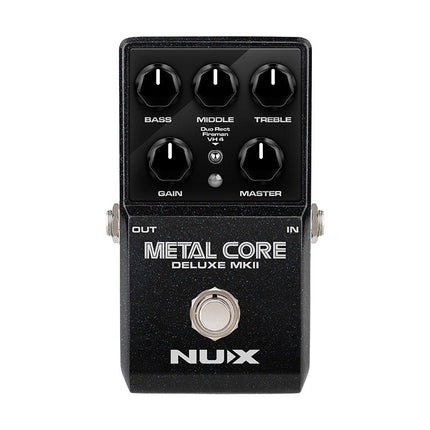

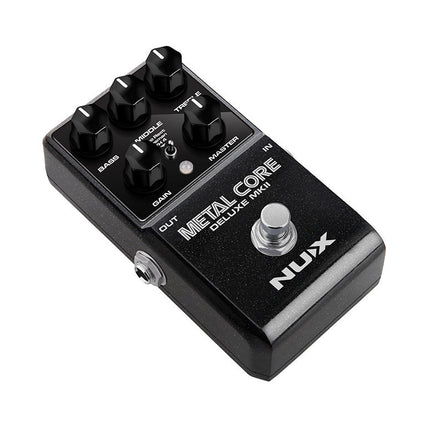

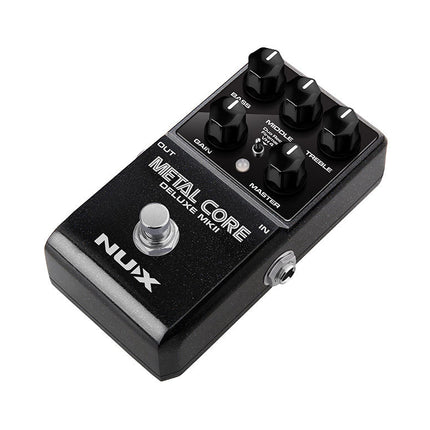

Nux Metal Core Deluxe MKII Distortion Preamp and 3 Mode Amp Modeling Pedal

NUX METAL CORE DELUXE MKII is a high gain preamp pedal with 3 different high gain amp models including Duo Rect, Fireman and VH 4.

You can select these models via the 3-way switch.

• The Duo Rect is based on the Mesa Boogie Dual Rectifier. It's that familiar 90s American metal sound with its iconic metal front panel that brings to mind countless classic records from metal to punk to grunge, including Metallica, Tool, Korn, Soundgarden, Foo Fighters and Blink 182.

• The Fireman is based on the Friedman BE-100, the man behind the signature tones of rock icons like Eddie Van Halen, Steve Stevens and Jerry Cantrell. For over a decade, the "BE" circuit has been considered the epitome of British tone.

• The VH4 is based on the industry-revolutionary 4-Channel Diezel Amp. This amp covers a wide range of tones and has a thick, clear, "big" sound that many musicians love.

Because of its flexibility, VH4 is used in many recording studios around the world.

*All brand and model names mentioned on this page are Trademarks of their respective owners and are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.

IR Cabin Simulations

It plays a key role when it comes to getting the sound coming straight from the pedal into a PA system or recording, as it gives you that cabinet sound to complete your tone quest. Each of the amplifiers in the METAL CORE DELUXE MKII has a sonically matched IR.

You can load your own favorite 3rd party IRs via MetalCore editing software.

Please visit the product page and download the editor (METAL CORE DELUXE MKII supports 512 samples IR resolution).

MetalCore editing software will automatically convert the IR file; just make sure your IR file is in WAV format.

The USB-C port is for firmware updates and connecting to the MetalCore editing software (see below). To update the pedal, connect a USB cable to your PC and press and hold the footswitch to power up the device and enter DFU (Device Firmware Update) mode. Once connected, you can perform firmware updates using the DFU update software.

MetalCore editing software:

You can adjust parameters and load 3rd party IRs via MetalCore editing software. Connect the USB cable to the pedal and PC, open the editing software, that's it. Make your tone your own. METAL CORE DELUXE MKII provides 5 user slots for you to load 3rd party IRs. (4~8) Supports 512 sample resolution.

EFX Mobile App with OTG connection

If you don't have a computer, you can tweak the pedal on the go for live applications with the EFX Mobile App. (For iOS, you will need to use a Lightning to USB adapter. While some Type-C to Type-C Androids may work, using an OTG adapter will allow most Android systems to work properly with the METAL CORE DELUXE MKII.

Enable/Disable IR

When the pedal is not connected via USB, press and hold the footswitch while plugging in the power supply to start the pedal. If the LED indicator flashes GREEN 3 times, IR is enabled. If the LED indicator flashes RED 3 times, IR is disabled.

Features:

• 3 high gain amplifier models.
• Duo Rect: Based on the Mesa Boogie Dual Rectifier.
• Fireman: Based on Friedman BE-100.
• VH4: Based on the Diesel VH4.
• True bypass.
• Parameters are automatically saved in 3 models.
• Low power consumption.(less than 120mA)
• TSAC-HD modeling delivers realistic playability and response.
• Input Impedance: 1MΩ
• Output Impedance: 1kΩ
• Dynamic Range: 104dB
• DSP Processing: 48KHz / 32-bit
• A/DD/A Sampling Rate: 48KHz / 24-bit
• Power: 9V DC (Negative terminal, Optional ACD-006A adapter)
• Current Draw: Less than 120mA
• Dimensions: 122(L) X 72(W) X 47(H)mm
• Weight: 270g
