The modern musician's all-purpose pocket knife

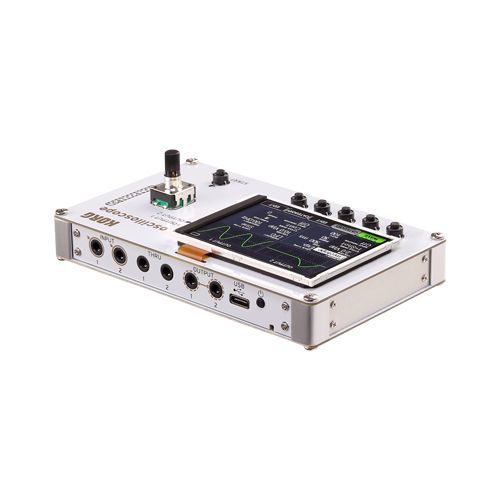

The Nu:Tekt NTS-2 oscilloscope kit is a DIY multi-tool for musicians. Building on a 4-channel oscilloscope - allowing you to monitor control voltage (CV) and similar audio signals - the NTS-2 also features a flexible waveform generator, a spectrum analyzer, and a tuner, all in one DIY device that fits in the palm of your hand.

Originally released as a bundle with the critically acclaimed “PATCH & TWEAK with KORG,” the NTS-2 is now available as a standalone kit.

Perfect for musicians and composers of all backgrounds and experience levels on their musical journey, the NTS-2 provides robust tools and clear references to hone your craft.

A must for a studio

The NTS-2 kit is compact and easy to assemble(*), but don't let its size fool you; it packs a punch! The NTS-2 is a cohesive, intuitive and extremely useful oscilloscope, tuner, FFT and spectrum analyser. And that's not all; you can connect it to your synth rig using its dual stereo IN, dual stereo THRU/OUT and two separate OUTs, and use it as a dual waveform generator to give yourself an extra pair of oscillators or LFOs! It's the ideal tool for synth enthusiasts and modular users, from beginners to pros.

(*) No soldering required, assembly takes less than 20 minutes

The best friend for synth learners

While synthesizers are first and foremost musical instruments, learning becomes easier and more intuitive if we can use our eyes to support our ears. Examining waveforms, frequency and time relationships, audio signals and control voltages becomes clearer and more immediately understandable if we can see how they change and interact with the sound, not just listen to what they do. Seeing these signals come to life in color as you make patches and tweaks is a huge boost to the learning process!

Oscilloscopes, a tool for visualizing signals and voltages, have been around for many years, but as scientific instruments they may not seem like the kind of tools a musician would easily use. Not anymore; for the first time, an oscilloscope was designed with musicians in mind! The NTS-2's interface is simple, clean, and easy to use; instead of trying to figure out obscure parameters by turning knobs, you can look at your signals and understand them in seconds. This way, your artistic focus can remain where it belongs: making music.

A useful tool kit for musicians

The NTS-2 includes a variety of useful studio functions in an elegant, pocket-sized form factor that you can take anywhere.

4 CHANNEL OSCILLOSCOPE

Dual stereo inputs let you work with up to four signals simultaneously, easily comparing and overlaying them. A variety of display modes let you see your data in color—a huge advantage over the old oscilloscopes you see in sci-fi movies! The user interface is clear and fast, thanks to dedicated menu buttons and a clickable encoder button, and the 2.8-inch color LCD with 240 x 320 pixels is a pleasure to view.

The NTS-2 even has a powerful Lissajous mode, opening the door to creativity and making it possible to visualize commonly available oscilloscope art for extra fun with your device.

FFT / SPECTRUM ANALYZER

To dive deeper into analyzing any signal, the NTS-2 features a dedicated FFT (Fast Fourier Transform) mode with a real-time Spectrum Analyzer. These handy tools have always been hard to come by for the synth musician, requiring expensive hardware or a computer. Now you can have them all in your pocket!

DUAL WAVEFORM GENERATOR

The NTS-2 is much more than just an oscilloscope. The flexible Wave Generator mode features 2 oscillators with dedicated outputs so you can test your synth hardware or get creative! Each oscillator can generate a variety of waveforms (sine, square, triangle, sawtooth, pulse and noise) that can be adjusted in shape and phase to suit a wide range of applications.

These sounds can be used in the audio range or as a control voltage source, and can be set to loop continuously or act as one-shot pulses, meaning you can turn these waveforms into LFOs, Envelopes, Triggers, and Control Voltage Generators, as well as audio sources. Connecting the NTS-2 to any patchable synth instantly increases its power in useful ways, making it an analog synth player's dream tool.

TUNER

And of course this multifunctional utility kit from KORG wouldn't be complete without the inclusion of a precise and easy-to-use Tuner with different display modes!

Able to receive and monitor up to 4 input signals simultaneously, the NTS-2 is the analog synth player's dream tool.

CONNECTIVITY AND EASE OF USE

Despite its small size, the NTS-2 offers a variety of ways to connect to your studio. Along with 4-channel input and dual waveform output, dual stereo THRU/OUT ports allow you to leave your hardwired system with a stable connection. It’s much easier to understand what you’re doing if you see the signals and use them instead of constantly plugging and unplugging cables. This handy feature allows you to maintain your signal flow at all times, even when the NTS-2 is powered off.

Speaking of power, the NTS-2 maximizes portability and flexibility by using either battery or USB-C power supply, depending on your needs.

Nu:Tekt DIY fun

Like other Nu:Tekt products, the NTS-2 is a DIY kit that is extremely quick and easy to assemble (see assembly video below).

Important Notice:

- The NTS-2 oscilloscope kit is a standalone kit and does not include the “PATCH & TWEAK with KORG” book or the special side panels and stickers included in the package (You can learn more about the NTS-2 + “PATCH & TWEAK with KORG” Package here).
- The “PATCH & TWEAK with KORG” book can be purchased separately (*) from www.bjooks.com and international retailers.

Technical Specifications

Dimensions
12.9 x 7.8 x 3.9 cm (5.08 x 3.07 x 1.53 inches)

Weight
130g (excluding batteries) (4.6oz)

Power supply
USB type-C (2.0, 500mA max) or 2x AAA batteries (average 2 hours operating time)

Entries
Input: 3.5mm Stereo x2, ±10V max
Through Output: 3.5mm Stereo x2
Output: 3.5mm Mono x2, ±5V max

Oscilloscope
Display modes: Single, Stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch、XY(Lissajous, 2ch)
Vertical: 10mV~5V/div, AC/DC Switchable MODE
Horizontal: 50us~1s/div
Trigger: Auto, Rise, Fall, Single(rise), Single(fall)

FFT (Spectrum Analyzer)
Input: mono (1L, 1R, 2L, 2R)
Frequency: 0Hz~20kHz

Function Generator
Wave type: sine, square, triangle, saw, noise, pulse, envelope
Frequency: 1Hz~10kHz, Hz/NOTE mode switchable, [1ms~10s,sec/BPM switchable(pulse, envelope mode)]
Output Level: 10Vpp max, V/dB switchable mode

Tuner
Display mode: Needle, Meter
Input: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
Calibration: 410-480Hz
