The most captivating and comprehensive collection of sounds ever put into a Korg synthesizer

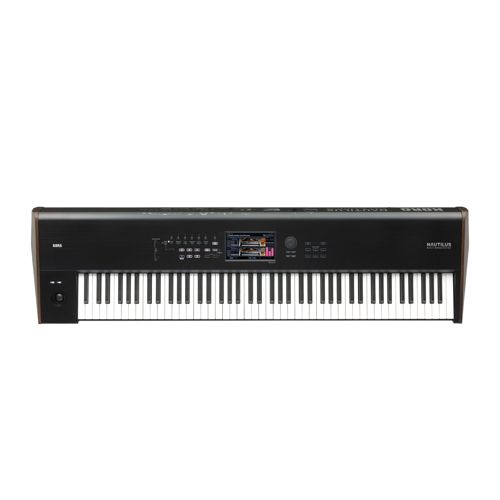

NAUTILUS pushes the boundaries of what a performance synthesizer and a workstation can do. With the power of nine sound engines that take a new approach to sound with a wealth of sampling, recording, effects and processing power, and processing speeds that will get you where you want to be faster than ever before, there is no other synth that offers more features to explore sonically. Korg has spent years developing our digital, analog, processing and hardware technologies, and delivering them all in a way that helps musicians connect with their instrument. The result is the incredibly powerful, one-of-a-kind NAUTILUS.
Technical Specifications
System, Keyboard
System
NAUTILUS System Version 1.0
Keyboard
88 keys: RH3 (Real Weighted Hammer Action 3), A - C 73 keys: Semi-Weighted with Natural Touch, C to C 61 keys: Semi-Weighted with Natural Touch, C – C Velocity sensitivity is supported, after touch is not supported.
Ton Production
Types of Synthesis
9 SGX-2: Premium Piano (Acoustic Piano) EP-1: MDS Electric Piano (Electro Piano) HD-1: High Definition Synthesizer (PCM) AL-1: Analog Synthesizer (Analog Modeling) CX-3: Tonewheel Organ (Tonewheel Organ Modeling) STR-1: Plucked String (Physical Modeling) MOD-7: Waveshaping VPM Synthesizer (VPM Synthesis) MS-20EX: Component Modeling Technology (Analog Modeling) PolysixEX: Component Modeling Technology (CMT Analog Modeling)
1: In rare cases when many processor-intensive effects are active simultaneously (e.g. more than 14 O-Verbs), polyphony may be slightly reduced. *2: Part of the multi-core processor in NAUTILUS is dedicated to generating sounds, while a separate part is dedicated to creating effects. NAUTILUS dynamically shares audio processing power between engines as needed. Maximum number of voices quoted applies when 100% of audio processing power is dedicated to a single engine. * 3: 100 dual-stereo notes (equivalent to 400 mono sounds)
EXs301: German2 D Piano EXs302: Italian F Piano EXs303: Japanese Upright U Piano EXs304: Prepared Piano EXs305: Historical Keyboards EXs306: Vintage Keyboards 2 EXs307: Strings & Synths EXs308: Guitar Collection EXs309: Bass Collection EXs310: World Essence EXs311: Background Loops EXs312: SFX & Hits EXs313: Found Percussions EXs314: Expansion Drums
PCM RAM Capacity
Average. 2GB *4
*4: Available memory for Sampling Mode will vary depending on the use of Expansion PCM libraries and User Sample Banks. Approx. 760MB available when shipped from the factory (when loading the file named “PRELOAD.KSC”).
Wave Sequences
598 User memory, 377 Preloaded Support for stereo multisample, synchronization of individual notes, and tempo-based settings.
Combination
Number of Timbres, Master Keyboard Feature
16 Maximum Keyboard and velocity splits, layers and crossfades for up to 16 programs and/or external MIDI devices The tone adjustment parameter function lets you change program settings, and the Master keyboard function lets you control external MIDI devices
Advanced Vector Synthesis
Control oscillator volumes and synth and effects parameters via the Vector Joystick and tempo-synced Vector Envelope
Fast Layer / Split feature
Drumkit
Assignable stereo/mono samples with 8 velocity zones per oscillator (with crossfade)
128 set lists, 128 slots per set list Each set list provides a 9-band graphic EQ and a Tone Adjust function that allows adjustment of program settings. Transpose setting Soft Sound Transition (SST) Hold Time adjustment supported for each slot
Sampling
System
Open Sampling System (resampling, In-Track sampling)
Bit Depth/Sampling Frequency
RAM 16-bit/48 kHz stereo/mono sampling DISK 16 or 24-bit/48 kHz
Sampling Time
RAM Depends on amount of PCM RAM available DISK Maximum 80 minutes stereo (879MB: 16bit)
Sample Regions
16,000 samples/4,000 multisample (128 indexes per multisample)
Formats
KORG format, AKAI S1000/S3000 data (with advanced Program parameter conversion); SoundFont 2.0, AIFF, and WAVE formats
Editing
Time Stretch, Time Slice, Crossfade Loop, and other standard editing features.
Effects
Insert Effects
12 Stereo in / stereo out
Master Effects
2 Stereo in / stereo out
Total Effects
2 Stereo in / stereo out
Timbre EQ
A 3-band EQ for each tone/track
Types of Effects
197
Modulation
Dynamic Modulation and Common LFO
Effects and Control Buses
Stereo side-chain for compressors, gates, vocoders etc.
Effect Presets
Total 783 presets, maximum 32 per 1 effect (User Preset)
Arpeggiator
Arpeggiator Modules
One module in Program mode, two modules in Combination and Sequencer modes
Arpeggio Pattern
5 presets + ARP A 2,048 slots (1,593 preloaded) + ARP B 128 slots
Controls
On/Off, Latch, Gate, Velocity, Length, Swing, Tempo
Drum Track
Preset Patterns
1,272 (common with MIDI sequencer preset patterns)
User Patterns
1,000 Patterns created in sequencer mode can be converted to drum track user patterns.
Trigger Mode/ Sync / Zone / Swing, Drum SD, Tempo settings can be specified.
Sequencer / HDR
Tracks
16-track MIDI sequencer + 16-track hard disk recorder + 1 master track.
Number of songs
200
Resolution
1/480
Tempo
40.00 – 300.00 (1/100 BPM resolution)
Maximum memory
400,000 MIDI events or 300,000 audio events
MIDI Tracks
16 channels plus master track, 697 presets / 100 user patterns (per song), 18 presets / 16 user template songs
Audio Tracks
16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit Maximum Single-file recording time (mono): 80 minutes Automation: Volume, Pan, EQ, and Send1/2 10,000 zones (max.) Event Anchors, BPM Adjustment
Other Features
RPPR (Real Time Pattern Playback and Recording): 1 Pattern set per song Automatic Song Setup function
General
Disk Mode
Load, save, utility, data filing function (save/load MIDI System Special data), CD-R/RW (UDF format read/write), ISO9660 Level 1.
TouchView graphical user interface, 7 inch color TFT, WVGA (800 x 480 dots), adjustable brightness
Key Features
Frequency Response 20Hz-22kHz, +/-1.0dB, 10k Ω load
THD+N 20Hz-22kHz, 0.01%, 10k Ω load (typical)
S/N 95dB (typical)
Dynamic Range 95dB (typical)
Crosstalk 95dB at 1kHz (typical)
Outputs
L/MONO, R, Also 1-4 1/4” TRS Balanced Output Impedance: 350 Ω Stereo; 175 Ω Mono (L/MONO only), Nominal Level: +4.0 dBu, Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater) MAIN VOLUME slider controls only AUDIO OUTPUT (MAIN) L/MONO and R
Earphones 1/4” stereo phone jack Output impedance: 33 Ω, Maximum Level: 60+60 mW (when load impedance is 33 Ω), MAIN VOLUME knob (connected with AUDIO OUTPUT (MAIN))
USB-B 24-bit, Sample Rate: 48 kHz, 2 channels (AUDIO OUTPUT (MAIN) Digital output of the same signals as L / MONO and R)
Entries
Audio Input 1 and 2 1/4” TRS Balanced Input Impedance: 10 kΩ Nominal Level: LINE +4 dBu Maximum Level: LINE +16dBu Nominal Level: MIC –22dBu Maximum Level: MIC -10dBu Brandy Impedance: 600 Ω
USB A (TYPE A) For connection to external USB devices (QWERTY keyboards, MIDI controllers, Ethernet adapters and storage) USB B (TYPE B) MIDI/audio interface, MIDI: 1 (16 channels) in / 1 (16 channels) out, Audio: 2 channels in / 2 channels out * 2 USB high-speed ports (supports 480Mbps)
Disk Drives
60GB SSD (2.5”)
Power supply
AC power supply terminal, Power switch
Dimensions: (W x D x H)
88 keys: 1,437 x 387 x 139 mm / 56.57” x 15.24” x 5.47” 73 keys: 1,227 x 386 x 116 mm / 48.31” x 15.20” x 4.57” 61 keys: 1,062 x 386 x 116 mm / 41.81” x 15.20” x 4.57”
Weight
88 keys: 23.1 kg / 50.93 lbs. 73 keys: 14.6 kg / 32.19 lbs. 61 keys: 13.0 kg / 28.66 lbs.
