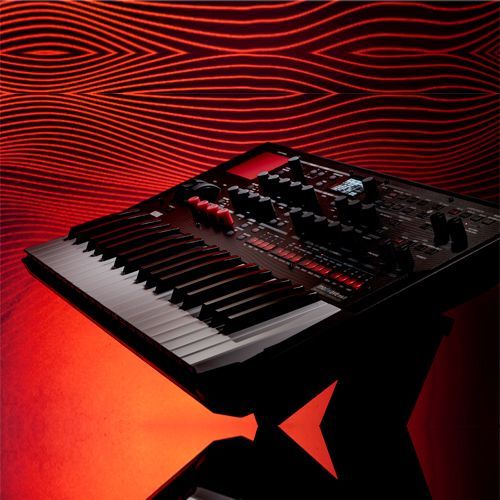

Synthesis powerhouse with distinctive wavetable tones, Kaoss Physics, and Motion Sequencing 2.0.

Introducing Modwave mkII - Nearly twice the polyphony, expanded free-running LFOs, and more!

In 1985, KORG's DW-8000 combined a digital wavetable with rich analog filters to give users sounds that were impossible to create with analog oscillators. It remains a cult favorite today.

modwave builds on the DW legacy and transforms it into a modern beast of a synthesizer featuring incredibly deep wavetable oscillators, incredible filters, highly flexible modulation, unparalleled polyphony, extensive pattern sequencing and instantly gratifying hands-on buttons for unparalleled, powerful and easy control, creating customisable sounds and musical phrases.

modwave also introduces two unique new tools for creating dynamic motion: Kaoss Physics and Motion Sequencing 2.0. Kaoss Physics combines the x/y Kaoss pad with modulatable game physics to create a responsive, interactive controller that is not only powerful but also a ton of fun to explore. Motion Sequencing 2.0 expands the world of motion sequencing by including organic, ever-evolving models like Wave Sequencing 2.0 found in wavestate, multiple lanes, and real-time recording to help you create complex, evolving expressions in ways other step sequencers can’t.

Like Wave Sequencing 2.0 (wavestate) and altered FM (opsix), modwave’s advanced wavetable synthesis delivers its own brand of completely unique sounds, along with knob-per-function functionality that makes customizing those sounds quick and easy. Powered by this new architecture, there are hundreds of preloaded sounds, organized by category buttons on the front panel, all instantly customizable via four Mod Knobs. modwave’s distinctive wavetable sounds begin with aggressive basslines, leads, and expansive ambient pads that add a new dimension to your tracks. But that’s just the beginning.

Those who want to dig deeper will find an endless source of discovery; thanks to modwave's unique synth structure, you'll be finding new things for a very long time. Save as many of your sounds as you want; there are thousands of places to find them. You can also load your own samples, import wavetables in standard formats, and create your own wavetables using the free WaveEdit software.

The new modwave mkII provides a staggering 60 polyphony voices, almost double the original modwave's 32 voices and an unprecedented number for a wavetable synth at any price. Responding to user requests, we've updated all LFOs with free-running, delayed start and re-triggering options. We've also added a before/after switch for reverb sends, new modulation sources and more.

modwave synthesis engine

When we call wavetable oscillators “deep,” we’re not kidding. Start with over 200 wavetables, each containing up to 64 waveforms made up of thousands of individual waves. Use over 30 Modifiers to change their basic character and 13 Morph Types to manipulate them in real time. Create new hybrids from any two wavetables using the unique, real-time A/B Blend. With some quick math, that’s over 230 million wavetable variations right out of the box, and that’s before you even add modulation.

And there's no need to stop there! Expand your palette even further by importing new wavetables using the Editor/Librarian software. Try out the many free and commercial wavetable libraries in the standard Serum* format, or create your own using the free, cross-platform WaveEdit, available in a special version for modwave. Layer wavetables with samples from the internal, high-memory PCM library, or import up to 4GB of your own samples using Korg's Sample Builder software.

* If an imported wavetable has more than 64 waveforms, it is assumed to be a rendered crossfade and some of the intermediate waveforms are dropped to create the 64 waveform version.

Each Program includes two full-featured wavetable oscillators, plus a sub oscillator/noise generator and one of a dozen stereo filter types, including the aggressive MS-20, the sweet Polysix, and the newly developed Multi Filter. Liven up every parameter using the highly flexible modulation system, which includes four triggerable envelopes, five LFOs, dual mode processors, and two key-track generators, as well as Multi-lane Motion Sequencing and Kaoss Physics.

Despite all this synth power, the modwave mkII still achieves an incredible 60-voice polyphony for a wavetable synth, playing four simultaneous wavetables per voice in a single Program. Layer two Programs together to double the possibilities.

Chaos Physics

Kaoss Physics models a ball rolling on a surface and bouncing off walls. The surface can be tilted in any direction. A bump with varying height/depth and position can either attract or repel the ball. Adjustable friction slows down the ball's motion, and adjustable time controls the speed of the entire model. All of these features are modulatable, so you can change them in real time.

Move the ball by flicking your finger on the X/Y pad, or start the ball automatically using another modulation source. You can also control the ball directly by holding your finger on the pad. The ball's position generates eight modulation signals that can be used to control any modulation target: X and Y positions, distance from center, angle relative to the X axis, and finally separate signals for +/- X and

The walls can slow the ball down as if it were cushioned, or speed it up like bumpers on a pinball machine. The walls can be removed entirely so that the surface wraps around opposite edges like an old arcade game.

The environment being modeled can create certain modulation effects. For example, use a centered bump with a negative height so that the modulation values ​​eventually return to 0. Or position a bump with a positive height at an edge or corner to push the modulation values ​​away from that area.

The result is interactive control that amplifies your physical movements and transforms them into complex musical results. And did we mention how much fun it is, too?

Motion Sequencing 2.0

Motion Sequencing 2.0 is an evolution of Wave State's Wave Sequencing 2.0 feature. Timing, Pitch, Shape and four sets of Step Sequence values ​​are divided into "Lanes", each with their own loop start and loop end, adding a deeper, more customizable level of section and modulation recording.

Each time the sequence moves forward, all Strips are combined to create the sound output. For example, a step sequence value can be mapped to a different timing, pitch, and shape each time it is played. You can modulate the loop points of each Strip on a per-note basis using velocity, LFOs, envelopes, Mod Knobs, or other knobs. Each note in a chord can play something different!

Strips can also randomize the step order each time they are played. Finally, individual steps can be randomly skipped with a modulatable probability from 0% to 100%. The result is organic, ever-changing sounds that respond to your control. The built-in dual arpeggiators can interact with Motion Sequence for even more possibilities.

Dive deep into the synth engine

What is Wavetable?

Wavetables are sets of single-cycle digital waveforms arranged in a specific order. The "position" of the wavetable determines which waveform is played. Moving the position with an envelope, LFO, or other modulation source produces subtle or dramatic changes in timbre. Some wavetable systems switch abruptly from one waveform to another; other wavetable systems smoothly transition between them. Modwave can do both.

Modifiers

Use over 30 Modifiers to change any wavetable character while loading. For example, isolate odd or even harmonics, add weight via anti-aliased quantization or saturation, or revisit the gritty character of old-school wavetable synths with Vintage 8 and 12 options.

Morph

13 Morph Types let you stretch, compress, reflect, and otherwise manipulate wavetables in real time, changing their timbre and creating additional movement in the sound when modulated. Sync creates classic swept-sync tones using just a single oscillator. Three dedicated Morph Types (FM, AM, and Ring Mod) modulate Osc 2 with Osc 1, and the last two can even be applied to samples.

A/B Blend

Using the unique A/B mode, oscillators can blend any two wavetables with phase-synchronous precision (unlike sounds that can simply be layered), opening up a different dimension with intermediate waveforms. For example, add body to “thin” waveforms or a touch of sizzle to a soft timbre. Even switch between two different “modifier” versions of the same wavetable. The A/B Mix can of course be modulated in real time.

Gigabytes of samples

Wavetables also sound great when layered with samples, and modwave's oscillators handle this with aplomb. Totaling in the gigabytes, modwave's sample library includes new material from KORG, Airwave and Francis Preve, as well as a bank from Plugin Guru and a selection from the KRONOS and KROME libraries.

Choose your filter

Add vintage character to your sounds with the aggressive MS-20 Lowpass or Highpass filters or the punchy, sweet Polysix Lowpass; all newly enhanced with gain controls to make it easier to dial in resonant timbres. Shape and enhance your sounds with a full collection of resonant 2-pole and 4-pole Low Pass, High Pass, Band Pass, and Band Reject filters. Or go against the grain with KORG's unique Multi Filter, which creates modulatable mixes of multiple modes simultaneously - now with presets on the front-panel knob for easier exploration of the many possibilities.

Numerous controls and modulations

Packed with knobs and controls, modwave invites you to explore modwave. Oscillators, filters, envelopes, LFOs, and effects are at your fingertips with dedicated front-panel controls. Four programmable Mod Knobs are customized to get the most out of each sound. Use the knobs in real-time performance and save the results as new sounds. The Hold button lets you sustain notes or chords indefinitely while exploring the front-panel controls or playing other hardware.

Add in Kaoss Physics, Pitch Bend, and Modulation Wheels, and you'll always have multiple dimensions of real-time expression.

Want to dig even deeper? Almost all of the front panel knobs and most of the on-screen parameters can be modulated. You can even change the settings for each Motion Sequence Step! Mod Processors let you transform modulation signals using quantization, smoothing, curvature, and more.

An arsenal of effects

Modwave’s amazing effects deliver production-ready sounds. Each layer has three separate effects; in addition, the Performance has a master Reverb and parametric EQ. You’ll find standards like compressors, EQs, choruses, flangers, phasers, and stereo delays, as well as different processors like Wave Shaper, Talking Modulator, Reverse Delay, Multiband Mod Delay, and Overb (from OASYS and Kronos). Modeled effects are also included, including VOX guitar amps, VOX wah, multi-head tape echo, and a collection of classic guitar stompboxes.

Inspiring random mode.

Looking for more inspiration? A dedicated front-panel knob marked with a "dice" icon generates new sounds through intelligent randomization. Randomize the entire sound or just parts of it, such as filters, Sample Lanes, or effects. Use the results directly or as a starting point for your own creations.

Editor/Library software

Modwave Editor/Librarian allows you to edit and organize sounds via your macOS or Windows computer (including the latest Apple M1 based systems). It acts as a second front panel for the device, using USB networking for high speed communication, so there is no need to synchronize or transfer data. Animations show the effects of modulation in real time and are very helpful when programming.

Set Lists and Smooth Audio Transitions.

Set Lists provide effortless organization of your Modwave Performances and provide instant access at a gig or rehearsal. Smooth Sound Transitions allow previously played sounds and effects to continue sounding natural, even when a new sound is selected.

Links

Balanced stereo outputs connect to any recording or monitoring system, and a stereo headphone output is provided for solo or on-stage playing. DIN-style MIDI jacks allow connection to other MIDI-equipped instruments and audio gear, and modwave supports class-compliant USB MIDI connections to Windows and macOS computers.

Designed by KORG R&D California.

KORG R&D built the original WAVESTATION, co-created OASYS and KRONOS, and developed the core technologies behind many other KORG instruments. Modwave reflects its unique aesthetic by delivering stunning sound and deep flexibility through cutting-edge technologies. Wavestate's key sound designers Airwave and Peter "Ski" Schwartz joined Francis Preve, Richard Devine, and the KORG sound team to create modwave's incredible sound library.

Free music software package

Modwave comes with a diverse collection of music software to help you take your music to the next level, including Izotope's Ozone Elements for AI-powered mastering, Skoove to hone your keyboard playing skills, and software synthesizers from KORG and other brands.

Modwave native crossfade

Owners of modwave hardware are eligible to purchase a native modwave migration license for the special price of $49.99 USD via a coupon code tied to the unique ID of their modwave hardware. By using the hardware and software versions together, you can have the best of both worlds: a physical device that responds to your touch and full DAW integration. To generate the coupon:

1. Download Modwave system version 2.1 or above, Editor/Librarian 1.3 or above.
2. Update your Modwave hardware and install Editor/Librarian.
3. In Editor/Librarian, open the File menu and select "Get Add-on Coupon..."
4. A dialog box with the coupon code will appear; follow the on-screen instructions to redeem the coupon in the KORG Store.

modwave native

In 1985, KORG's DW-8000 combined digital wavetables with a wealth of analog filters to give users sounds that were impossible to create with analog oscillators. It remains a cult favorite today.

Released in 2021, modwave builds on the DW legacy and transforms it into a modern beast of a synth featuring incredibly deep wavetable oscillators, gorgeous filters, highly flexible modulation, advanced pattern sequencing and macro controls to deliver unique, powerful and easily customisable sounds and features.

Now KORG is pleased to announce modwave native, the fully compatible software version of the hardware modwave synthesizer. modwave native is available in VST3, AAX, and standalone formats on both macOS and Windows, as well as AU on macOS. You can seamlessly exchange sounds between hardware and software. Produce in your DAW with modwave native, and then play the same sounds on stage using modwave hardware. Create sounds with the hardware's hands-on interface and share them with a computer-based collaborator. You can also use any of the many third-party sound libraries available for hardware modwave, as well as sample libraries designed for modwave or wavestate.

Technical Specifications

System
Keyboard: 37 keys (velocity and release-velocity sensitive)
Maximum Polyphony: 60 stereo voices
Sound generating system: modwave synthesis engine

Modulation
Controls: Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Buttons
Other Resources: 4x Envelop, 5x LFO, 2x Mod Processor, 2x Key Track, Seq Lanes AD, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external only MIDI), MIDI CCs +/-, MIDI CCs +
Targets: Most parameters can be modulated, including the parameters of individual Motion Sequencing Steps. Depending on the Motion Sequence length, there can be over 1,000 potential modulation targets per Program.

Effects
Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
Master Reverb: Early Reflections, Overb
Master EQ: 4-band parametric EQ

General
Inputs/outputs: Headphones (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jack), DAMPER (6.3 mm phone jack, half damper not supported), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V, 2500mA)
Power consumption: 5W
Dimensions (W × D × H): 565 × 338 × 92 mm/22.24” × 13.31” × 3.62”
Weight: 2.9kg/6.93lbs.
Included items: AC adapter, Precautions, Quick Start Guide
Accessories (sold separately): DS-1H damper pedal, PS-1 switch pedal, PS-3 switch pedal

*Specifications and appearance are subject to change without notice.
*All product names and company names are trademarks or registered trademarks of their respective owners.
