M60 FET Cardioid
62,307.65TLKDV dahil
2 ürünler Stokta Show extra info for delivery time
Açıklama
Telefunken M60 FET Cardioid
Small Diaphragm Condenser Instrument Microphone: Comes with TK60 Cardioid Polar Pattern Capsule and M60 FET Amplifier.
The M60 FET Cardioid package features an M60 amplifier paired with a TK60 cardioid polar pattern capsule. The TK60 features a 15mm diameter, 6-micron gold-plated membrane that has a surprisingly full low end and a fast, accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy peak at 8 kHz, making it ideal for drums, hi-hats and cymbals, piano, acoustic guitar, and other acoustic instruments.
Sonic Characteristics
The M60 FET's incredibly fast transient response captures nuances and subtleties with impressive precision and clarity. This results in a highly detailed sonic result that is perfectly suited to the complex character of stringed instruments and percussion.
Circuit design
Utilizing a unique proprietary circuit topology, this reinterpretation of the classic FET microphone amplifier offers exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-assembled onto a gold-plated circuit board to deliver an ultra-clean, true Class-A amplifier with +/- 2dB frequency response from 20 Hz to 50 kHz. The output is coupled with a custom American-made transformer that delivers especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.
Construction
The M60 FET amplifier housing is finished in a durable, lightly textured black powder coat finish, adorned with the historic TELEFUNKEN diamond badge. The microphone's XLR connector housing is finished in a matte black nickel-plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel-plated housing with a fine gold mesh pattern.
Internal Accessories

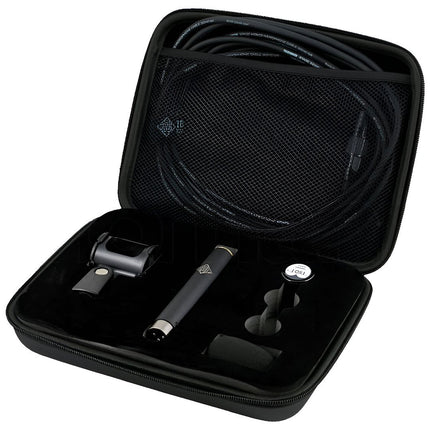

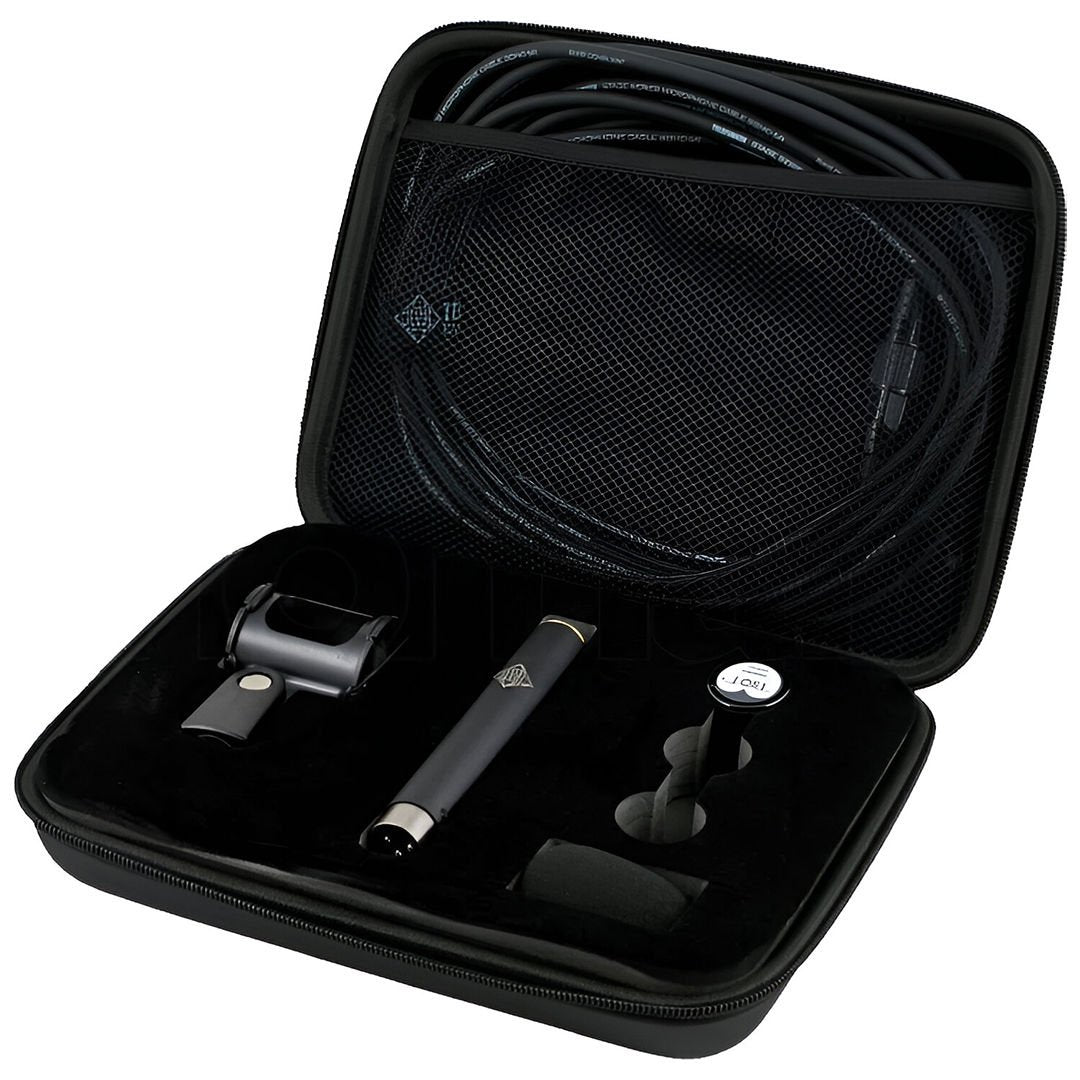

The M60 FET Cardioid system comes with a 5-meter SGMC-5R XLR cable with right-angle female connector, an M761 elastic shock mount and a microphone windshield, all packaged in a ZC61 zippered carrying case.
Additional Accessories
Technical specifications
Type: Pressure Gradient Condenser
Capsule: TK60 - 15 mm Edge Terminated Diaphragm
Tube Type: Active FET Transistor (No Vacuum Tube)
Transformer: Custom Wound TELEFUNKEN T61CT
Polar Pattern: Cardioid
Frequency range: 20 Hz - 31.5 kHz, ± 2 dB (Amplifier)
Sensitivity: 8.6mV/PA, ±1dB
THD at 1KHZ at 1Pa (Amplifier): < 0.01%
Output impedance: 120 Ω
Maximum SPL (for 1% THD): > 130dB
S/N Ratio: > 89dBA
Self Noise (Amplifier): ≤ 5 dBA
Dimensions: 140mm L x 21mm Dia
Weight: 110g
Energy drawn: 2 mA
Power requirement: +48 VDC Phantom Power
Cable: SGMC-5R - 5 Metre (16.9ft) Cable, Right Angle Female 3 Pin XLR, 3 Pin Male XLR
Shockmount: M 961 – Suspended Elastic Mount
Flight Case: ZC61 - Soft Foam Zipper Case for Stereo Set ZC62
