GRANDSTAGE-73
78,850.00TLKDV dahil
2 ürünler Stokta Show extra info for delivery time
Açıklama

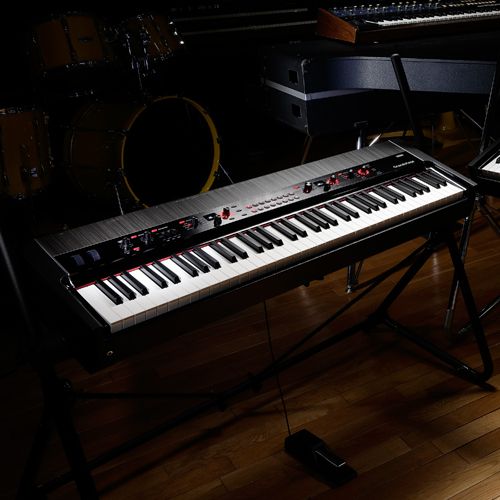

KORG Grandstage provides a perfect playing experience to amaze you with your stage performance.
- Sound engines that deliver the highest level of stage sound excellence
- A user interface designed for playability for easy on-stage playback.
- Easy to control reverb and delay.
- Dynamics knob that lets you instantly control the sharpness and expression of the sound.
- Favorite buttons let you instantly select the sound you want.
- Smooth voice transition creates a natural feeling change when changing voice.
- The three-band equalizer lets you shape your sound.
- The layer/split feature allows you to combine sounds easily.
- Panel lock prevents unintentional operation.
- The RH3 keyboard responds to even the most subtle nuances of your playing.
- A design that combines elegance and personality.
- Includes music stand, pedal and keyboard stand.
- Made in Japan – Premium Japanese Quality.
Technical Specifications
Keyboard:
73-key: RH3 (Real Weighted Hammer Action 3), E1–E7, velocity sensitive, does not support aftertouch
Ton Producer
Synthesis and Maximum Polyphony methods*:
- SGX-2 (Acoustic Piano Sound Engine): 60 dual stereo notes (equivalent to 240 voices max.)
- EP-1 (Electronic Piano Sound Engine): 100 voices
- AL-1 (Analog Modeling Sound Engine): 36 voices
- CX-3 (Tonewheel Organ Sound Engine): 128 voices
- VOX Organ (Transistor Organ Sound Engine): 100 sounds
- Compact Organ (Transistor Organ Sound Engine): 100 sounds
- HD-1 (PCM Sound Engine: 64 stereo notes (equivalent to 128 voices max.)
Average 19 GB (average 32 GB using linear conversion)
Number of voices:
500
Favorites:
64 (including 32 preloads)
| * | Actual polyphony will vary depending on the synthesis engines and effects used. |
|---|---|
| * | KORG's proprietary system dynamically allocates sound processing power among the synth engines. Maximum audio numbers quoted apply when 100% of audio processing power is dedicated to a single engine. |
-
Insert Effect for Audio Programs:
3-band EQ and four insert effects.
-
Reverb/Delay Section:
REVERB / DELAY button, Type select button, DEPTH button, TIME-TAP button Select 1 of Reverb type ((HALL, STAGE, ROOM, SPRING), Delay type (DELAY, CROSS, TAPE, MOD DLY). DEPTH, TIME (Tap) parameter can be edited by the user.
-
Equalizer Section:
EQUALIZER knob, LOW, MID, HIGH slider (3-band Equalizer)
Demo songs:
16
Panel Interface: - FAVORITE
- 64 (A–H: 8, 1–8: 8), WRITE key
- KEYBOARDS
- Category selector button, Display (128 x 64 dots), LEVEL button, VARIATION button, EDIT button
- ENSEMBLE
- Category selector button, Display (128 x 64 dots), LEVEL button, VARIATION button, EDIT button
- Dynamics section
- DYNAMICS key, DYNAMICS button
Controls how volume and sound respond to changes in keyboard touch. - Other
- SPLIT button, SWAP button, EXIT (PANEL LOCK) button, SYSTEM button, TRANSPOSE button, DEMO (SYSTEM button + TRANSPOSE button)
- Real-time controls
- Pitch bend wheel, Modulation wheel, SW1 knob, SW2 knob
- Master Volume
- MASTER VOLUME button
-
Detail features:
Frequency response - 20 Hz–22 kHz: +/-1.0 dB, 10 k ohm load
- THD+N
- 20 Hz–22 kHz: 0.005%, 10 k ohm load
- S/N ratio
- 105dB, 10k ohm load
-
Audio output:
Audio output (L/R): XLR: - Connection: XLR-3-32 type (balanced)
Output impedance: 600 ohms
Maximum Level: +16dBu
Load Impedance: 10 k ohm
LIFT - GND switch
- Audio output (L/Mono, R): phone
- Connection: 6.3 mm TS phone jack (unbalanced)
Output Impedance: 1.1 k ohm stereo; 600 ohm mono (L/Mono Only)
Maximum Level: +16dBu
Load Impedance: 10 k ohm
- Earphones
- Connection: 6.3mm stereo phone jack
Output impedance: 50 ohms
Maximum level: 150mW + 150mW @32ohms
-
General features:
Foot Controls - DAMPER (half-pedal assisted), SWITCH, PEDAL
- MIDI
- Entry, Exit
- USB
- USB A (A type) x1: For connecting USB storage device
USB B (B type) x1: USB-MIDI Interface
- Power supply
- AC Power Supply terminal, Power switch
- Dimensions (W x D x H)
- 88-key: 1311 mm x 359 mm x 140 mm / 51.64" x 14.13" x 5.51" (excluding music stand)
73-key: 1099 mm x 359 mm x 140 mm / 43.27" x 14.13" x 5.51" (excluding music stand)
- Weight
- 88-key: 20.0 kg / 44.09 lbs (excluding music stand)
73-key: 17.0 kg / 37.48 lbs (excluding music stand)
- Power Consumption
- 30W
- Internal Items
- AC cable, Music stand, Damper pedal (DS-1H) Keyboard Stand (Standard-M-SV)
-
Accessories:
Expression/Volume Pedal - XVP-20
XVP-10
- Foot Controls
- EXP-2
- Switch Pedal
- PS-3
PS-1
- Hard case
- HC-Grandstage 88 (special hard case for 88-key model)
HC-Grandstage 73 (special hard case for 73-key model)
| * | All product, company and standard names are trademarks or registered trademarks of their respective owners. |
|---|---|
| * | The appearance and specifications of the products are subject to change without notice. |
