Lake People G101 High Quality 2-Channel Hifi | RCA-Stereo Desktop Headphone Amplifier for Studio Headphones | Can be used with headphones from 8...600ohm without any problems.
Flexible monitoring on the road or in the studio
The Lake People G101 combines quality, power and compact mobility for a wide range of applications in audio, video and sound reproduction. What makes the G101 unique is its robust construction with precise, variable amplification suitable for headphones from 8 to 600 ohms (including PRE-GAIN as a top feature) and its connectivity options: Options such as USB-C power supply and a 3.5 mm jack for in-ear monitoring make the device suitable for a wide range of applications, whether on a laptop or stationary via RCA connections.
Lake People G101 includes everything that is still important to us today:
•Robust, indestructible amplifiers with high transmission quality
•Long-term stable Alps RK14 potentiometers for volume control
•18mm volume knob milled from aluminum
•More than adequately sized internal power supply
Inputs and Outputs
Analog stereo inputs:
-> 1x RCA, unbalanced
Headphone outputs:
-> 1x jack 6.3mm, unbalanced
-> 1x jack 3.5mm, unbalanced

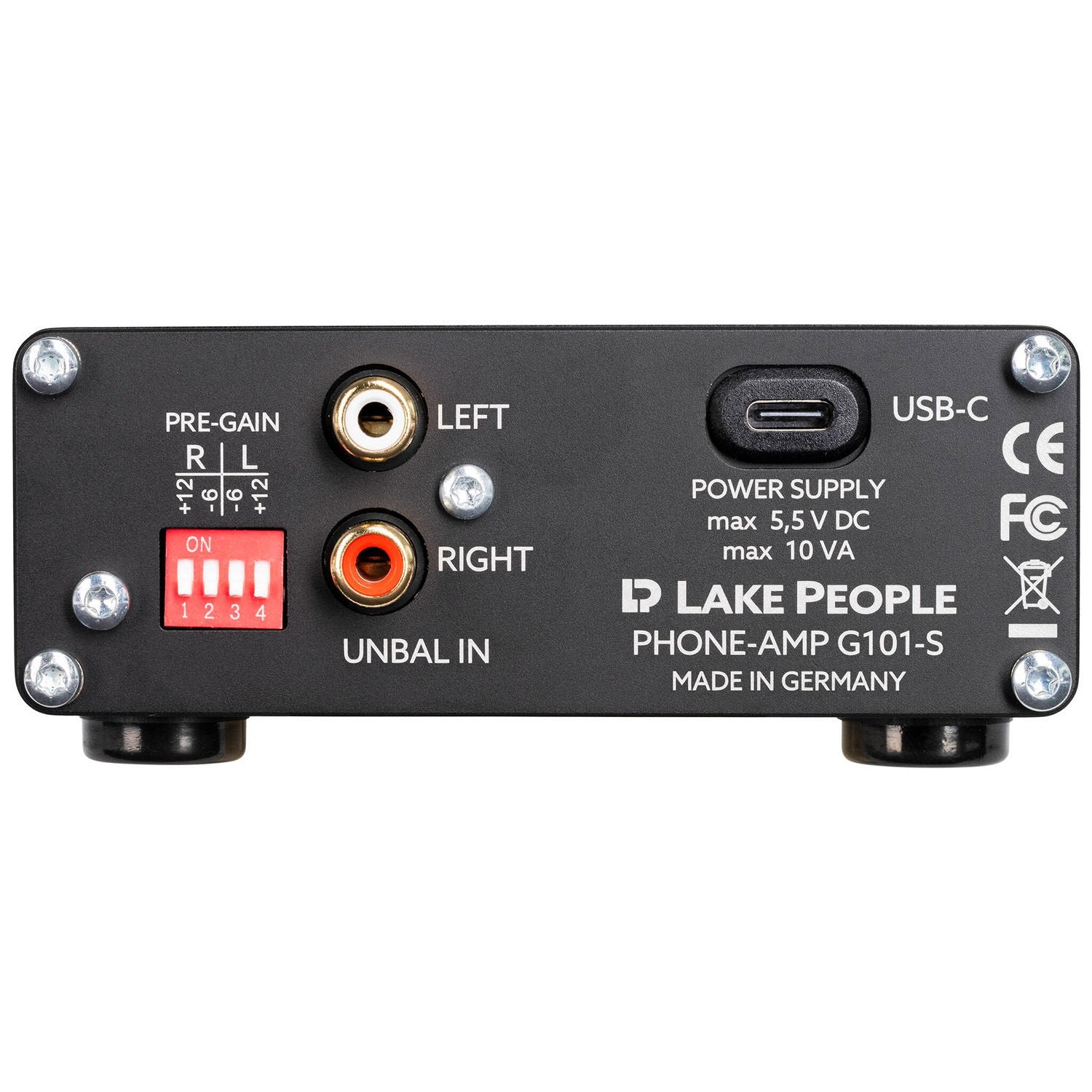

4-way adjustable gain (rear, -6, 0, +6, +12 dB) for optimum adaptation to all sources and headphones.
Unlike similar models, the overall amplification can be adjusted to the headphones used via jumpers on the back of the device. Thanks to this exclusive Lake People technology, the headphone amplifier can be operated with almost all known headphone impedances between 8 and 600 ohms and is as low-noise and dynamic as possible.
Excellent headphone protection
Lake People headphone amplifiers are equipped with various protective circuits to prevent headphone failures. These circuits protect against overvoltages, surges or short circuits that could damage sensitive headphones. The integration of such protection mechanisms ensures that the amplifier always provides safe and stable power to the headphones, which significantly extends their service life.
Highest quality body and parts

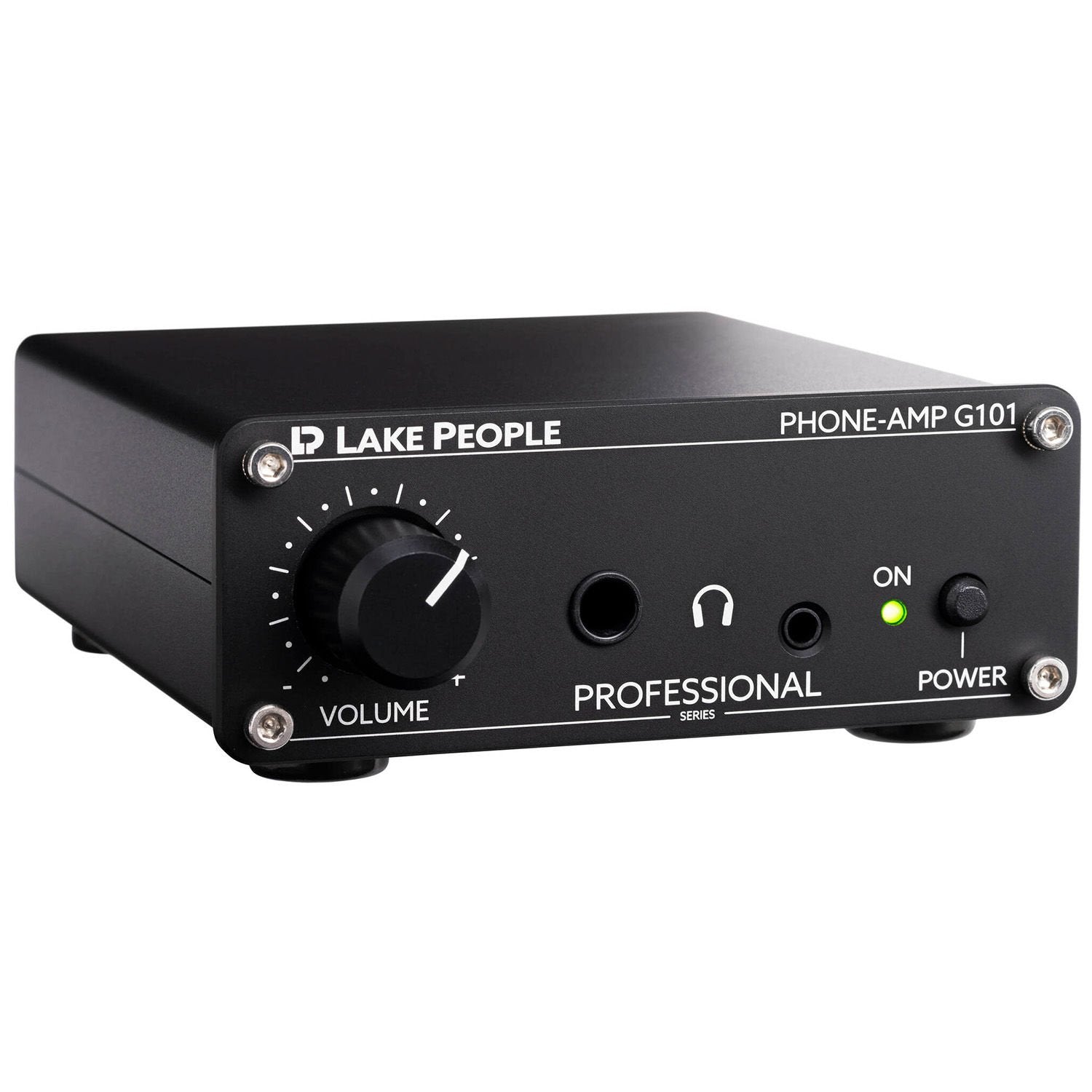

The G101's housing is made of black anodized aluminum. This promises high mechanical stability and resistance to harsh environmental influences. The high electrical conductivity of the surfaces provides excellent EMC properties.
The thickness of the front panel is 3 mm.
The solid-milled 18 mm aluminium rotary knob is characterised by its clear design and forms the centrepiece of the Lake People G103S MKII. Thanks to its well-balanced weight and the Alps RK14 potentiometer, it provides a smooth, high-precision rotary feel for precise volume control.
Open - and go

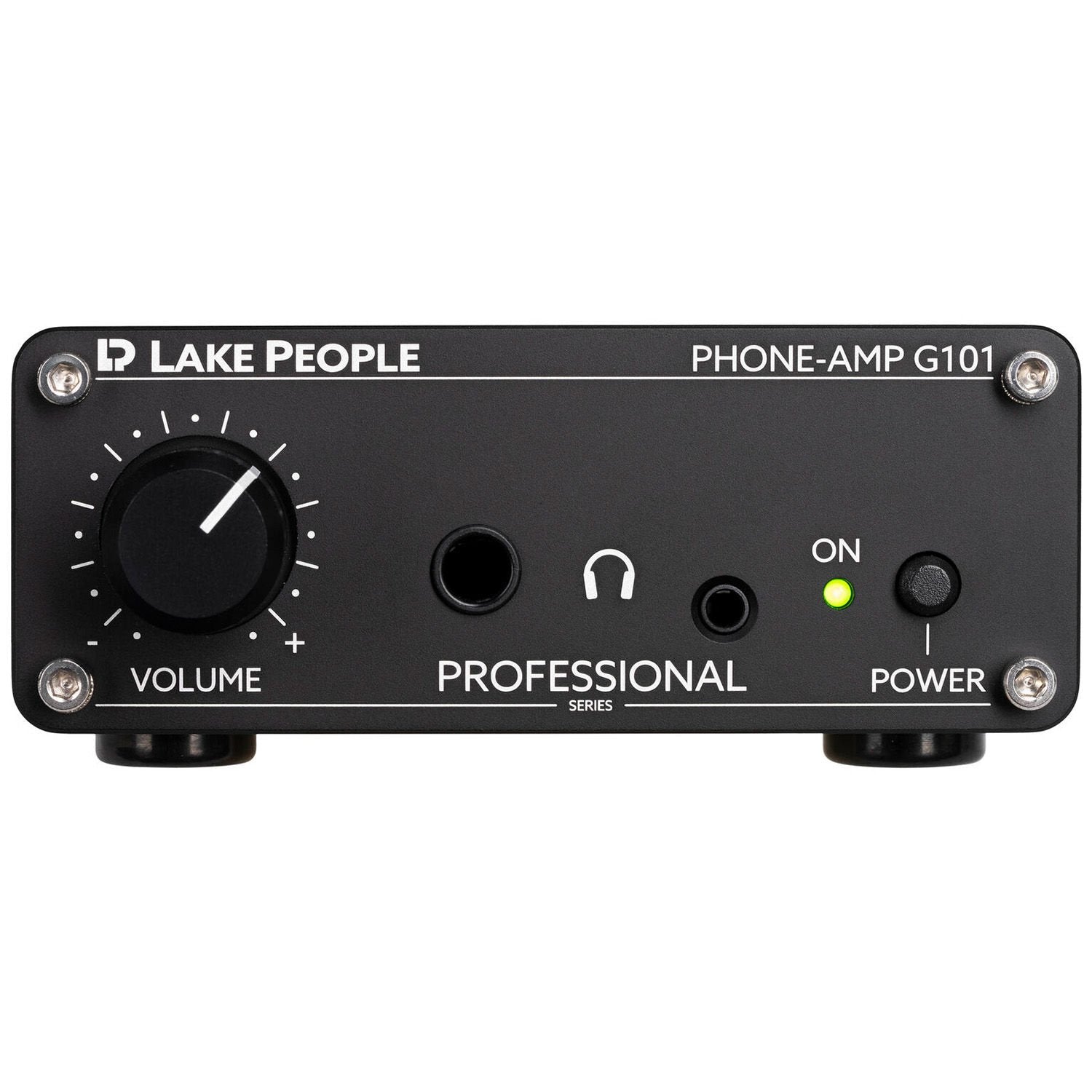

The “POWER” switch is located on the front panel. Lake People G101 is powered by a USB-C power supply (not included)
We recommend the Lake People G101 for the following applications:
Podcast and voiceover productions:
The Lake People G101 facilitates and enhances the precision recording and mixing of audio recordings that require clear and distinct speech reproduction. The G101 enables speakers and sound professionals to immediately detect any errors and achieve optimum results faster.
Video production:
When editing sound for film or video, detailed and pristine audio reproduction is crucial. The Lake People G101 offers the user precise control of audio tracks, which is especially important for dubbing or sound design. Thanks to the RCA inputs, the G101 can be used universally.
Features
•Unbalanced Inputs via gold-plated RCA connectors
•PRE-GAIN: 4-stage gain control on the rear of the unit
•Power Stages with power op-amp OPA551
•Powered by USB-C line (not included)
•Compact and extremely robust aluminium casing
•Made in Germany
Technical Specifications
•Item number: 1008789
•Dynamic range < 124 dB (A-bew.)
•Max Input Voltage +21 dBu
•The amplifier makes 2x Power Op-Amps
•Volume Knob 18 mm Aluminum
•Slimming Brand ALPS RK14
•Dimensions 105 x 38 x 128 mm (WxHxD)
•Output impedance 0.1 Ohm
•Input Sensitivity + 6dBu
•Input Impedance 10 kOhms
•Noise -102 dBu (A-bew.)
•Power supply USB Type C 5V, 2A
•Frequency range 5 Hz - 150 kHz • Crosstalk -90 / -70 dB (@ 15 kHz)
