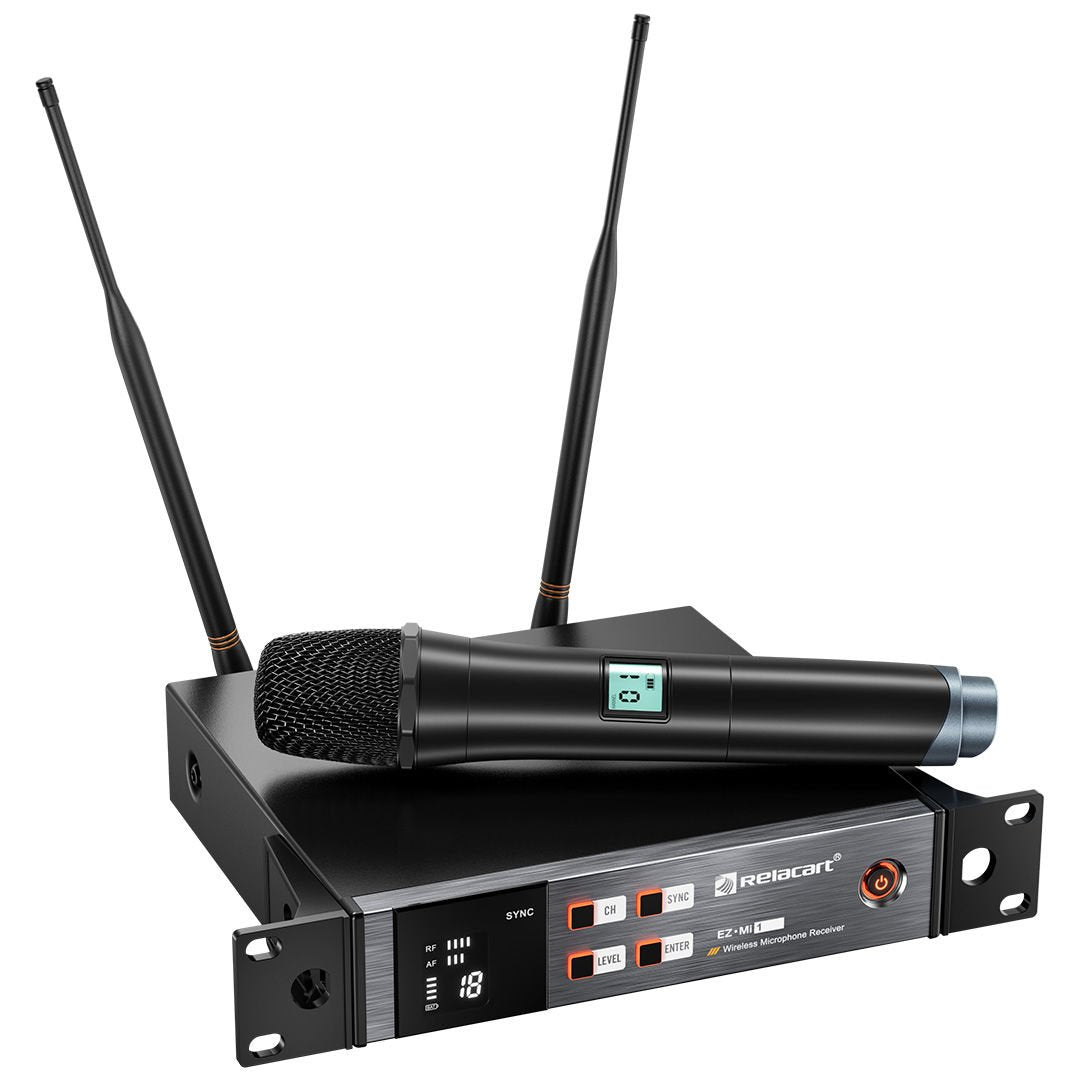

EZ.Mi1 Handheld Mic | Single-Channel True Diversity Wireless Microphone System
9,409.63TLKDV dahil
2 ürünler Stokta Show extra info for delivery time
Açıklama
Single Channel Handheld Microphone & Bodypack Wireless / Wireless Microphone System
EZ. Mi1 is a highly cost-effective Single Channel True Diversity Wireless Microphone System. Its main feature is that the transmitter uses a simple and bright LCD display to display the current channel and battery power, and the receiver uses a high-brightness LED display to display relevant product information. Infrared automatic frequency matching and locking the selected frequency. The receiver adopts a standard 1U chassis, all-metal structure, and the effective working distance is about 60-80 meters. It is suitable for commercial performance, schools, government enterprise projects, personal and family entertainment applications.
UHF Transmission Band
UHF, one to two wireless transmission, provides high-quality sound sources.
Information Screen
LCD and LED display are used to display relevant product information.
Multiple Working Frequency Points
Multiple switchable frequency points for operation without environmental interference
Widely Applicable
It is widely used in commercial performance, schools, government institutional projects, personal and family entertainment applications.
DSP Digital Audio Composition
DSP digital audio compression adopts 48KHz audio sampling rate to minimize the noise in the wireless transmission system.
IR Infrared
IR infrared automatically aligns the frequency and locks the corresponding frequency points.

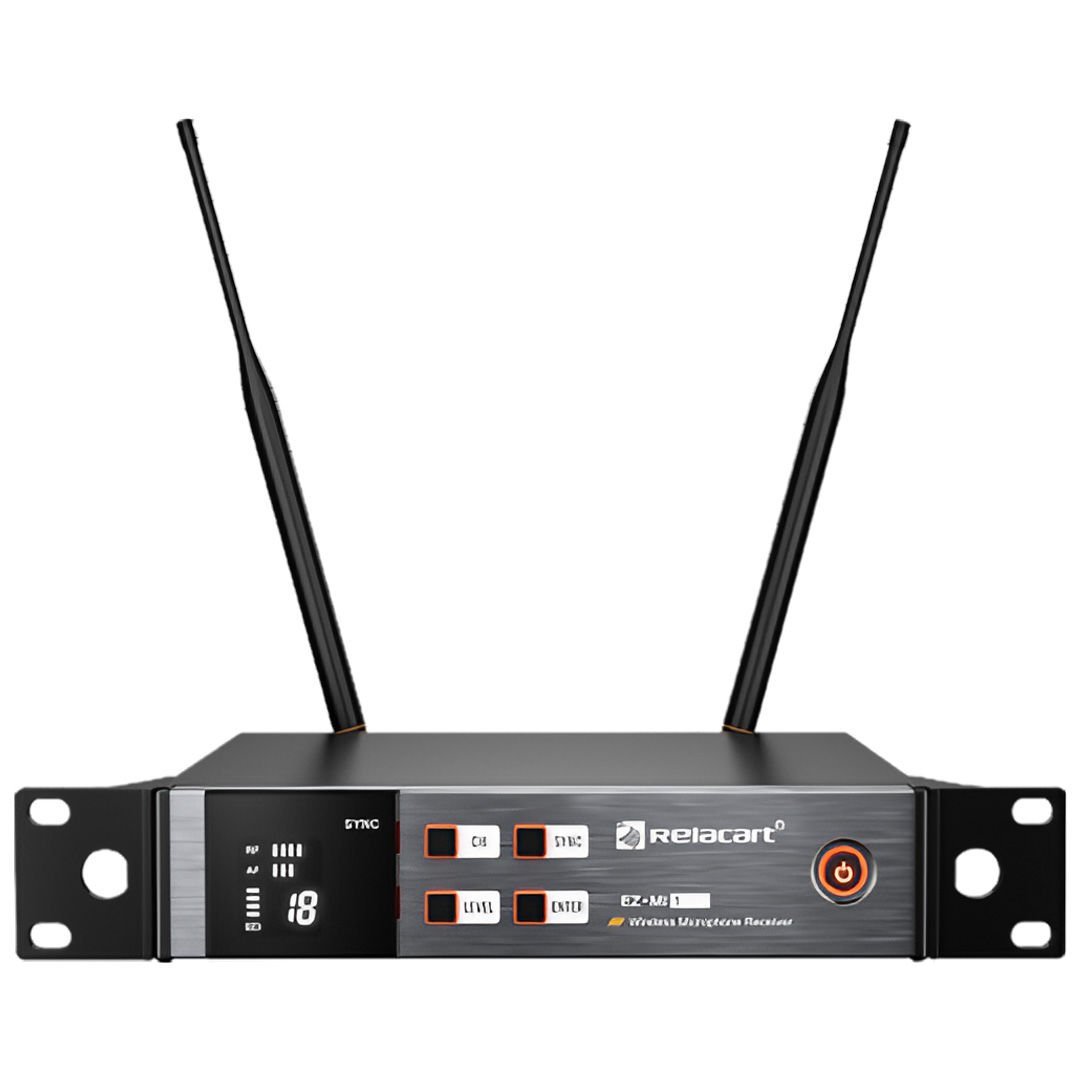

EZ.Mi1 wireless microphone system
• Carrier frequency range: 522-651MHz
• Frequency stability: 0.005%
• Effective working distance (ideal environment): ≥ 60m
• Audio compression: DSP digital audio compression
• Audio sampling rate: 48KHz
• Audio frequency response: 50Hz - 18000Hz ±3dB;
• Dynamic range: 92dB
• Signal to noise ratio (A-weighted): 105 dB
• Total harmonic distortion: ≤ 0.8%, @ 1KHz
• Working temperature range: - 10 ℃ ~ + 50 ℃
• Receiver mode: Single Channel, superheterodyne true diversity receiver;
• Image rejection: 45dBm
• RF sensitivity: S/N ≥ 45dB when 10dBu is input;
• Silence setting: internal setting parameters
• Frequency synchronization mode: infrared SYNC
• Maximum output level: LINE: 0.5Vpp;
• Output level adjustment range: 6-level adjustable, attenuator adjustment, step by step every 3dB;
• Power supply mode: DC 12V/1A
• Normal working current: DC 12V: 250mA
• Dimensions（mm）：205(L) x 209(D) x 43(H)
• Weight (without battery): approx. 990g

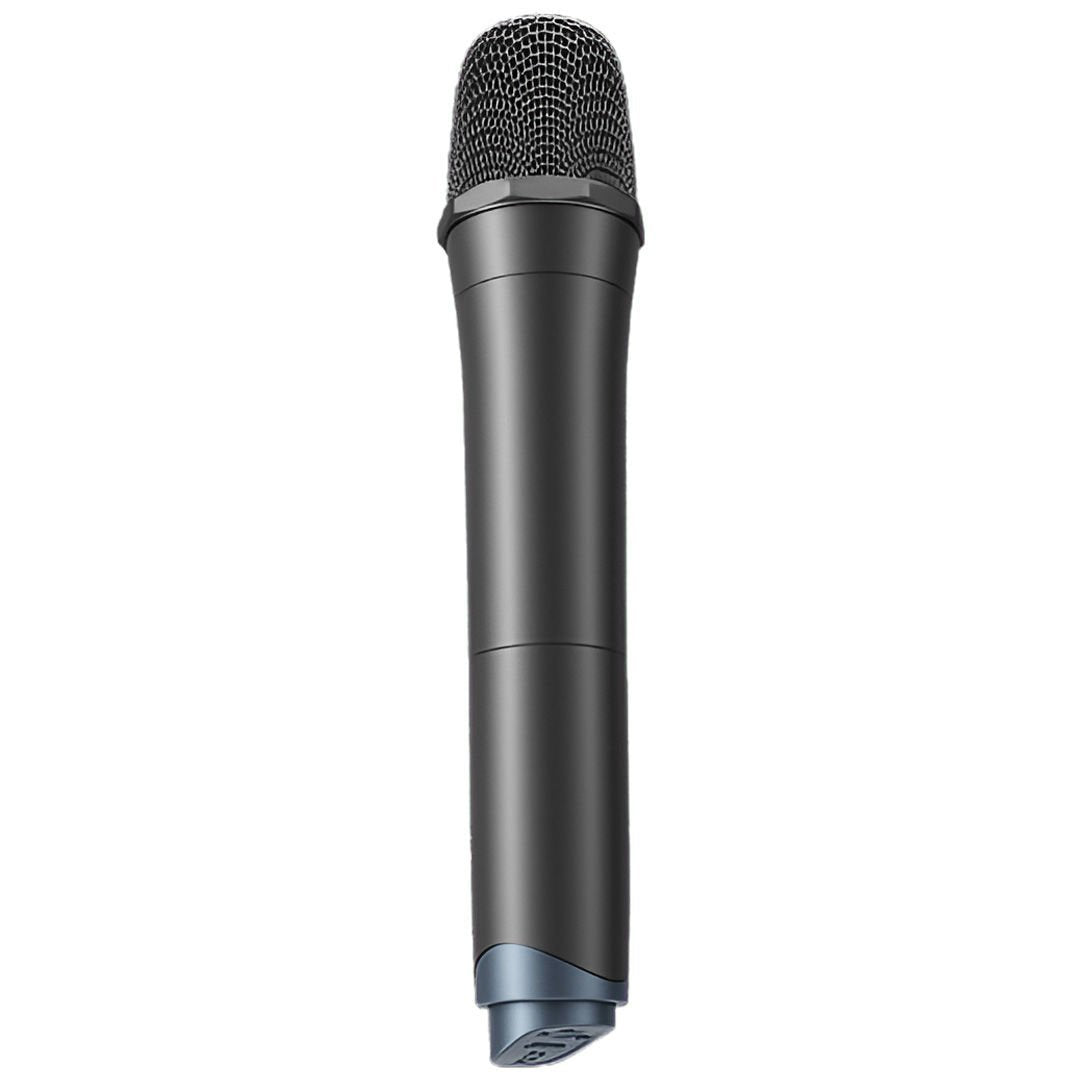

EZ.H8 wireless handheld microphone
• RF Carrier Frequency range: 522-651MHz
• Oscillation Mode: PLL frequency synthesis
• Transmission Power: 13.5dBm
• Carrier Deviation: 0.005%
• Harmonic Emissions: -32dBm
• Modulation Mode : FSK
• Nominal/maximum Frequency Deviation: ±65KHz
• Maximum Input Level: 250mV
• Input Impedance: 2.2KΩ
• Frequency Setup : IR SYNC
• Power Requirements: AA1.5V x2
• Current Consumption: 120mA
• Battery Life: ≥10 Hours
• Size (mm): 59.5 (Φ) x 236 (L)
• Weight: about 246g (without battery)
