High Quality USB-C Sound Card: 24-In/24-Out 24-bit/96kHz, 8 EVO Mic Preamps, 2 JFET Instrument Inputs, 16-channel ADAT I/O , 2 Headphone Outputs, High Resolution TFT-LCD Display, Multi-Channel Smartgain Feature (MAC/PC Compatible)
A new way of doing things
Make registration easy
Along with our advanced converter technology, the award-winning 8 EVO Preamps will make everything you do sound better. Add to that the all-new groundbreaking Motion UI control system Smartgain, intelligent mic preamps that set their own levels, and enough I/O power to handle the biggest sessions, and the EVO 16 is a true studio powerhouse designed to make recording easy from start to finish.
• EVO Microphone Preamps
• Class-Leading Converters
• JFET Instrument Inputs
• Independent Headphone Outputs
• Digital Expansion
• High Resolution LCD Screen
EVO Mic Preamp Get studio-quality recordings Elevate your audio performance with 8 stunning EVO Preamps. Backed by 25 years of engineering experience, our analog microphone preamps are designed to deliver the most accurate, clean, and source-accurate version of your sound, no matter what you're recording.
Professional Audio, get studio quality recordings
Microphone Gain, Easily power up microphone gain
Ultra-low distortion, noise-free signal

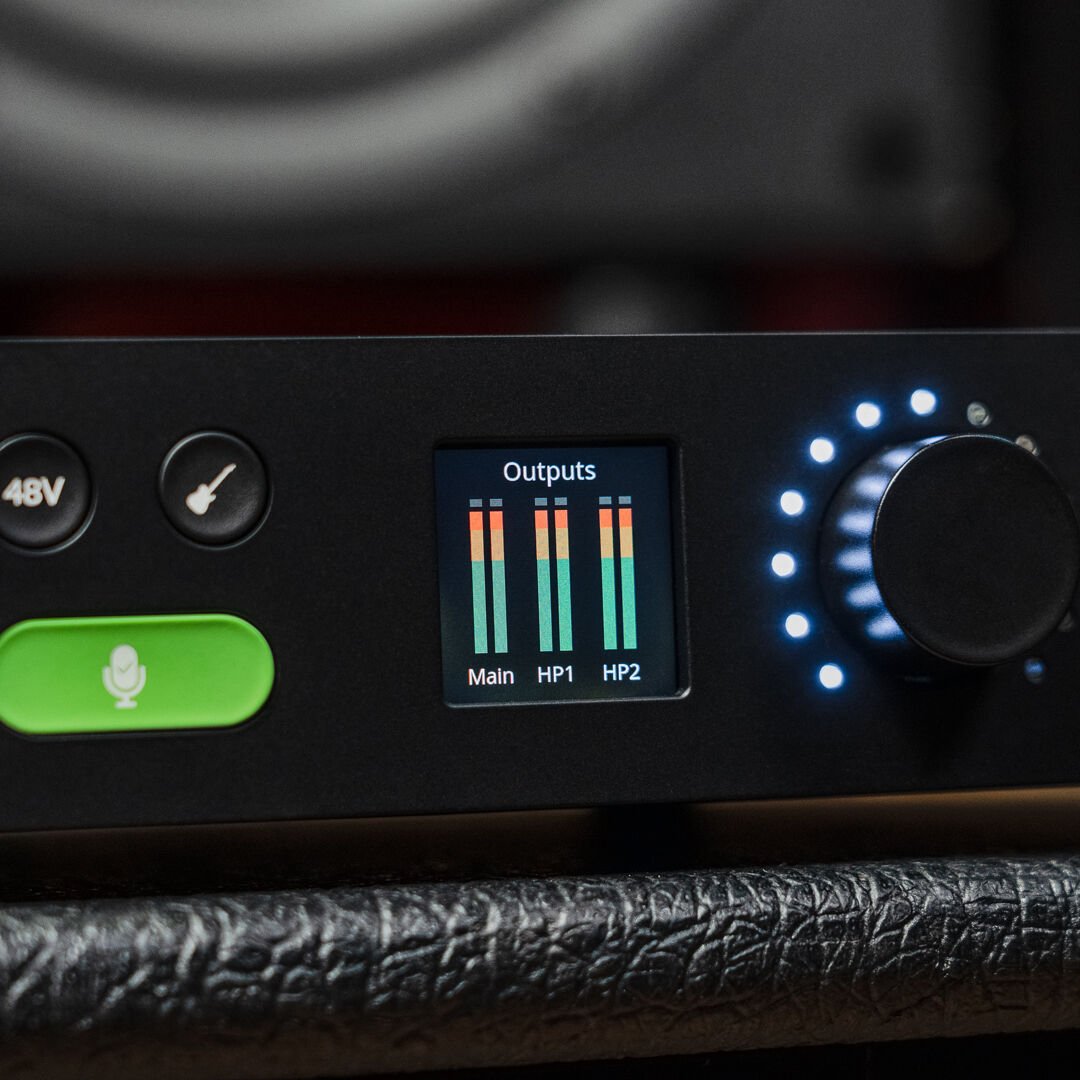

High-resolution display made smarter
Our EVO Preamp technology not only has all the sonic benefits of an analog microphone preamp, but combines it with digitally controlled sensitivity, giving you the ability to fine-tune your gain down to the decibel.
• Real-time visual feedback on screen
• Perfectly match the volume of your match pair stereo microphones.
• Software control
Smartgain
A complete gain adjuster
Make recording drums and larger sessions easy with Smartgain. Automatically adjust gain for all 8 channels with the touch of a button. Powered by our lightning-fast Smartgain algorithm, Smartgain uses advanced peak analysis to automatically analyze, adjust, and perfect your gain in less than 20 seconds!
Don't you believe us?
Now it's up to you to figure out what to do with all that time you have...
Your own assistant engineer:Do you work alone?
Record, adjust levels, repeat? Sound familiar?
Save time and record yourself with Smartgain. Simply set up your microphones, press Smartgain, start performing and let EVO 16 do the rest.
Advanced Converter Technology:Clearer, sharper definition Providing a MASSIVE 121dB dynamic range, the EVO 16's high-performance transducer technology ensures your voice is heard accurately, helping you make creative decisions, identify problems, and improve your recording and mixing project.
MOTION UI
The Motion user interface (UI) is designed to change the way you interact with your audio interface. For the first time, a stunning high-resolution, full-color LCD display intelligently displays information when you need it, transforming the EVO 16 into a fully immersive, easy-to-use experience.
Line Outputs
Choose the Best Route Mix and listen through multiple sets of speakers with the EVO 16's 8 line outputs. Alternatively, use the extra line outputs to send audio to external devices like compressors or FX units, or to headphone amps for distribution to your artists.
Headphone Outputs
Clarity where you need it most Drive even the most demanding headphones with the EVO 16's two dedicated headphone amplifiers. Get detailed monitoring and playback, as well as plenty of volume, while easily powering headphones up to 600 Ohms.
2 x Instrument Inputs
Classic tone, modern sound To create a monster guitar sound, you need the right foundation. Our harmonically rich JFET instrument input circuit is designed to replicate the input stage of a classic valve amplifier.
Digital I/O
Expansion Room Future-proof your studio and configure your setup to handle larger sessions. Whether you’re recording drums or playing with a full band, the EVO 16’s optical inputs and outputs have you covered. Supporting both ADAT and SPDIF, it gives you plenty of options to expand your studio by adding up to 16 channels of mic preamps to your setup.
Advanced Monitor Control
For the curious listener The EVO 16 takes critical listening seriously and is packed with monitoring functions to back it up. Whether you’re switching between two sets of speakers using the ALT monitor feature, checking your mix in Mono, or quickly communicating with your artist using Talkback, all features can be activated directly from the EVO 16’s front panel. The best part is that you can customize which control is assigned to the hardware F button.
ALT MONITORINGMONOTALKBACK
Talkback
EVO 16's exclusive talkback technology lets you use any audio source connected to your computer, such as the built-in microphone or a USB microphone, as your talkback microphone, freeing up valuable microphone preamps for recording.
Ultra-fast USB
Speed meets reliability Every second counts in the studio – and with rock-solid driver performance, high-speed USB connectivity and ultra-low latency monitoring, the EVO 16 will always provide the reliability you need to keep up with your creativity.
For content creators Loopback In the world of content, your audio needs to not only sound great, but also easy to control. Audio Loop-back makes that possible. It’s perfect for content creators, podcasters, and broadcasters.
• Record your computer's audio
• Record game audio
• Record video calls
Mixer
Strong control Designed to simplify your workflow, the EVO Mixer lets you effortlessly set up and route your inputs and outputs, provide ultra-low latency monitoring, set up custom artist headphone mixes, and much more.
It is compatible with MacOS and Windows.
Who said interfaces have to look utilitarian? The EVO 16 has been meticulously designed to look great on both your desktop and your shelf. Super-bright, backlit LED lighting not only looks stunning, it also provides visibility in even the darkest studios, while the robust steel chassis ensures the EVO 16 is built to last.
Portable Stacked or Racked Packed with features, the EVO 16 measures just over 14 inches wide with non-slip rubber feet. The EVO 16 works perfectly on your desktop, under your laptop, or as a permanent fixture in your studio with optional rack ears.
Free software and plugins Compatible with all major audio software and plug-ins, the EVO 16 comes with a collection of professional recording software including Cubase LE, giving you everything you need to start recording right out of the box.
ARC
If you have any existing Audient products, all you have to do is register your product and take advantage of these great offers for free!
Features Microphone Preamplifier • Microphone Gain Range: 58dB • Line Gain Range: 58dB (-10dB pad) • Phantom power: 48v +/-4v @ 10mA/Channel • Microphone EIN: <-127.5dBu • CMRR: >80dB @ 1kHz • Maximum Input Level: +16dBu • Input Impedance (Mic): >3kΩ Balanced • Input Impedance (Line): >10kΩ Balanced • Frequency response: +/-0.5dB 10Hz - 40kHz • Crosstalk: <-105dBu @ 1kHz <-103 @ 10kHz • THD+N @ 0dBu (1kHz): <0.0015% • SNR: 100dB • XLR: Pin 2 (Hot), Pin 3 (Cold) and Pin 1 (Shield) • 1/4” Jack: IP (Hot), RING (Cold) & ARM (Shield)
DI • DI Gain Range: 58dB • Maximum Input Level: +10dBu • Input Impedance: 500k • Frequency response +/-0.5dB 10Hz - 20kHz • THD+N @ 0dBu (1kHz): <0.1% • SNR: 100dB • 1/4” Jack: TIP (Hot) & HANDLE (Shield)
