DS-DAC-100
The DS-DAC100 or DS-DAC 100m are products with RCA and balanced XLR inputs, and can be used with AudioGate 3, Korg's audio playback and audio format conversion software, and can play audio from CDs, songs downloaded from the internet, etc. as high-quality DSD sound on computers or laptops.
Key Features:
* The simplest yet most comprehensive high-quality playback system with Audio Gate 3 and DS-DAC interfaces
* Best possible sound with real-time DSD conversion
* AudioGate 3 software with renewed user interface for more convenient use
* Playback of 2.8224 MHz or 5.6448 MHz DSD files
* AudioGate 3 allows you to play a wide variety of audio formats (24 bit, 16 bit, WAV, FLAC, MP3 and more)
more)
* Professional quality hardware design built on the success of the MR series DSD recorders
* Specially developed Win/Mac drivers for AudioGate 3 and DS-DAC series

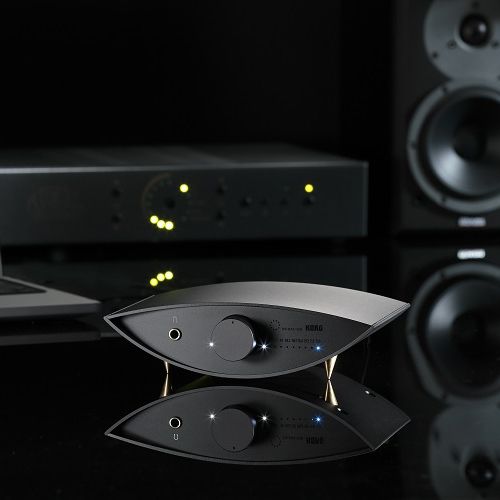

DS-DAC 100 has an aesthetic and curved case. There is a volume knob, light indicators and a headphone jack on the front panel. The possibility of vibration is minimized by the bottom panel with metal feet. There are balanced XLR inputs as well as RCA outputs.
DC-DAC 100m is a portable product the size of a hard disk. It has the same circuit system and sound quality as its superior model DS-DAC100, and combines high-quality audio playback in a portable body.
By simply connecting the DS-DAC 100 and 100m to a computer, high quality audio playback is possible. AudioGate3 software plays the audio sample from the computer in the highest possible quality. DS-DAC100 and 100m convert the data from the AudioGate3 into an analog signal that can be played back through headphones or speakers. In this way, high quality sound is achieved.
Audio files in MP3, WAV, CD formats received from the computer can be converted to 5.6448 MHz/DSD data in real time and played with AudioGate3 software. Since high quality DSD conversion requires processor power, it is done by the computer. It takes the maximum information from the musical source and sends it to the DAC. It takes the data optimized for DS-DAC100 or 100m DSD and converts it to an analog signal. It can also play 2.8224MHz and high resolution 5.6448MHz DSD data. Since the data is not synchronized with the computer's USB clock, it can be played with very little distortion, and since it uses USB bus power, noise caused by the electrical outlet can be avoided.
System configuration examples:
< DSD (native) playback >
(PC (AudioGate 3)-(USB)- DS-DAC-100/100m – Headphones or Audio Set)
Supported audio drivers: ASIO, CoreAudio (for Win/Mac, when using KORG USB Audio Device driver)
< DSD (PCM conversion) / PCM playback >
(PC (AudioGate 3/Other audio player*)-(USB)- DS-DAC-100/100m – Headphones or Audio Set)
AudioGate 3 (High Definition Audio Player Software) Key Features:
* New user interface
* Adjustable screen size, full-screen support for Mac OS X 10.7 or later
* “Album”, “Artist”, “Genre” information with sorting support in playlist
* Ability to buy songs from iTunes
* Improved cover art and waveform display for better appearance and background selection
* Support for changing “Album artist”, “Track no”, “Disc number” information
* Master Volume
* Playback volume adjustment
* High quality/slow loading option for file conversion
Technical Specifications
DA converter: Cirrus Logic CS4398
Audio Interface
Number of channels: 2
Input format (USB): DSD: 8224MHz/5.6448MHz, 1bit , PCM: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/ 192kHz, 16bit/24bit
Host interface: USB2.0 (High speed)
Audio driver: ASIO (DSD playback supported for ASIO 2.1 and later), WDM, Core Audio
General
Indicator: 2 Power indicators (LED), 8 Sampling frequency indicators (LED)
Power: USB bus power (5V, maximum 500mA)
Power consumption: 2.5W max.
Dimensions (W x D x H): 207 x 160 x 60.0 mm (including protrusions)
Weight: 862g
Basic Standards
Frequency response characteristics: 10Hz - 20kHz ±1dB (fs=44.1kHz/48kHz), 10Hz - 40kHz ±1dB
S/N: 105dB (TYP.) 20Hz - 20kHz, IHF-A
THD+N: 0.005% (TYP.) 20Hz - 20kHz
Line Out L/R
Connection: RCA pin jack (unbalanced) / XLR (balanced)
Load impedance: more than 10kΩ
Nominal level: -6dBV
Maximum level: +6dBV (0dBFS 0dB-SACD)
Phones
Connection: φ6.3mm stereo phone jack
Load Impedance: More than 16Ω
Maximum level: 85mW + 85mW @32Ω
USB (Device)
Connection: Type B
Format: USB 2.0 compatible high speed
Accessories: USB cable, 3x stand
Operating System Requirements for DS-DAC-100
[Windows]
Operating system: Microsoft Windows
Processor: Intel Pentium III 1GHz or higher (Core 2 Duo 2.66GHz or higher recommended)
RAM: 256MB or above (1GB or above recommended)
[Macintosh]
Operating system: Mac OS X 10.6 or later
Processor: Intel processor (Core 2 Duo 2.4GHz or higher recommended)
RAM: 1GB or more
* DSD native playback for Windows (ASIO) and Mac only when using Korg USB Audio Device Driver
supported.
Operating System Requirements for AudioGate 3
[Windows]
Operating system: Microsoft Windows
Processor: Core 2 Duo 2.66GHz or higher recommended
RAM: 1GB or more
[Macintosh]
Operating system: Mac OS X 10.6 or later
Processor: Core 2 Duo 2.4GHz or higher recommended
RAM: 1GB or more
* DSD native playback for Windows (ASIO) and Mac only when using Korg USB Audio Device Driver
supported
- "DSD" is a registered trademark.
- All registered trademarks belong to their owners.
- Specifications are subject to change without notice
- The color of the product may differ from that shown.
