d+ FW6×9 / 4.0m
4,729.62TLKDV dahil
2 ürünler Stokta Show extra info for delivery time
Açıklama

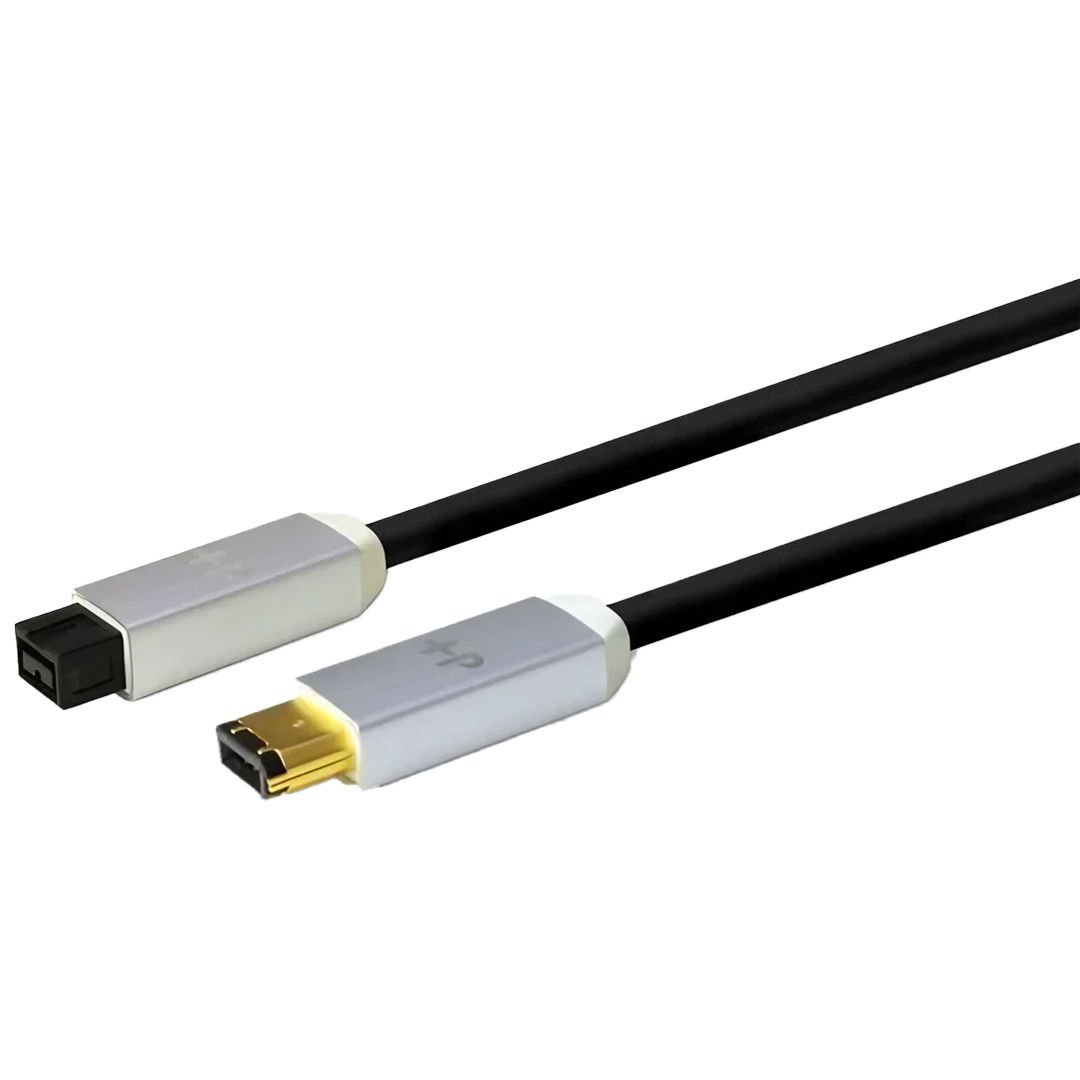

Neo Created by OYAIDE Elec. d+FW6×9 / 4.0 m
High Quality Firewire Cable (400-800)
d+ is a breakthrough in audio I/O transmission
d+ FireWire was developed for FireWire audio interfaces in audio production. Since the transfer of data in the audio and visual field is a very difficult and complex task, the place and importance of the cable for real-time data transfer is very important.
d+ FireWire was developed for FireWire audio interfaces in audio production. Since the transfer of data in the audio and visual field is a very difficult and complex task, the place and importance of the cable for real-time data transfer is very important.
For fast data flow, the conductive part is coated with "Silver-plated OFC (oxygen-free copper)". With the combination of double coating, reverse-face structure and TPE outer protection, it is protected from all noise and electromagnetic signals that may come from outside.
In addition, the impedance has been carefully adjusted for accuracy and precision in data transfer. Considering all these factors, the d+ series is far ahead in carrying dynamic and high-resolution sound as it is.
For all music enthusiasts, producers, artists, sound engineers and listeners, "d+ Firewire" is the ultimate in audio performance.
● For high performance serial bus purposes, the conductive part is coated with "Silver-plated OFC (oxygen-free copper). Silver coating, which has 5% less resistance than copper, provides very fast data transfer and transmits the dynamics and details of the sound without losing them.
● Impedance setting is precisely adjusted for correct and fastest data transfer.
● The combination of double coating, reverse face structure and TPE outer protection protects against all external noise and electromagnetic signals.
● Foam-PE provides excellent insulation for fast data transfer.
● 24K bronze alloy coating ensures stability in data transfer.
● Thanks to the 30% fiber glass filling PBT and aluminum outer coating used in the connections, signal attenuation caused by vibrations is prevented. In this way, losses in clock operations and when receiving power from the data path are eliminated.
FEATURES
Cable ： IEEE1394a (FireWire/i.Link)
Transfer Speed ： Maximum 400Mbps
Bandwidth ：
FireWire (IEEE 1394) 100 / 98.304 Mbit/s
FireWire (IEEE 1394) 200 / 196.608 Mbit/s
FireWire (IEEE 1394) 400 / 393.216 Mbit/s
Conductivity ： Silver plated OFC (Oxygen Free Copper)
Structure ： double twist + Reverse pair structure)
Shielding ： Separate double shielding（tin-plated wire + aluminum tape）
Insulation ： Foam Polyethylene
Cover ： Thermoplastic Elastomer
Connector ： EEE1394 6pin connector（Type A) & IEEE1394 9pin connector（Type B)
Terminal ： 24K gold plated bronze tin
Body ： PBT + Fiber glass 30%
Outer casing ： Aluminum
FireWire (IEEE 1394) 200 / 196.608 Mbit/s
FireWire (IEEE 1394) 400 / 393.216 Mbit/s
Conductivity ： Silver plated OFC (Oxygen Free Copper)
Structure ： double twist + Reverse pair structure)
Shielding ： Separate double shielding（tin-plated wire + aluminum tape）
Insulation ： Foam Polyethylene
Cover ： Thermoplastic Elastomer
Connector ： EEE1394 6pin connector（Type A) & IEEE1394 9pin connector（Type B)
Terminal ： 24K gold plated bronze tin
Body ： PBT + Fiber glass 30%
Outer casing ： Aluminum
