BNCBNC00100BL | 1mt
2,592.09TLKDV dahil
4 ürünler Stokta Show extra info for delivery time
Açıklama

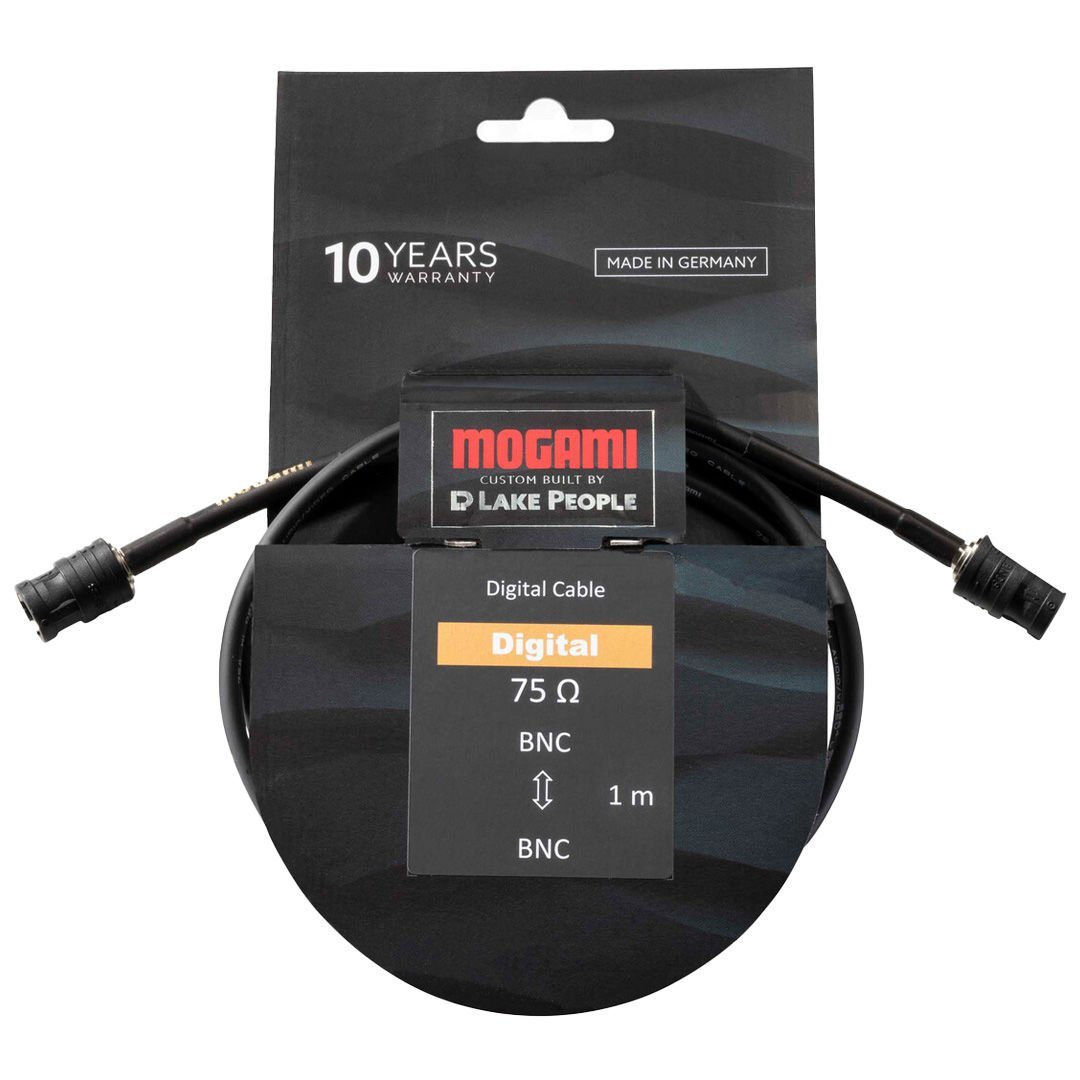

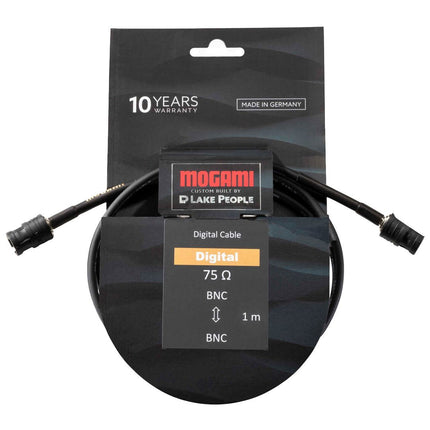

Mogami BNCBNC00100BL | 1mt
High Quality BNC (Wordclock) 75Ω Coaxial Digital Cable | 1mt High Quality BNC (Wordclock) 75Ω Coaxial Digital Cable | 1mt

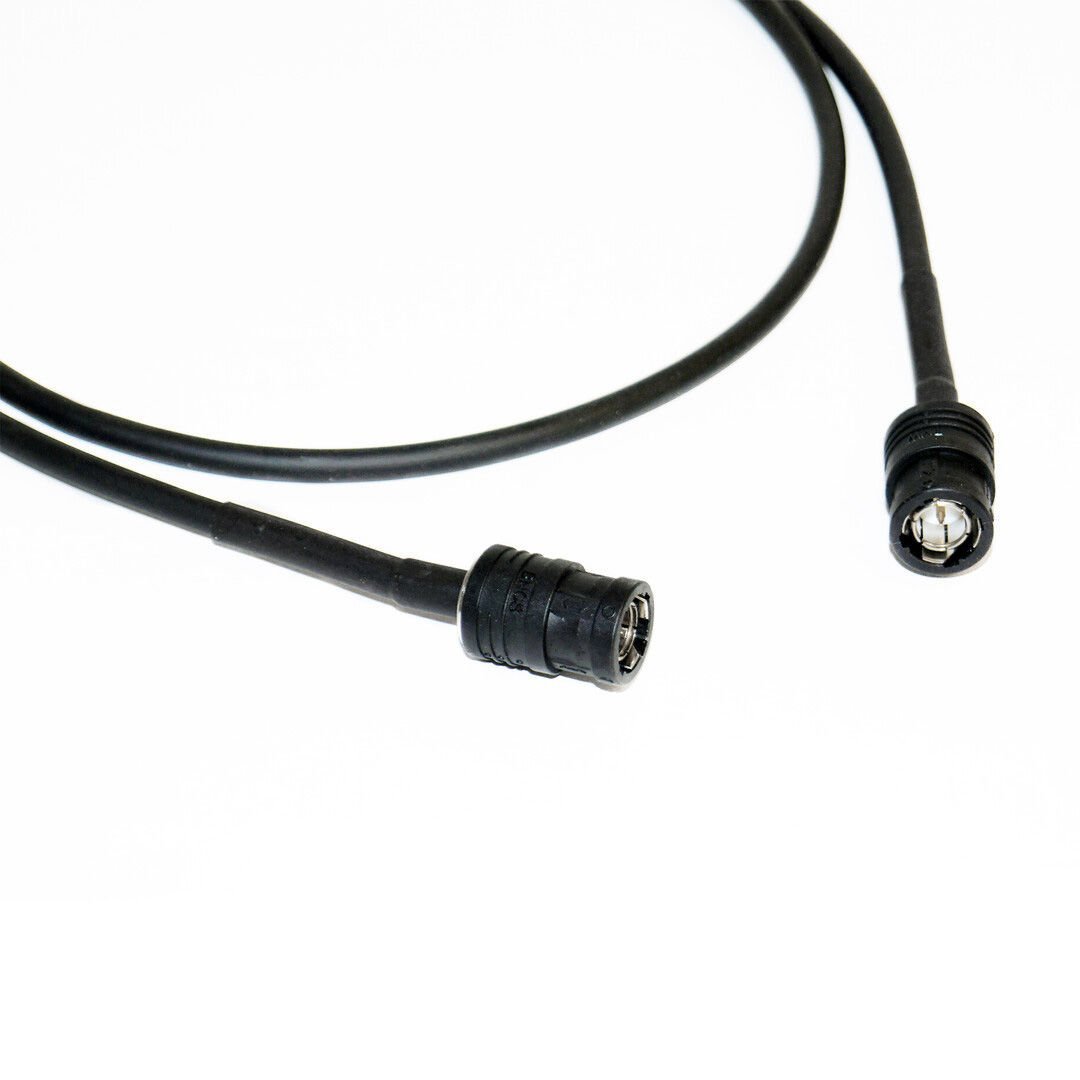

Tajimi BNCS Push-Pull BNC <> Tajimi BNCS Push-Pull BNC, black chrome plated housing. Mogami 2964 75 Ohm coaxial cable, black
"Mogami by Lake People" cables, passionately produced in Japan and assembled with the highest precision in Germany

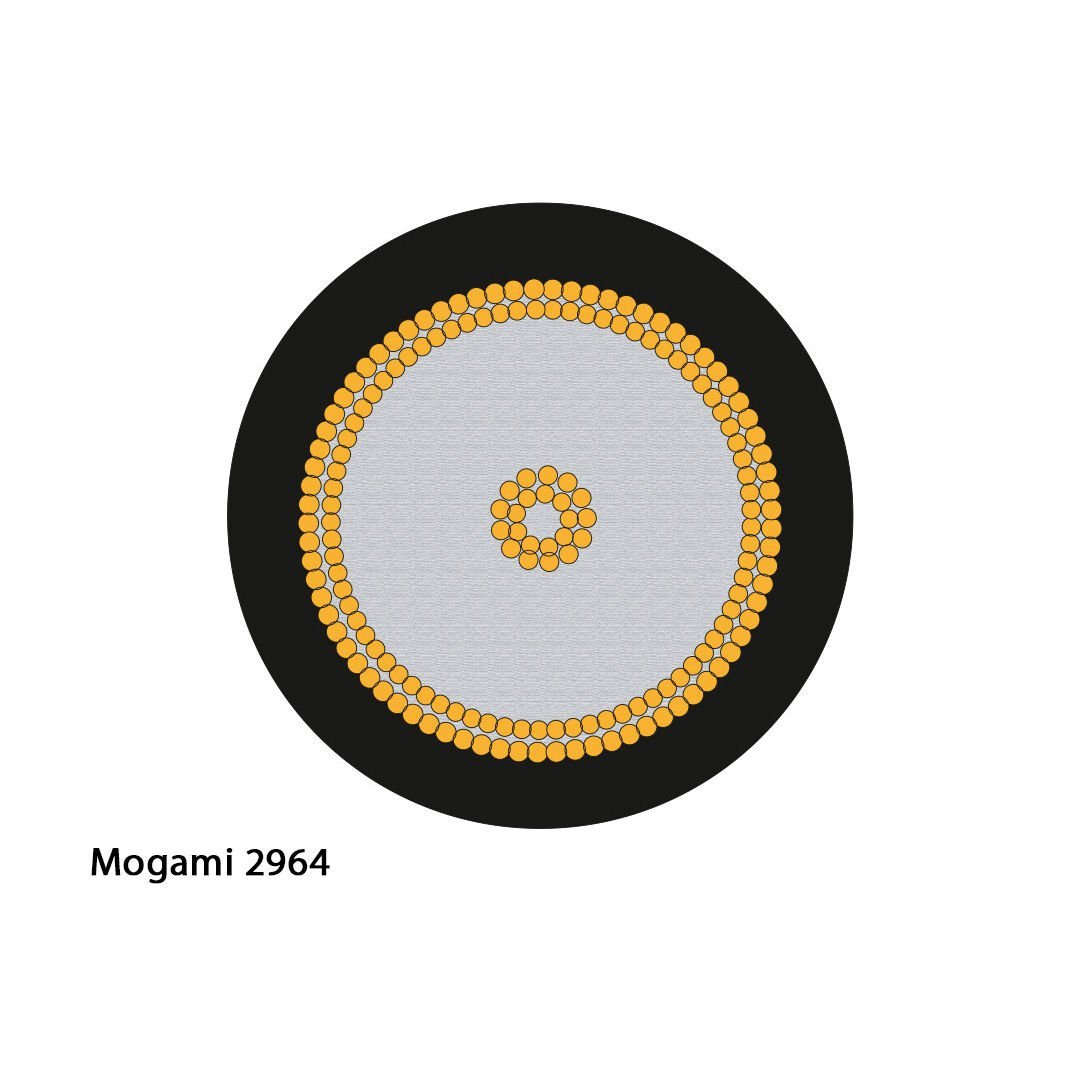

Mogami's coaxial sync cable 2964 has a diameter of only 4.8 mm and is extremely flexible. The technical parameters are precisely designed for the transmission of high-frequency word clock, MADI and video signals. The impedance of 75 Ohms is guaranteed with a tolerance of only ±10%. The double-helical shielding provides extremely effective protection against interference.

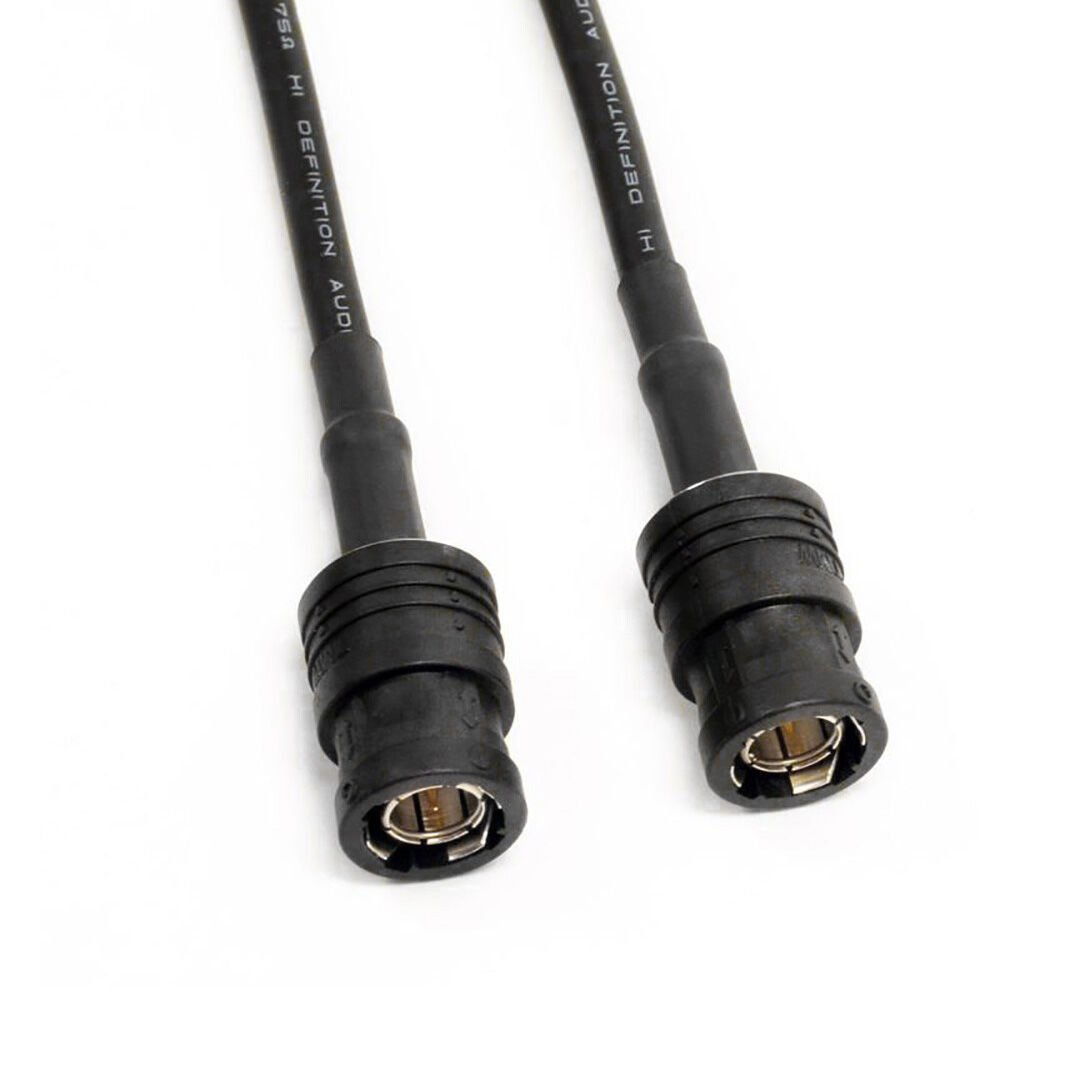

All assembled BNC cables are equipped with Tajimi One Touch Push Pull connectors.
"Mogami by Lake People" cables, passionately produced in Japan and assembled with the highest precision in Germany
Mogami's coaxial sync cable 2964 has a diameter of only 4.8 mm and is extremely flexible. The technical parameters are precisely designed for the transmission of high-frequency word clock, MADI and video signals. The impedance of 75 Ohms is guaranteed with a tolerance of only ±10%. The double-helical shielding provides extremely effective protection against interference.
All assembled BNC cables are equipped with Tajimi One Touch Push Pull connectors.
Technical Specifications
• Attenuation: 0.047 dB/m (@ 10 MHz)
• DC resistance: Inner Conductor: 0.083 Ohm/m / Screen: 0.012 Ohm/m
• Durability: 16,000 cycles
• Internal resistance: 75 Ohm ±10%
• Inner conductor: Details: 20 x 0.12 OFC / Size: 0.23 mm² (AWG24)
• Insulation: Ov. Diameter: 2.65 mm / Material: XLCPE / Color: White
• Capacity (1 kHz, 20°C): 57 pF/min
• Cable diameter: 4.8 mm
• Cable number: 2549
• Length: 1 Meter
• Outer shell material: PVC

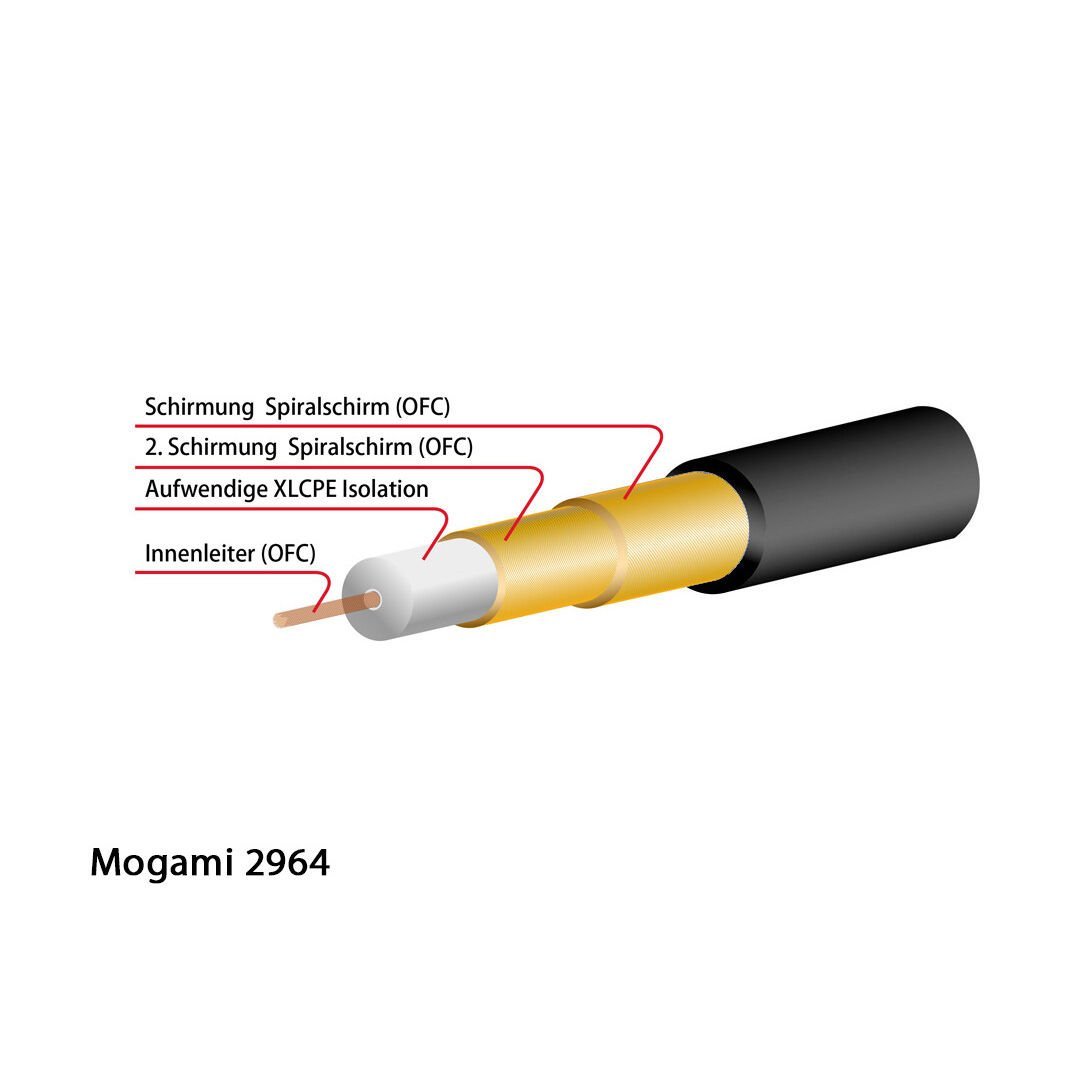

• Shielding: Spiral Shield (72/0.12 OFC)
• 2nd shield: Spiral Shield (66/0.12 OFC)
• Connector: Tajimi One Touch
• Applicable temperature: -20°C - +60°C
• Weight: 0.10 kilos
