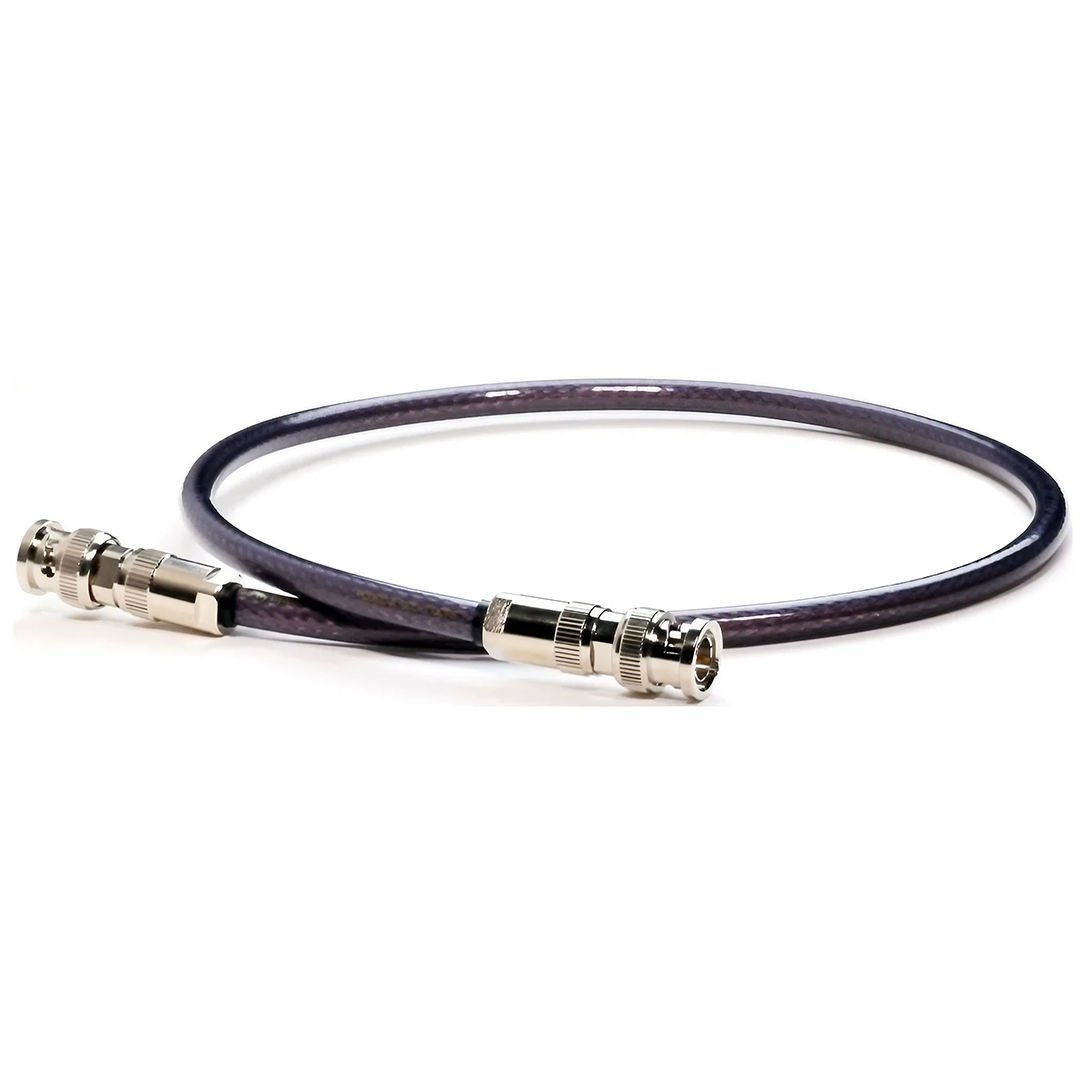

High Quality BNC (Wordclock) 75Ω Coaxial Digital Cable
BNC (Wordclock )coaxial cable for all digital notifications
In music production studio, the importance of S/PDIF and Wordclock digital connection is still widely recognized among producers and sound engineers. In addition, with the evolution of digital DJ system, coaxial cables have become the leading connection between CDJ and digital mixers. AS-808 series is designed for professional equipment such as an audio I/O, a CDJ, a Clock generator, a D/A converter, a digital recorder, a digital console, a digital DJ mixer and other visuals. Applying PCOCC-A to the center of the cable and providing air insulation by its special materials is the perfect solution to reduce resistance, dielectric loss, send accurate digital clock signals and achieve accurate digital audio signals. Theproperly adjusted 75ohm coaxial structure prevents noise generation, jitter loss, clock errors and other problems.
FEATURES
●The center conductor, φ1.0 single wire, is made of PCOCC-A, which has no connection between crystals, resulting in less impurities and no signal transmission loss.
●By applying an air chamber between the center conductor and the polyethylene tube, dielectric loss that may be caused by an insulator is prevented.
● It has a double shielding structure consisting of copper foil shield (100% protection rate) and PCOCC-A braided shield (90% protection rate).
●RCA center pin has a tube-shaped surface for signal transmission. It is plated with 24K gold to prevent the connection from deteriorating. In order to catch the correct impedance, BNC input is made of Delrin and high hardness brass material. Low dielectric FEP is applied for the inner insulator of both models, which minimizes signal transmission loss.
