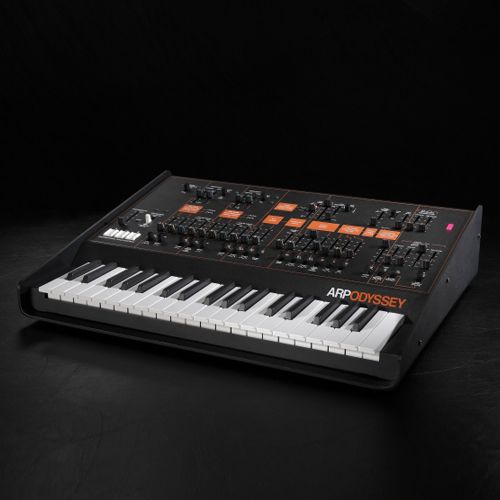

ARP ODYSSEY

29,050.00TLKDV dahil

ARP ODYSSEY A LEGEND CAME BACK TO LIFE AFTER FORTY YEARS When the ARP Odyssey was first produced by the... Devamını oku Devamını oku

Ürün Kodu: 338
Barkod: 2884000048


1 Stokta Show extra info for delivery time


Açıklama

ARP ODYSSEY

A LEGEND CAME BACK TO LIFE AFTER FORTY YEARS

When the ARP Odyssey was first produced by the American ARP Instruments company in 1972, its reputation spread rapidly among musicians. Its long-term production was discontinued in 1981 due to economic difficulties and the emergence of digital products, which made it so valuable because of its ease of use and portability.

Today, in 2015, KORG, drawing on the ideas and experience of ARP Instruments co-founder David Friend, is bringing the ARP Oyssey back to the music world, with a protective semi-hardcase and a shape that allows for the discovery of classic sounds as well as new ones, while remaining faithful to the original circuits.


Features

Keyboard : 37-Key, Slim Key, No Velocity Sensitivity, No Aftertouch Feature

Maximum Polyphony : 2 voices for Duophonic; Normally monophonic

Controls

Transpose : 2 Octaves down, Normal, 2 Octaves up

Pitch Control : b (Pitch down) Pad: -2 / 3 Octave
- (Modulation Pad)
# (Pitch Up) Pad: + 2 / 3 Octave

Sound Generator : Sound spectrum types (white and pink)

Portamento : Maximum Speed ​​0.01 ms / oct, Minimum Speed ​​1.5 s / oct

VCO

Waveforms: Sawtooth, Square, Pluse (Dynamic Pluse)

Frequency Range : 0.2 Hz - 20 Hz in VCO-1 low frequency mode
and VCO-2 20Hz – 20kHz

Warm Up Drift: 1/30 semitone from maximum

Signal Range: 50% - 5%

Modulation Signal Range: ADSR, +45% LFO, +15%

Voltage Control Response: 1V/oct

VCA: Dynamic range 80dB

Ring Modulator: Type Digital

Input Signal: VCO-1, VCO-2 (square wave)

Sample&Hold: Management Source Keyboard or LFO trigger

Sample Signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise

ADSR Envelope Generator

Attack Time : 5 ms – 5 sec

Decay Time: 10 ms – 8 sec

Sustain Level: 0 – 100% or peak

Release Time: 10 ms – 10 sec

AR Envelope Generator

Attack Time: 5 ms – 5 sec

Decay Time: 10 ms – 8 sec

Control Inputs

Pedal: 6.3mm mono jack

Portamento Foot Switch: 6.3 mm mono jack

Audio Outputs

Low Connector: 6.3 mm mono jack Maximum Output: -20 dBu@ 10 kΩ Output Impedance 10 kΩ

High Connector : XLR Maximum output level +4 dBu@ 1 kΩ Output Impedance 330 Ω

Headphone Output: 6.3 mm stereo jack Maximum Output 50 mW+ 50 mW@ 33 Ω
Output Impedance: 10 Ω *Can be controlled with the volume knob.

External Audio Input: 6.3mm mono jack Maximum Input level -10dBu
Input Impedance 22 kΩ

MIDI Connector: IN

USB Connector: Type B

CV IN/OUT: Keyboard CV (IN/OUT) 1 V/oct. Connector 3.5mm mono jack

GATE IN/OUT: Gate IN +3 V (minimum), Gate Out +10 V, Key down; 0V allkeys up
Connector 3.5 mm mono jack

TRIG IN/OUT: TRIG IN +3 V pulse min,10 μsec. Minimum process
TRIG OUT: +10 V pulse on key depression, 10 μsec. Duration Connector 3.5mm mono jack

Power Source: DC 9V AC Adapter

Power Consumption: 6.5W

Dimensions: 502 x 380 x 120mm

Weight : 5 kg

Accessories: AC Adapter, audio cable, mini audio cable, user manual, semi-hard case

Options : XVP-10 Volume Pedal, PS-1/PS-3 pedal switch










Sawtooth, Square, Pluse (Dynamic Pluse)




37-note (Slimkey, No velocity sensitivity, No aftertouch)


















The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

the ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

FThe ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

Now in 2015, KORG has brought back the ARP Odyssey for today. With the advisory assistance of David Friend, the co-founder of ARP Instruments, KORG has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. Together the engineers at KORG and Arp were able to nail the sound and feel of the original. Every detail has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case.
The legendary ARP sound is loved to this day. Long stopped, the wheels of history have begun to move again.

Forty years later, a complete revival.
The legendary analog synthesizer that transformed its age.

The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.
Now in 2015, KORG has brought back the ARP Odyssey for today. With the advisory assistance of David Friend, the co-founder of ARP Instruments, KORG has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. Together the engineers at KORG and Arp were able to nail the sound and feel of the original. Every detail has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case.
The legendary ARP sound is loved to this day. Long stopped, the wheels of history have begun to move again.

Years later, a complete revival.
The legendary analog synthesizer that transformed its age.

The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.
Now in 2015, KORG has brought back the ARP Odyssey for today. With the advisory assistance of David Friend, the co-founder of ARP Instruments, KORG has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. Together the engineers at KORG and Arp were able to nail the sound and feel of the original. Every detail has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case.
The legendary ARP sound is loved to this day. Long stopped, the wheels of history have begun to move again.
