2549-00 Microphone Cable, Neglex | Black 1mt

568.64TLKDV dahil

Mogami 2549-00 Microphone Cable, Neglex | Black 1mt Ultra Quality Balanced | Balanced Microphone Cable | Color Black | Ø... Devamını oku Devamını oku

Ürün Kodu: 16877
Barkod: 2784000341


Show extra info for delivery time


Açıklama

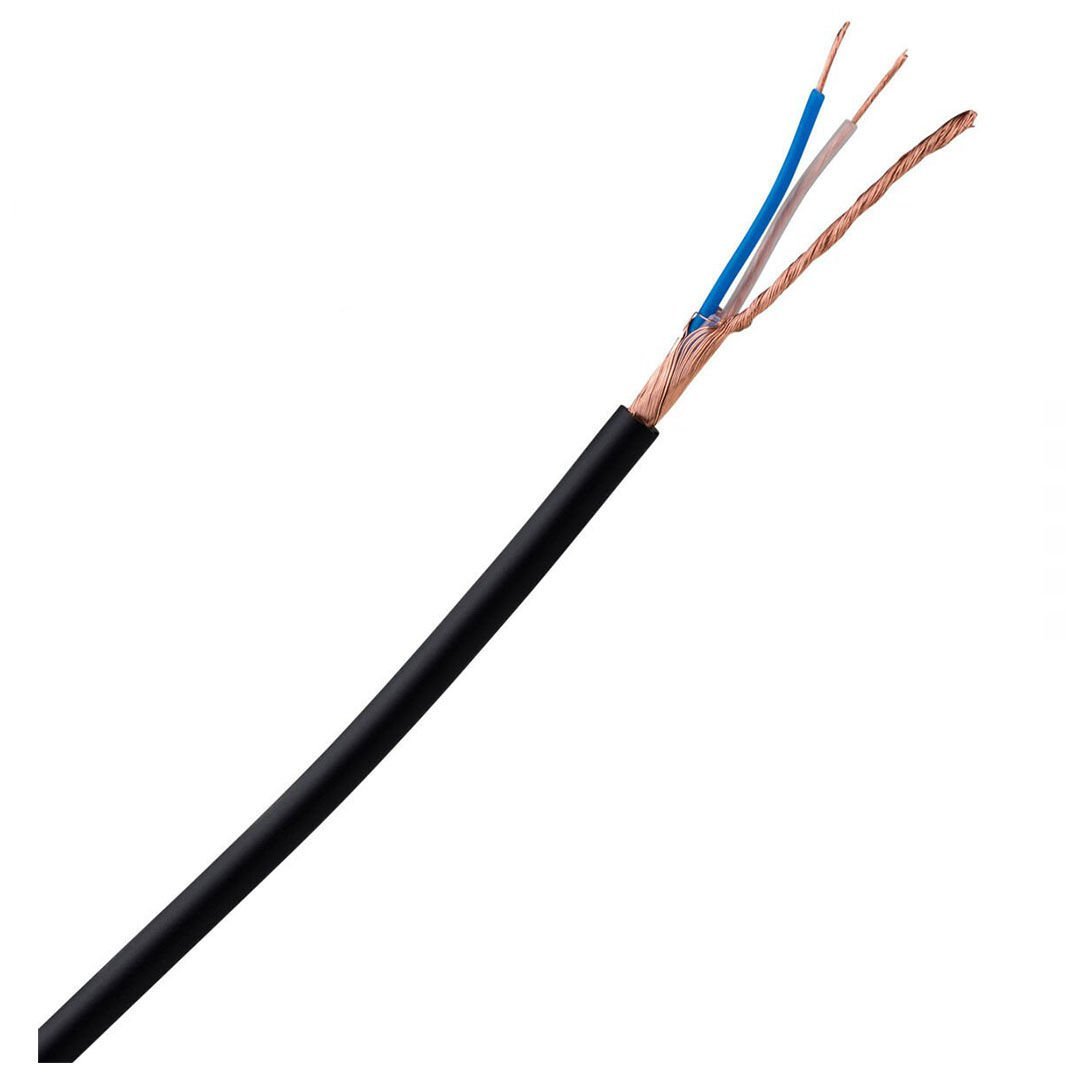

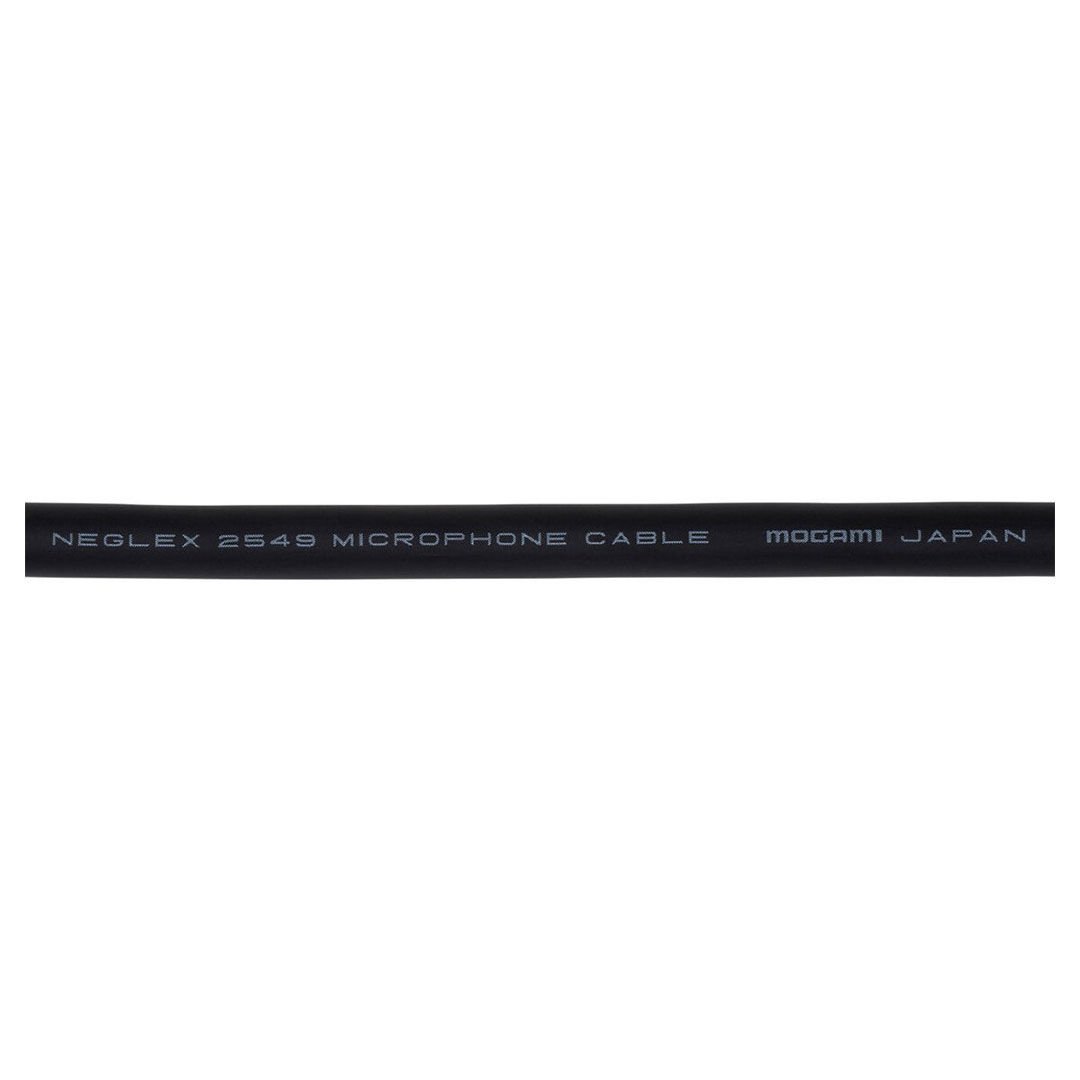

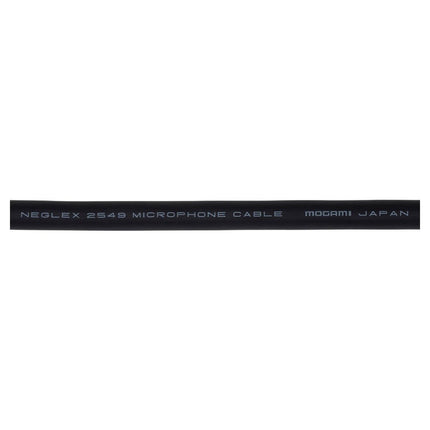

Mogami 2549-00 Microphone Cable, Neglex | Black 1mt
Ultra Quality Balanced | Balanced Microphone Cable | Color Black | Ø 6.0mm | 1mt

The Mogami 2549 is designed using our renowned Neglax OFC to provide the highest quality sound reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage shielding and twisted pair construction are excellent at blocking noise caused by electromagnetic interference. This cable is recommended where extended high frequencies are important or long cable runs may be required.

Features
• Stable mechanical structure
• Extremely flexible
• Optimized for continuous use
• Densely braided shield
• Stable voltage reduction
• Inner conductor made of 105 separate cores
• Pure copper conductors

Technical Specifications
 Cable diameter: 6mm
 Applicable temperature: -20°C - +70°C
 Material: Flexible PVC
 Series: Microphone series

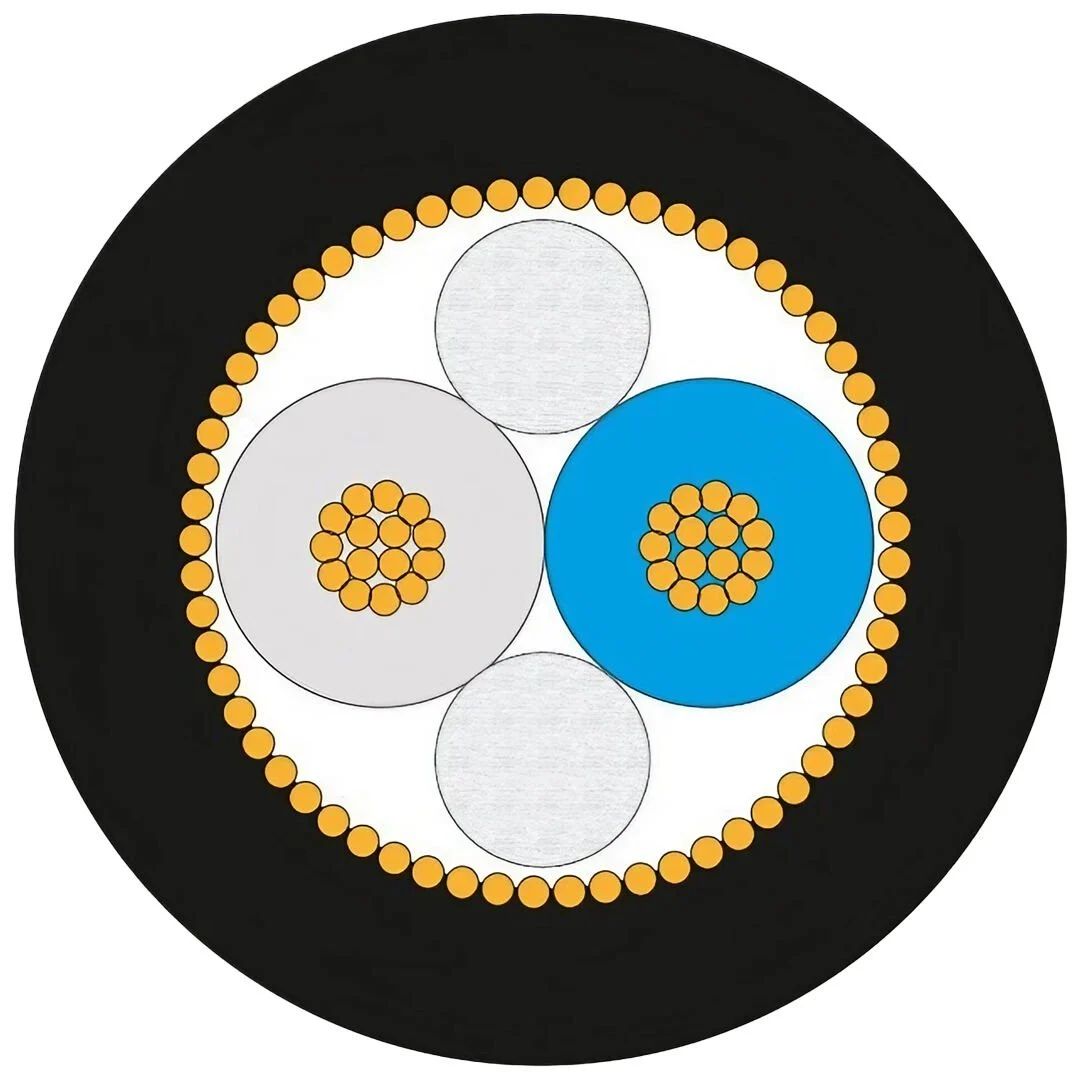

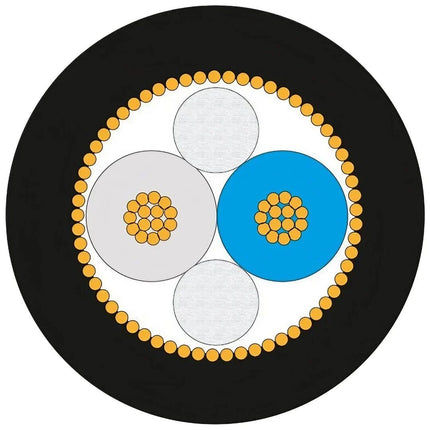

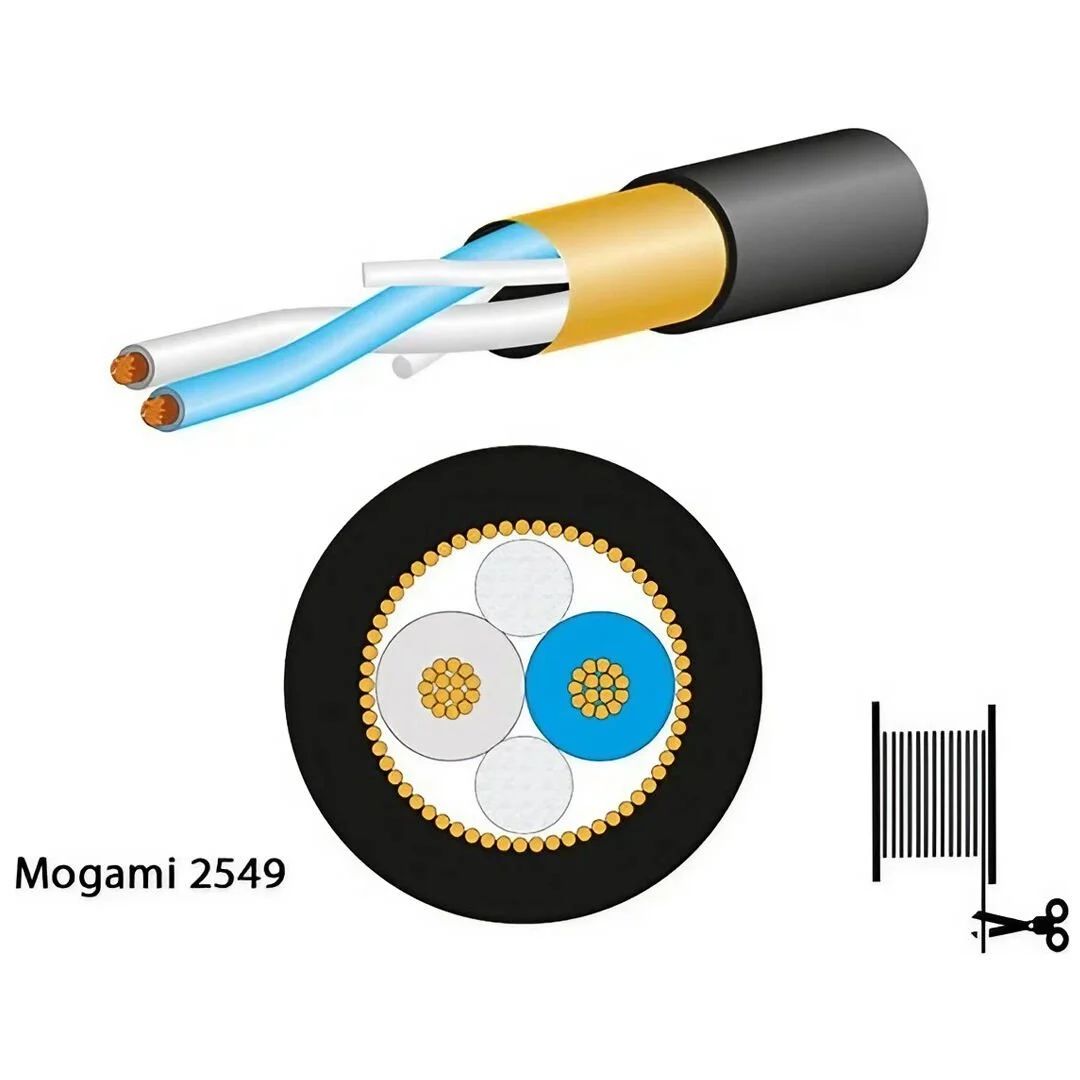

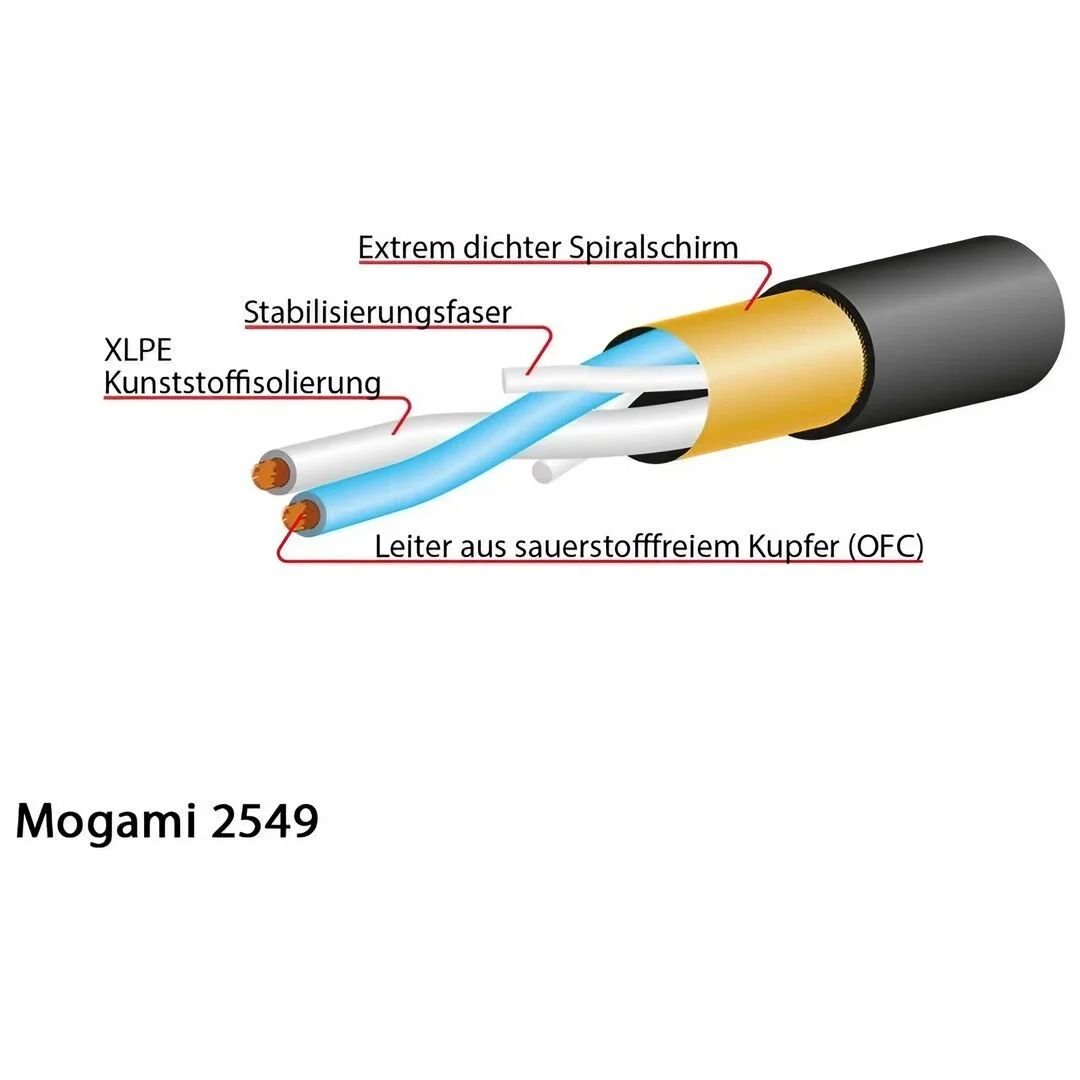

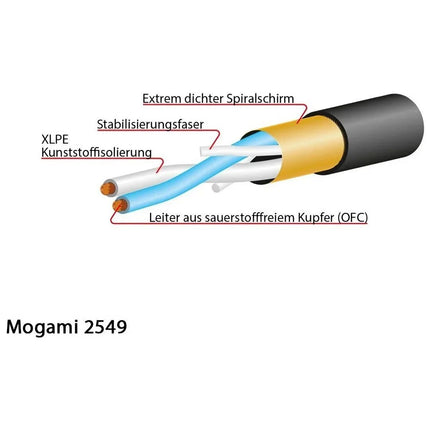

 Shield: Spiral Shield (62 x 0.18 A)
 Cable number: 2549
 Insulation: Ov. Diameter: 1.9 mm / Material: XLPE / Colors: blue/transparent
 DC resistance: Inner Conductor: 0.058 Ohm/m / Screen: 0.012 Ohm/m
 Capacitance (1 kHz, 20°C): Inner Conductor-Sheath: 76 pF/m / Conductor-Conductor: 11 pF/m
 Inner conductor: Details: 30 x 0.12 OFC / Size: 0.34 mm² (AWG22)
 Durability: 14,500 cycles
