2549-00 Microphone Cable, Neglex | Black 100mt

20,604.08TLKDV dahil

Mogami 2549-00 Microphone Cable, Neglex | Black 100mt Ultra Quality Balanced | Balanced Microphone Cable | Color Black | Ø... Devamını oku Devamını oku

Ürün Kodu: 16814
Barkod: 2784000351


5 ürünler Stokta Show extra info for delivery time


Açıklama

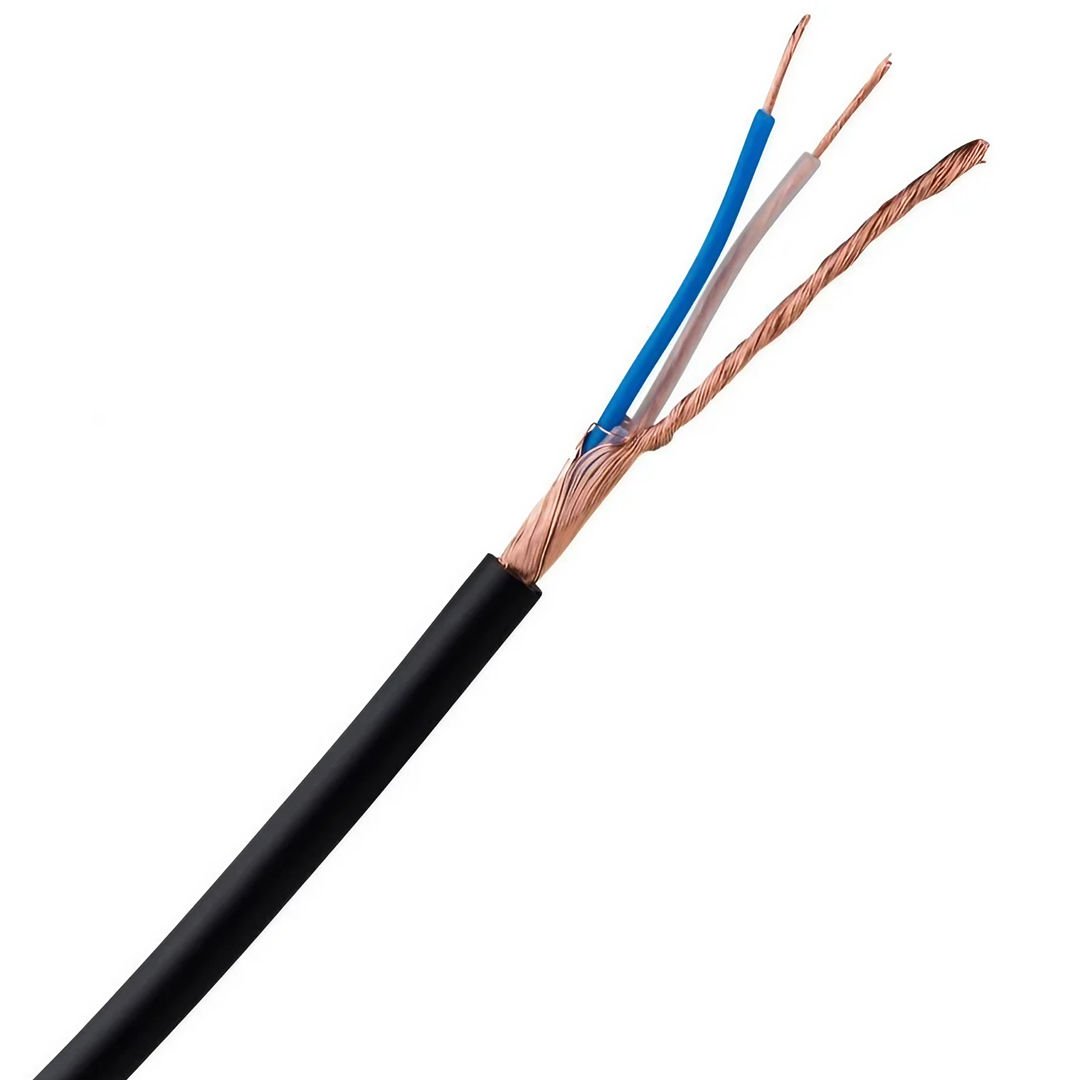

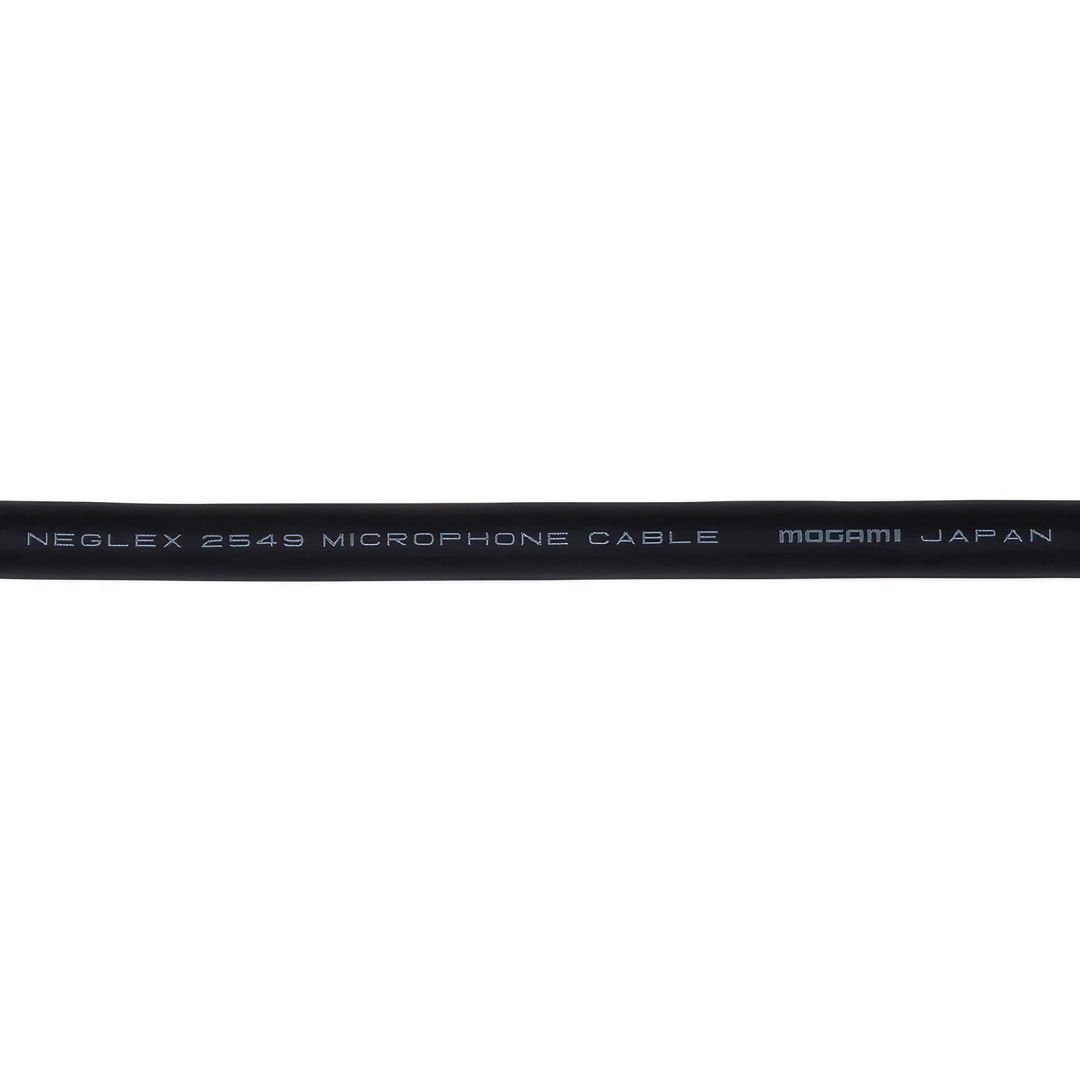

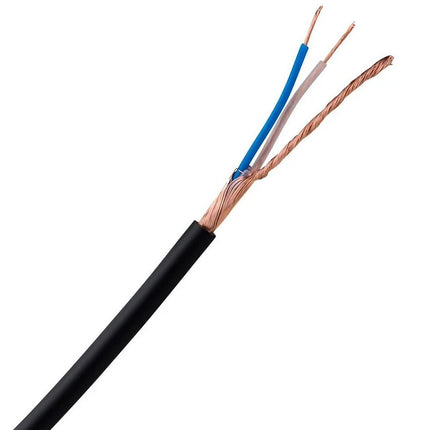

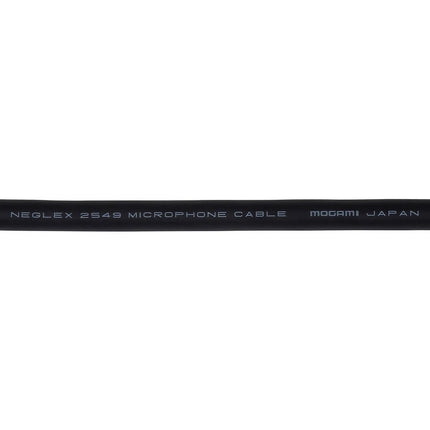

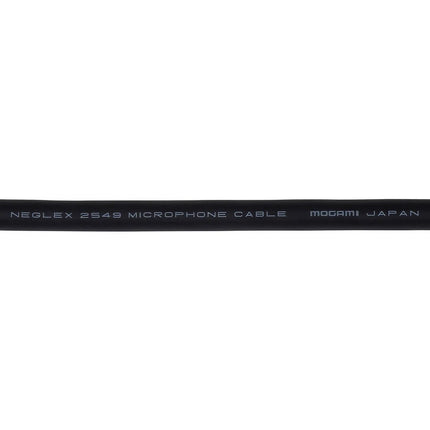

Mogami 2549-00 Microphone Cable, Neglex | Black 100mt
Ultra Quality Balanced | Balanced Microphone Cable | Color Black | Ø 6.0mm | 100mt

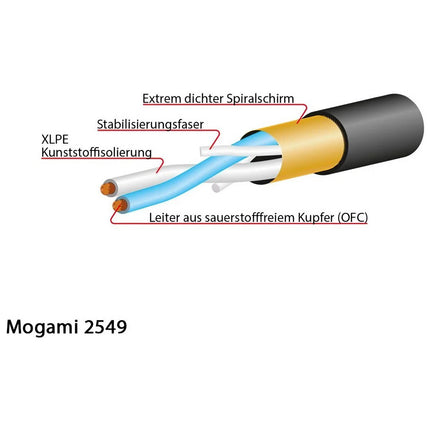

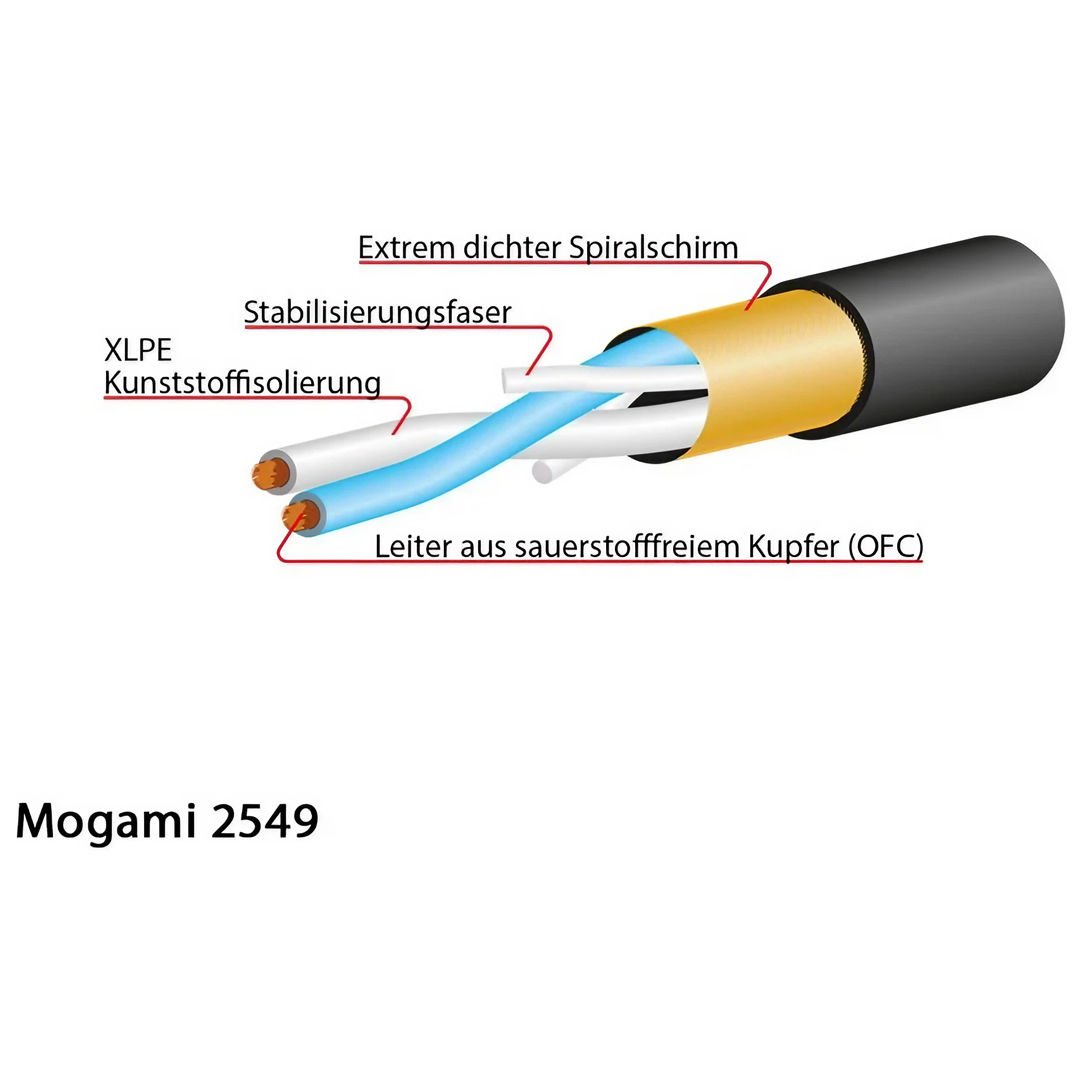

The Mogami 2549 is designed using our renowned Neglax OFC to provide the highest quality sound reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage shielding and twisted pair construction are excellent at blocking noise caused by electromagnetic interference. This cable is recommended where extended high frequencies are important or long cable runs may be required.
Features
• Stable mechanical structure
Extremely flexible
Optimized for continuous use
Densely braided shield
Stable voltage reduction
Inner conductor made of 105 separate cores
Pure copper conductors
Technical Specifications
 Cable diameter: 6mm
 Applicable temperature: -20°C - +70°C
 Material: Flexible PVC
 Series: Microphone series

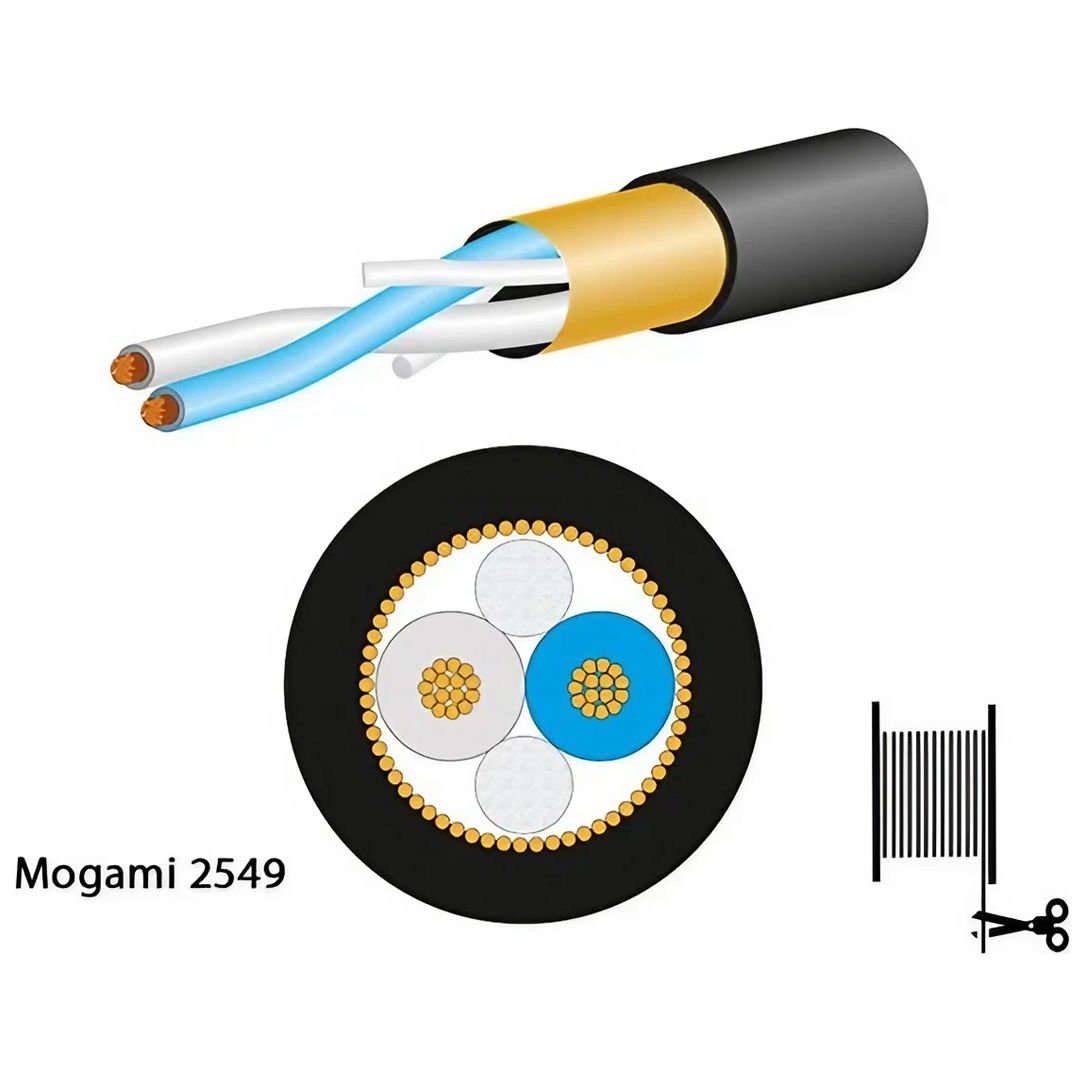

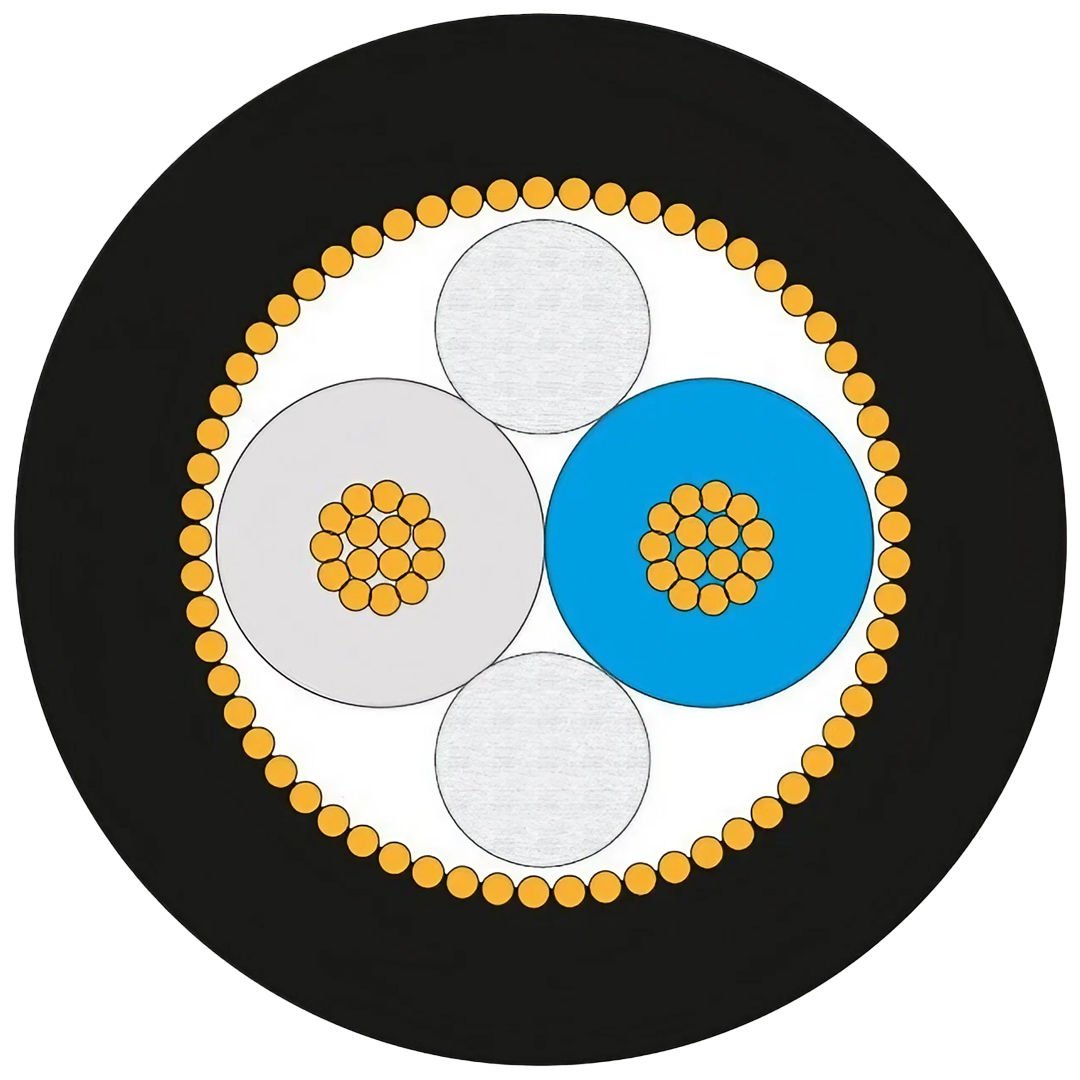

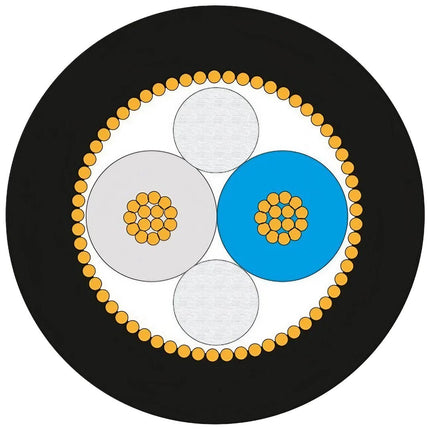

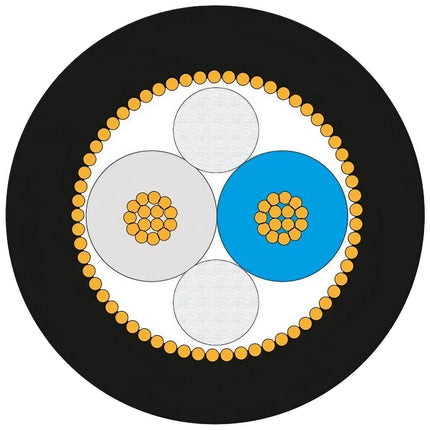

 Shield: Spiral Shield (62 x 0.18 A)
 Cable number: 2549
 Insulation: Ov. Diameter: 1.9 mm / Material: XLPE / Colors: blue/transparent
 DC resistance: Inner Conductor: 0.058 Ohm/m / Screen: 0.012 Ohm/m
 Capacitance (1 kHz, 20°C): Inner Conductor-Sheath: 76 pF/m / Conductor-Conductor: 11 pF/m
 Inner conductor: Details: 30 x 0.12 OFC / Size: 0.34 mm² (AWG22)
 Durability: 14,500 cycles
 Weight: 4.80 kg
